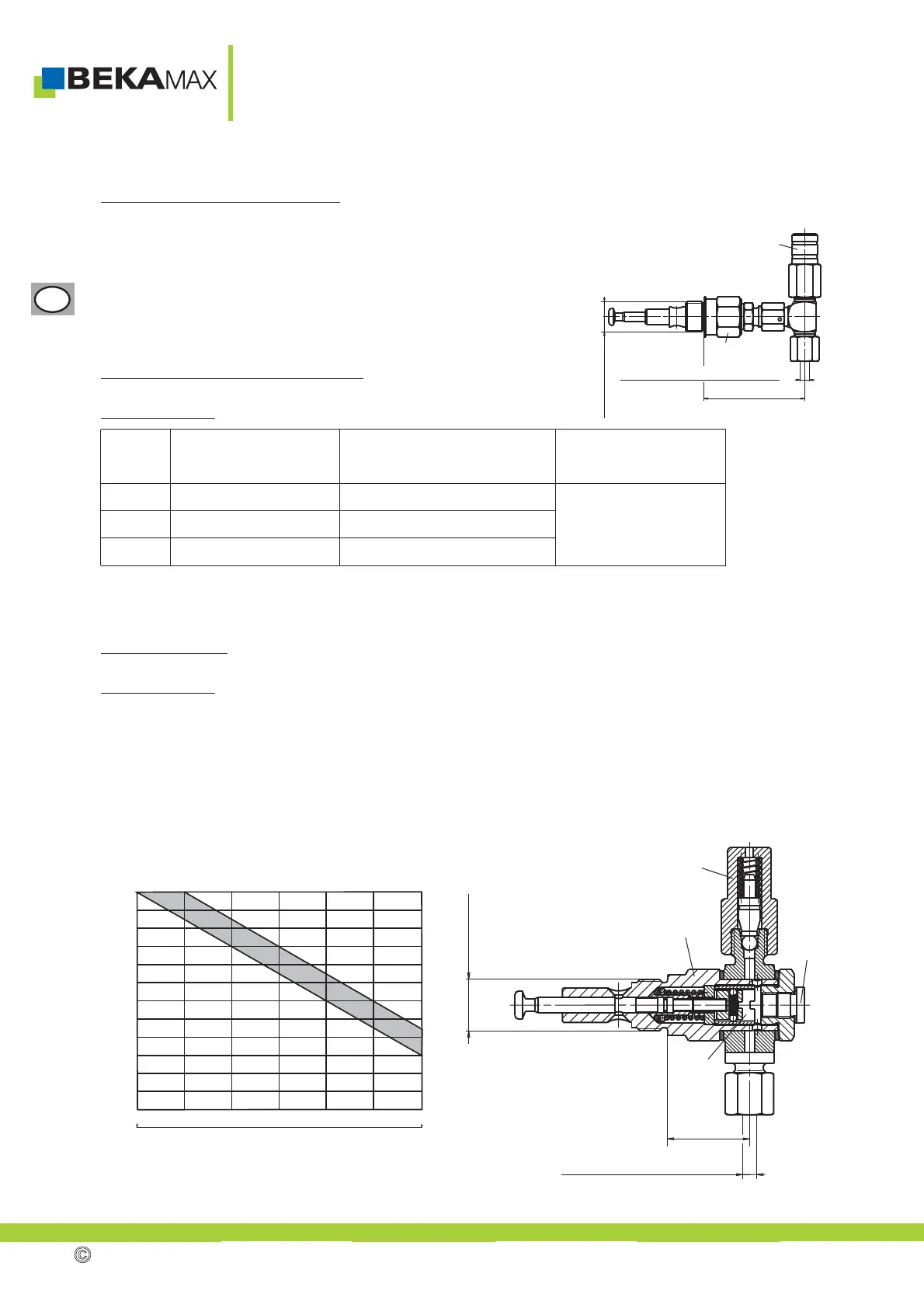

10. Pump elements:
There are different pump elements available for the installation
into a central lubrication pump EP-1 or FKGGM-EP. You cannot
adjust the output rate at the pump elements PE-60, PE-120 and
PE-170 but at the pump element PE-120 V this is possible.
10.1. PE-60, PE-120 and PE-170:
Technical data:
Delivery medium: Grease from NLGI-Kl. 00/000 to NLGI-Kl. 2
Piston return: positively controlled
10.2. PE-120 V:
Technical data:
Output rate: 0,04 to 0,12 cm /stroke. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Output rate regulation: 6 notches with 1/2 a revolution each. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reduction: 0,013 cm per notch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Delivery medium: grease from NLGI-Kl. 00/000 to NLGI-cl. 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Piston return: positively controlled. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Order-no. (incl. pressure relief valve): 2152.99063.0000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Order-no. pressure relief valve for PE-120 V: 2152 0063. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PE-120
PE-60
PE-170
0.12
0.06
0.17
Output rate
(cm / stroke or rev.)
3
2152 99061 0000
2152 99067 0000
2152 99069 0000
Order-no.
(incl. pressure relief valve)
Order-no.
Pressure relief valve
2152 0062
M 20 x 1 5.
Pressure relief valve
set at 280 bar
permanently
A/F 24
Pipe connection Ø 6
66
PE-60, PE-120, PE-170:
Pressure relief valve
set at 280 bar
permanently
A/F 24
Pipe connection Ø 6
M 20 x 1 5.
2
3
32
1
3 0.
0 12.
0 11.
0 10.
0 09.
0 08.
0 07.
0 06.
0 05.
0 04.
0 03.
0 02.
0 01.
0
2 0.2 5.
Output rate (cm³)
0
0 5.
1 5.
1
3
5
2
4
0
Notches
Revolutions
6
20
