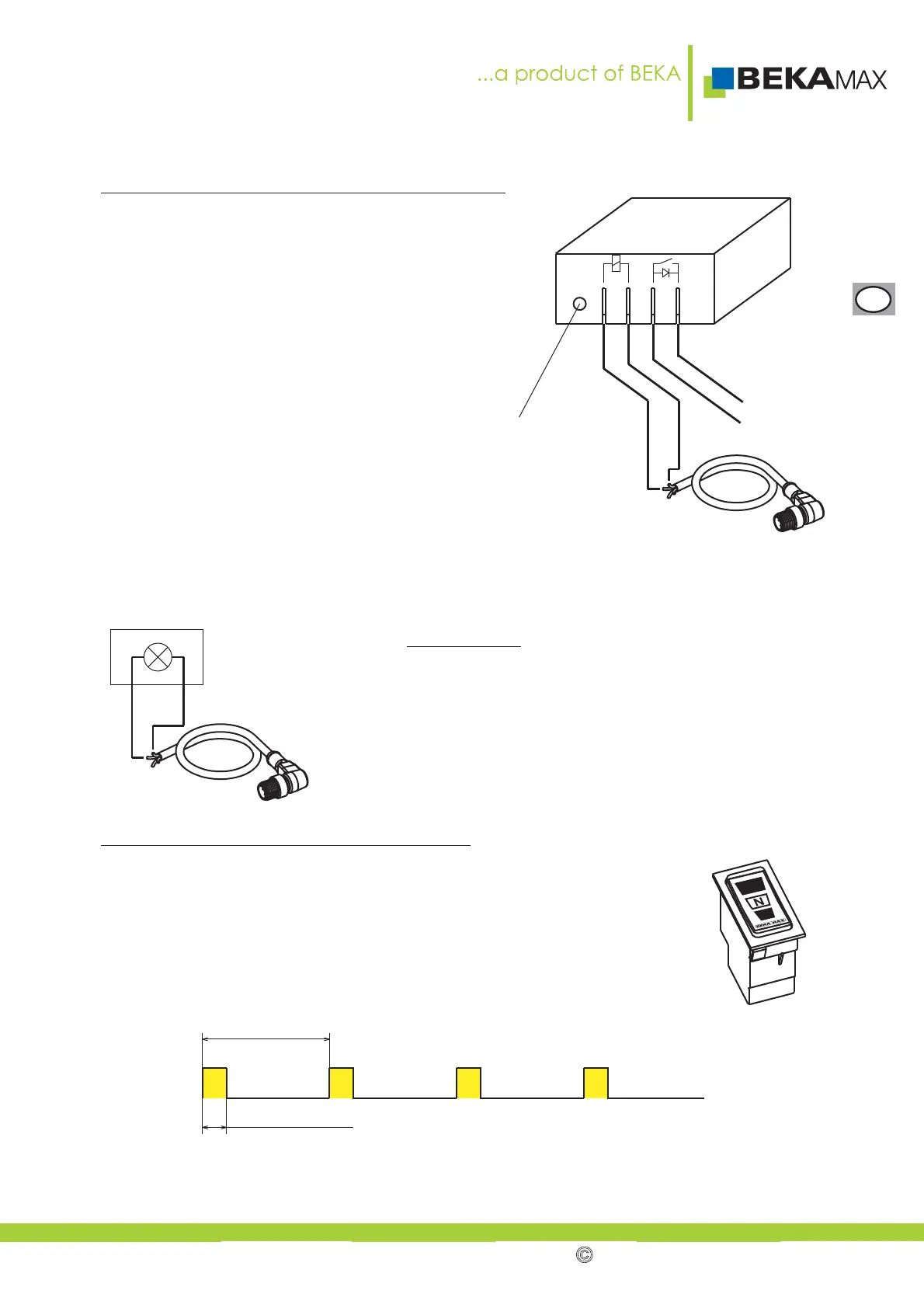

Starter release or collective fault signal at the EP-tronic:
A starter release or a collective fault signal can
optionally be connected to the EP-tronic control
unit.
The starter release prevents that the machine
continues operating as long as there is a
malfunction indicated by the control unit. In the
case of a level error can a movement be
blocked by an electronic signal, e.g.
After troubleshooting, you can push the button
for intermediate lubrication in order to delete
the error, the pump can continue operating and
starts its normal sequence of functions.
The collective fault signal enables to indicate all error messages via a connected lamp or horn,
e.g. The lamp or the horn generate a permanent signal (permanent glowing or tone) as long as
the indicated malfunction exists. The indication is stopped automatically when the malfunction
has been remedied.
Adaption to the application conditions at EP-tronic:
For the EP-tronic control unit, there is the possibility to carry out an adaption to
the application conditions. To this purpose is a switch with three notches
installed into the driver’s cabin of the vehicle or into the machine. You can select
between “normal, light or heavy duty” adjustment.
The adjustment “normal” is the standard setting, cycle time is effected as
adjusted.
Lubrication time
Cycle time 100 %
e. g. 2 h
black
+
-
blue
External lamp
Technical data:
Voltage: 12/24 V DC
Output current: max. 0 5A.
LED green
ON: everything OK
OFF: malfunction
GND
ON
+6...30V OUT IN
black
blue
- (ground)
+U
b
27
