1. Reservoir
2. Baffle
8.
9.
3. Scupper Drain
10.
4. Quick Disconnects 11.
5. Pump
12.
6. Check Valve
13.
7. Filter
Filter Bypass Valve
Relief Valve
Solenoid Valve
Pressure Switch
Servo Actuator, Cyclic
Servo Actuator,
Collective
TM 55-1520-228-BD
HYDRAULIC

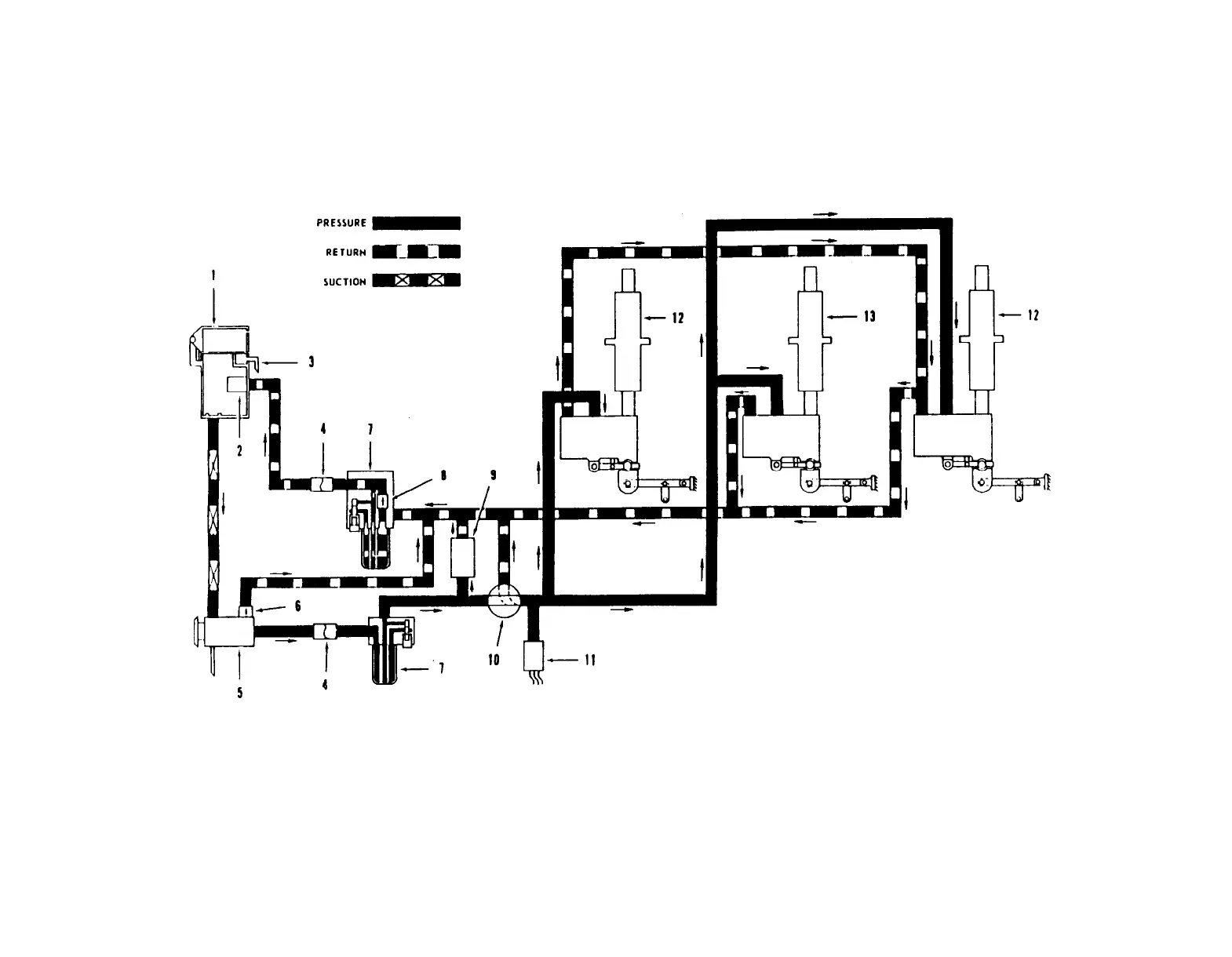

Figure 9-2. Hydraulic System Schematic
9-3
