Bell OH-58A - Page 215

TM 55-1520-228-BD
ELECTRICAL AND AVIONICS SYSTEM
DRAWING
PART
DESIGNATION
NUMBER
FUNCTION
K6
MS24183D1
Relay, BATTERY
K1
MS24183D1
Relay, External Pwr
K11
3S2791G200F-9
Relay, Gen Fail
K12
MS24183D1
Relay, Line Cont
K3
MS24183D1
Relay, Non-Ess Bus
BT1
BB-4761A
Battery

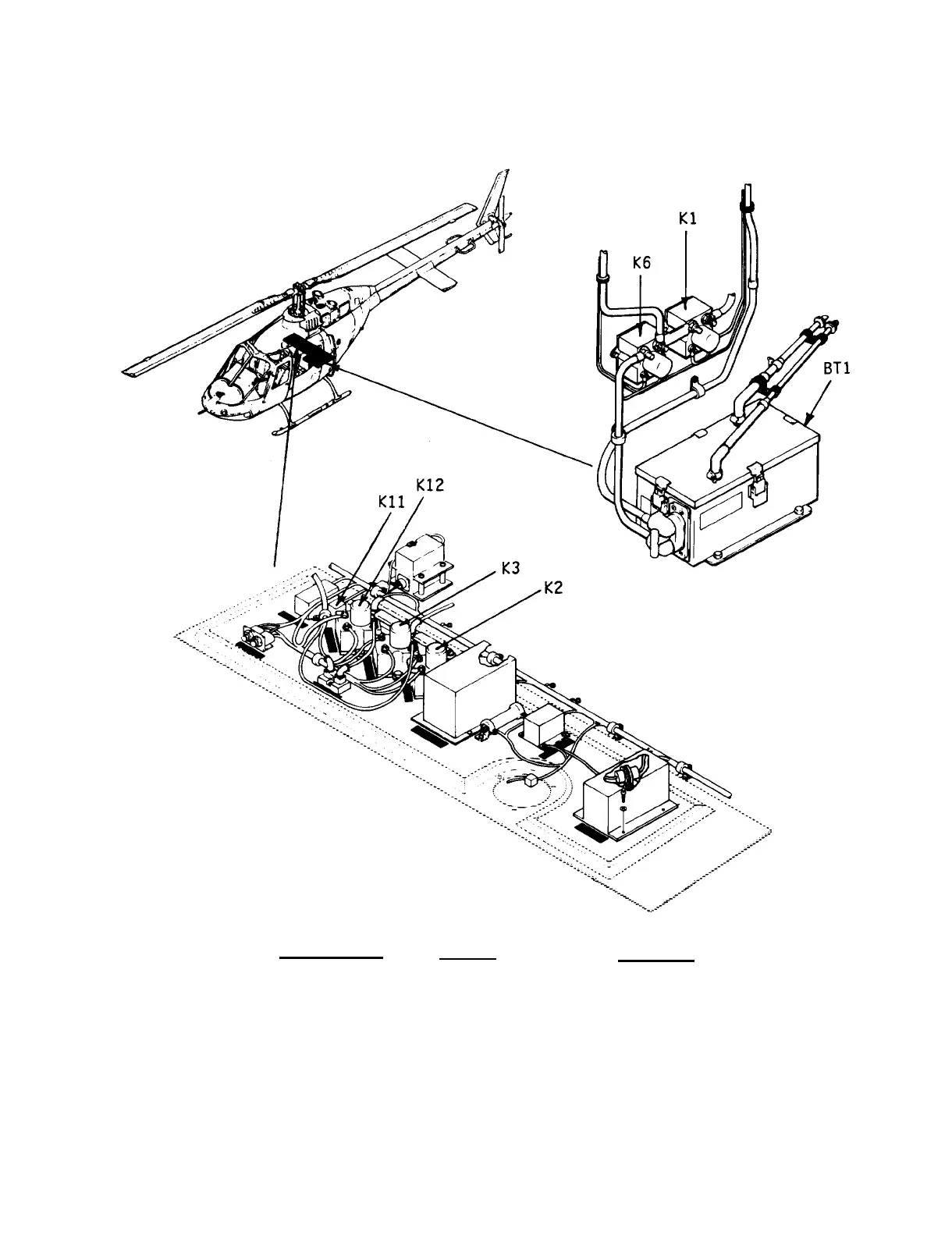

Figure 11-42.
Location of Power Relays
11-43
