Bell OH-58A - Page 307

TM 55-1520-228-BD
APPENDIX F
DRAWING PART
DESIGNATION
NUMBER
FUNCTION
2
3
4
5
6
7
8
9
10
AS-2892/APR-39(V)
IP-1150()/APR-39
AS-2891/APR-39(V)
AS-2892/APR-39(V)
R-1838()/APR-39
AS-2890/APR-39(V)
CM-440/APR-39(V)
C-9326/APR-39(V)
AS-2891/APR-39(V)
R-1838()/APR-39(V)
Antenna, Left Spiral
Indicator, Radar Signal
Antenna, Right Spiral
Antenna, Left Spiral
Receiver, Radar
Antenna
Comparator
Control, Detecting Signal
Antenna, Right Spiral
Receiver, Radar

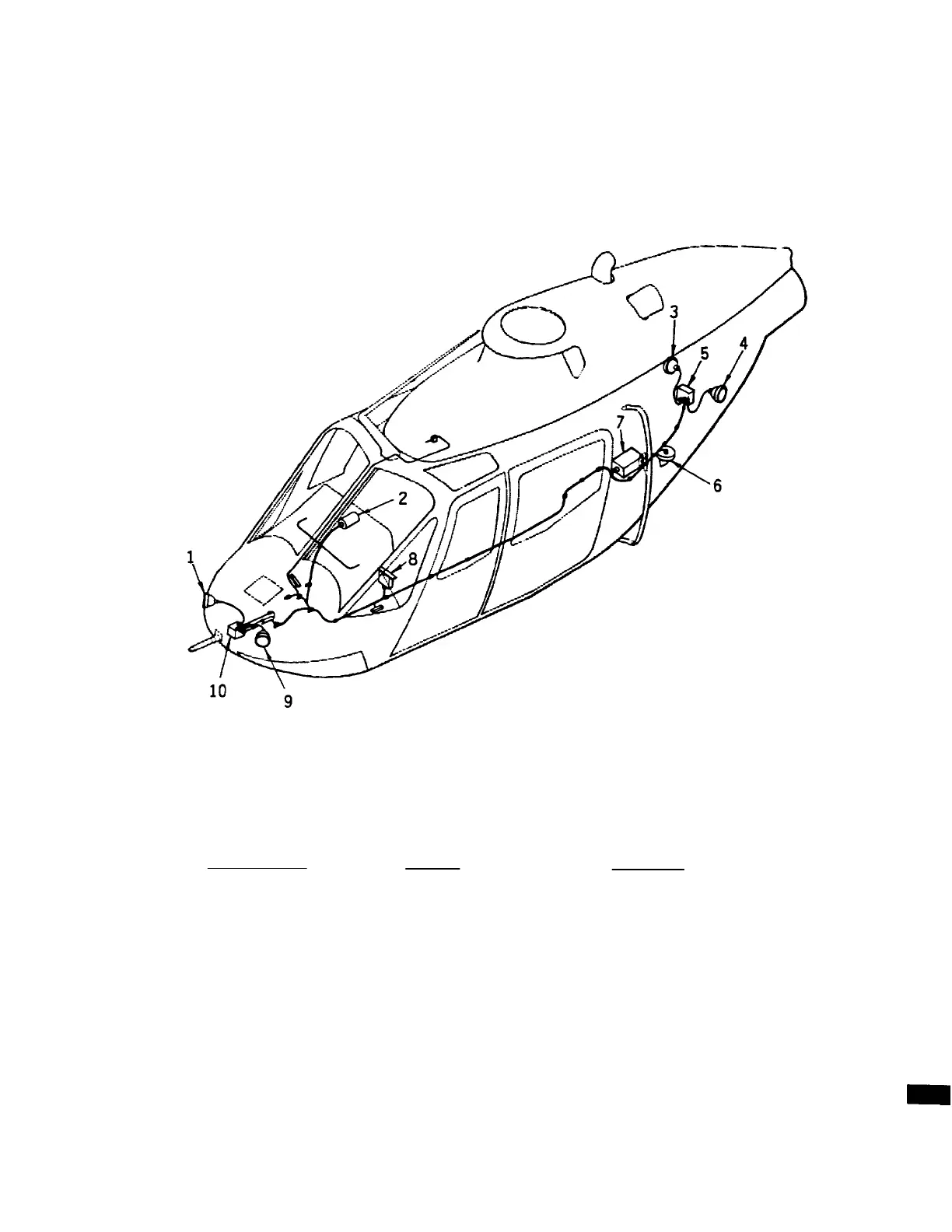

Figure F-10.
Radar Warning System AN/APR-39
F-21
1
