Device description
4.1 Device structure
5290 / 06/2023 en BENNING PV 1-1+ 17

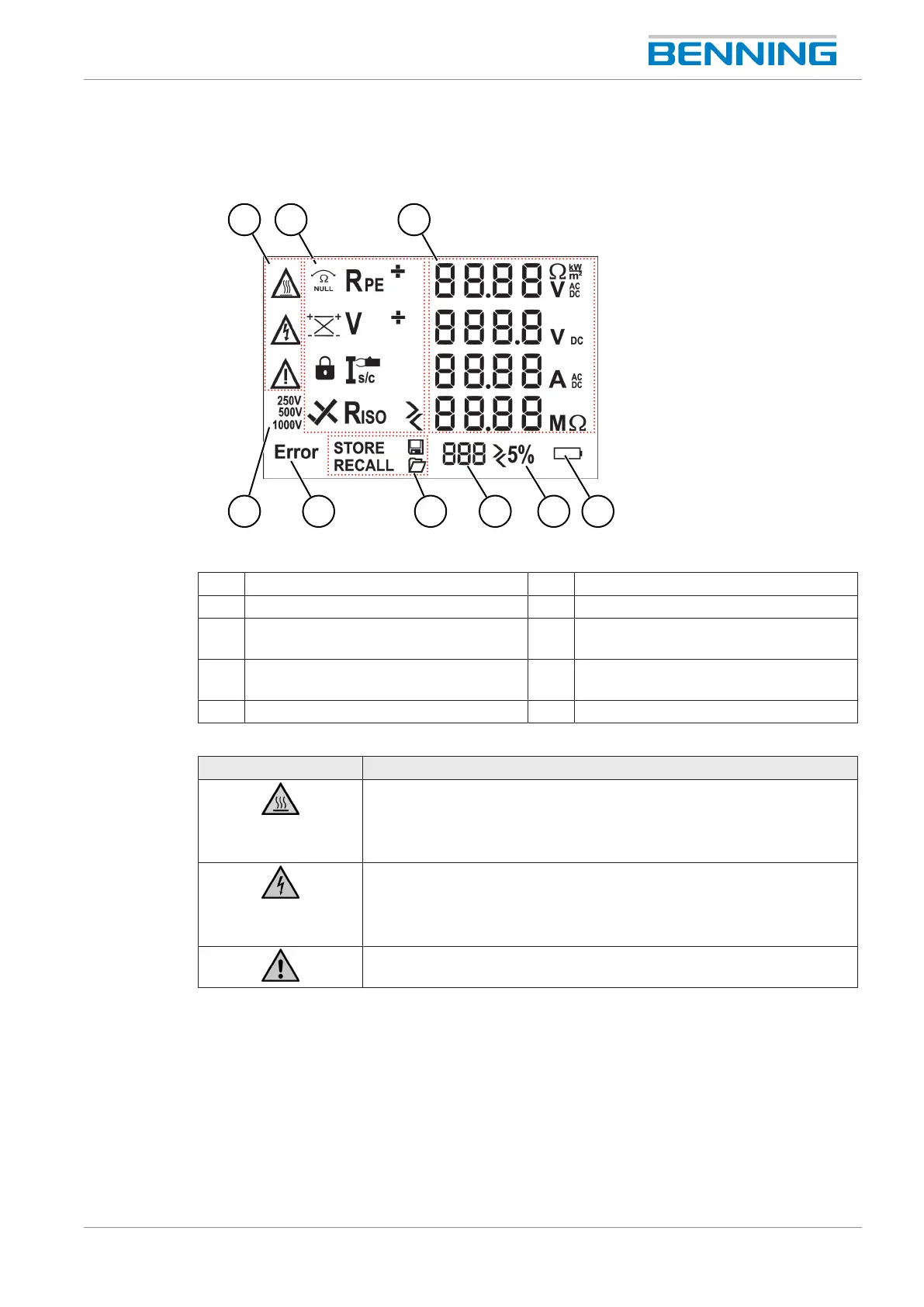

Digital display
The digital display is divided into different sections:
1 2
3
4
5
7
8
9 6
Figure2: Digital display
1 Warning symbols 2 Display of measuring functions
3 Display of measured values and units 4 Battery status
5 U/Ideviation 6 Storage location of the measurement in
the measured value memory
7 Display of memory functions 8 Indication that there is an error
message
9 Insulation test voltage
Description of symbols (warnings):
Symbol Meaning
Warning of hot surfaces!
Immediately disconnect the device from the PVgenerator when the
symbol is displayed and do not reconnect it until the symbol has
disappeared.
Warning of dangerous voltage!
High-voltage control indicator: Flashes when the device detects the
presence of a dangerous voltage on the PV safety measuring lines
(>30V).
Please observe the information provided in this operating manual in
order to avoid dangers [}page24].
Table4: Symbols (warnings) on the digital display
