6.4 Replacing the batteries
The device is powered by batteries. Replace the batteries as soon as they are discharged.
Requirements
• Discharged batteries inside the device (the battery symbol on the digital display is shown
permanently)
• 6new 1.5V mignon batteries (AA)
• Voltage-free device [}page38]
• Suitable slotted screwdriver
1 2
3
4

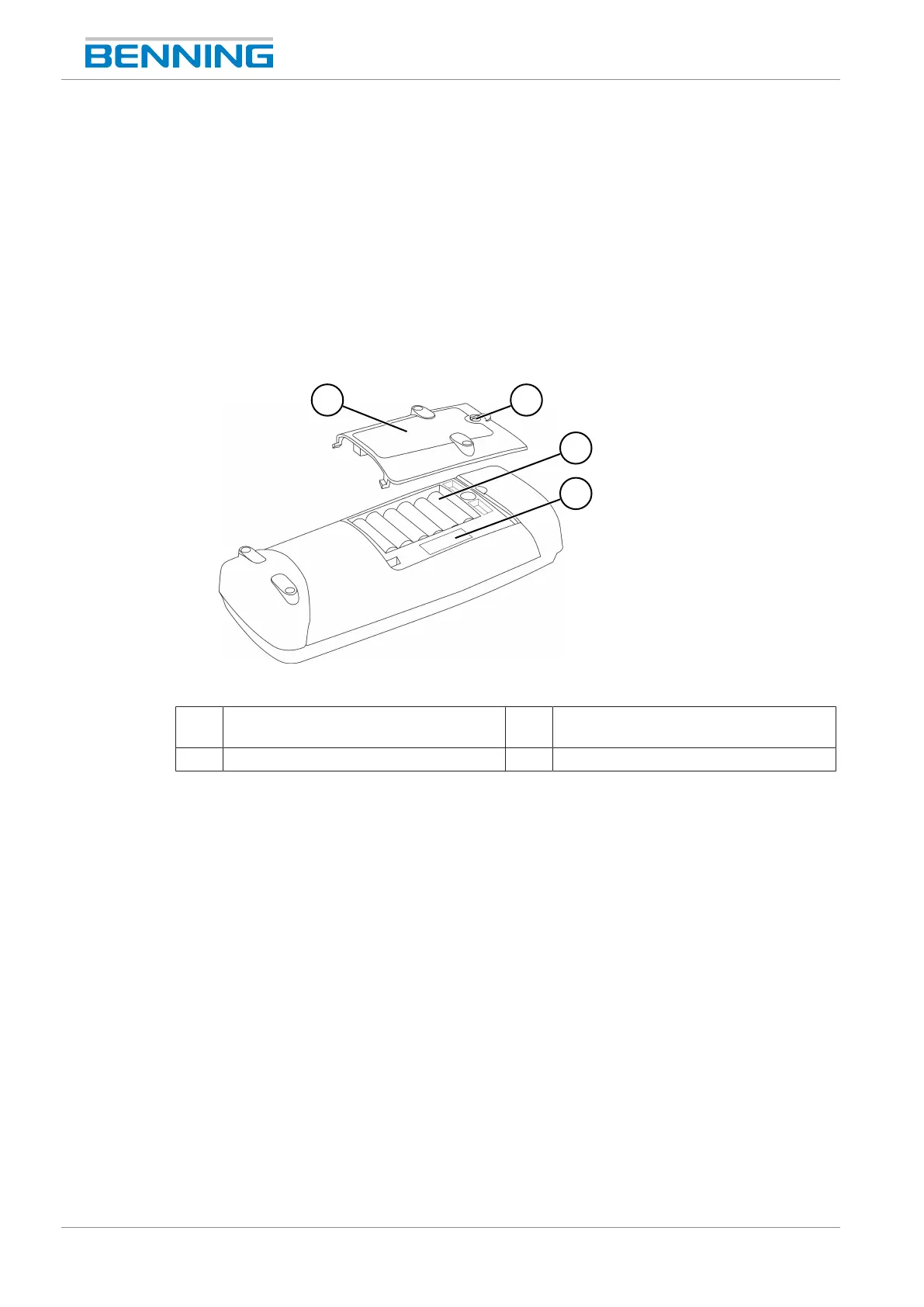

Figure10: Battery replacement (exemplary)
1 Battery compartment cover 2 Slotted screw for opening the battery
compartment cover
3 Batteries 4 Fuse
Procedure
1. Place the device face down (onto an anti-slip surface).
2. Unscrew the screw of the battery compartment cover.
3. Lift the battery compartment cover off the device.
4. Remove the discharged batteries from the battery compartment and dispose of them
properly [}page44].
5. Insert the new batteries into the battery compartment observing the correct polarity.
6. Place the battery compartment cover back onto the device and tighten the screw.
