5.6 DC and AC voltage measurement
Operation
5290 / 06/2023 enBENNING PV 1-1+32
5.6 DC and AC voltage measurement
You can measure DCvoltage and ACvoltage via the 4mm safety measuring lines.
Requirements
• Please observe the requirements for measuring [}page24].
• Approved safety measuring lines
• Corresponding measuring ranges [}page22]

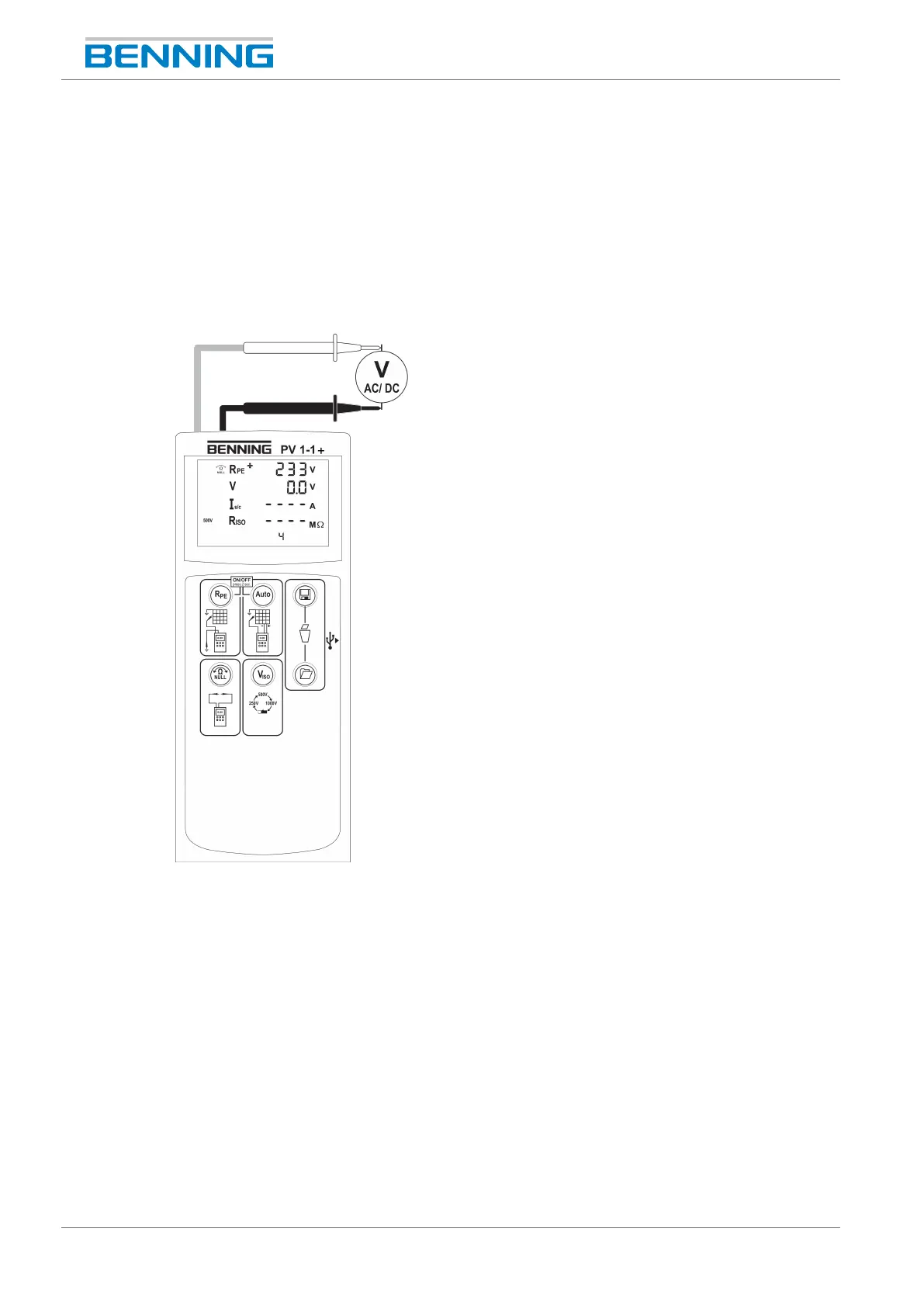

Figure6: DC and AC voltage measurement
Procedure
1. Connect the 4mm safety measuring lines to the device [}page25].
2. Bring the 4mm safety measuring lines into contact with the measuring points and read the
measured value on the digital display.
3. Press the “Save”key to store the measured value to the next free storage location available.
