BenQ W1300 - Projector Exterior View

Projector features 9

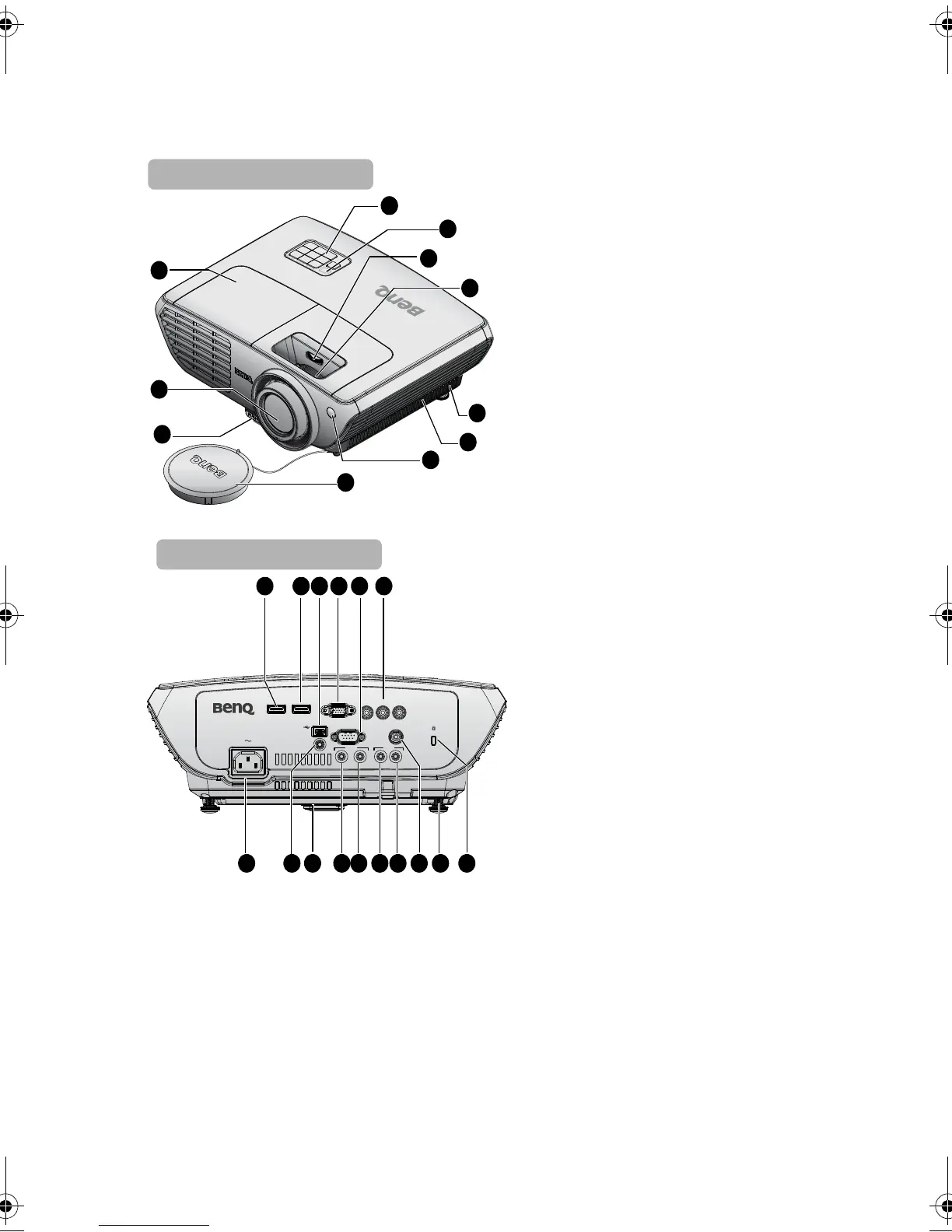

Projector exterior view
1. Lamp compartment cover
2. Projection lens
3. Quick-release button
4. External control panel
(See "Projector" on page 11 for
details.)
5. Top IR remote sensor
6. Lens Shift
7. Focus ring and Zoom ring
8. Audio speaker
9. Vent (cool air intake)
10. Front IR remote sensor
11. Lens cap & string
12. HDMI 1 input jack
13. HDMI 2 input jack
14. USB Mini B input jack
15. COMPUTER PC input jack
16. RS-232 control port
17. COMPONENT input jacks
18. Kensington anti-theft lock slot
19. Rear adjuster foot
20. VIDEO input jack
21. AUDIO input jack (R)
22. AUDIO input jack (L)
23. AUDIO input jack
24. AUDIO output jack
25. Quick-release foot
26. 12 V TRIGGER out jack
27. AC power cord inlet
