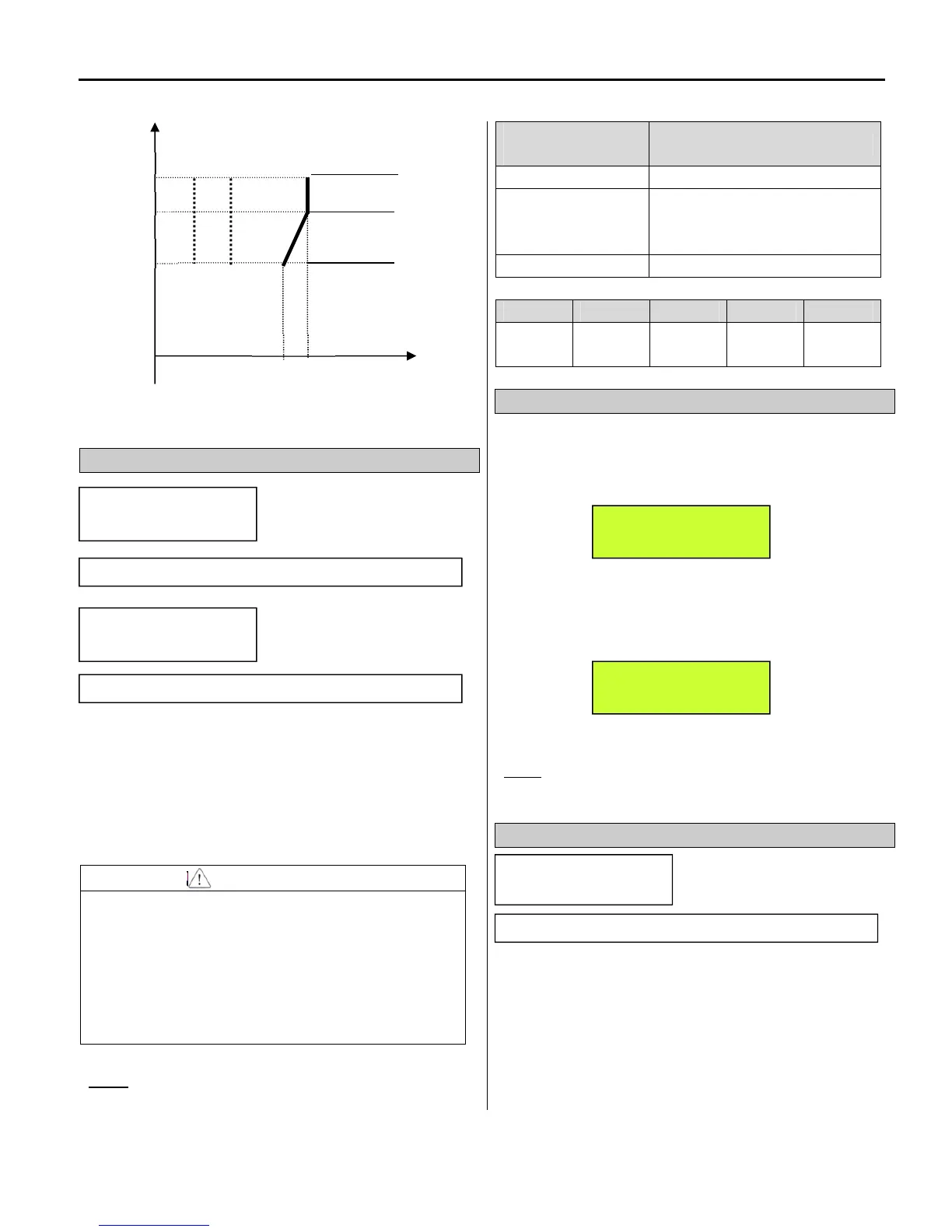

Chapter 6 - Parameter Description [FUN]
6-17
FUN-51~52: Energy Save, Energy Save Level
This function is used to reduce the output voltage in
applications that do not require high torque and current
when running at steady speed. The drive will reduce its
output voltage after accelerating to the reference
frequency (steady speed) if the energy save level is set
at a non-zero value.
CAUTION
This function may cause over-current trips to
occur due to the lack of output torque when used
on a fluctuating load. If the manual energy saver
value is reduced too much, the applied motor
voltage may be too low for correct motor
operation and motor stalling and/or overheating
may result.
Note: When Energy Save is ON, it may take longer
to decelerate to a stop.
FUN-51
Setting Range
Description
None Disabled (Factory setting)
Manual
Energy save ON by decreasing
the output with the value set in
FUN-52.
Auto Energy save ON automatically.
Param LCD Name Default Range
FUN-52
Manual
Save %
Energy
save %
0 [%]
0~30
[%]
FUN-54: Integrating Wattmeter
This parameter displays both MWh and kWh.
Ex) 1500kWh
Max Cumulative value is displayed in FUN-54 as
shown below.
Ex) 9,999,999.9 kWH (maximum reading)
Press [PROG] key for 5 sec to reset the value stored in
FUN-54.
Note: FUN-54 values may differ from the actual values
slightly due to measurement tolerance issues.
FUN-55: Inverter temperature
The power section’s temperature (in Celsius) is
displayed in FUN-55.
85 %
100 %
Output V
Input voltage
Motor rated V
[FUN-50]
100%
85%
110%
85%
FUN
►
Manual save%
52 0 %
Factory Default: 0 %
FUN
►
Energy save
51 None
Factory Default: 0
FUN
►
Inv. Temp
55 44
Factory Default: 44
FUN
► Kilowatts
54 9999M999.9KWh
FUN
► Kilowatts
54 1M 500.0KWh
