BENSHAW RSi SG Series User Manual

Chapter 6 - Parameter Description [AFN]
6-25
6.3 AdvancedFunctionGroup[AFN]
AFN-00: Jump to Desired Parameter
Jumping directly to any parameter can be accomplished
by programming the desired parameter number.
AFN-01: Last trip 1
AFN-02: Last trip 2
AFN-03: Last trip 3
AFN-04: Last trip 4
AFN-05: Last trip 5
AFN-06: Erase Trips
□
□
□
These parameters display the past five faults of the
drive. AFN-01 is the most recent fault. Use the
PROG,
▲ and ▼ keys to check the fault log content.
Output frequency, output current, drive temperature,
DC Link Voltage and the mode of operation when the
fault occurred, are displayed. Press the ENTER key to
exit. AFN-83 [Last Trip Time] is the elapsed time after
the last trip.
Note: Faults such as WDOG error, EEP error, and
ADC Offset, HW-Diag are not resettable. Repair
the fault before turning on the power.
This function erases all fault histories of AFN-01 to
AFN-05 from memory.
However, AFN-83 [Last Trip Time] cannot be reset.
AFN-07: Dwell Time
AFN-08: Dwell Frequency
When a run command is initiated, the drive will ramp
to the dwell frequency and remain there for the dwell
time.
Note: If the dwell time is set at ‘0’, this function is
not available.
Note: Do not set the Dwell frequency above the
frequency command. Otherwise, it may lead to
incorrect operation.
Note: This function is disabled when operating in
Sensorless control mode.

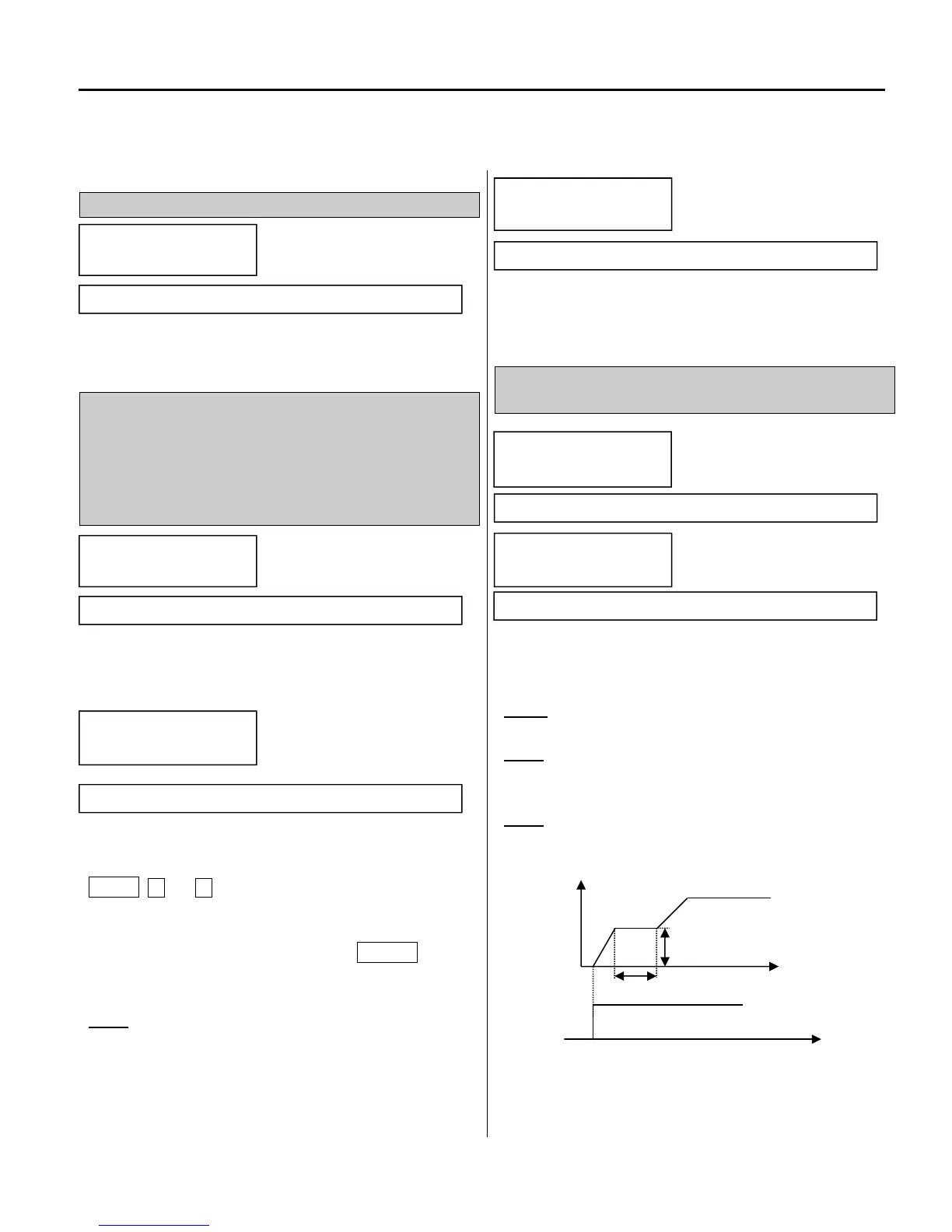

Dwell Function
AFN ► Jump code
00 1
Factory Default: 1
AFN ► Last trip-1
01 None
Factory Default: None
AFN ► Last trip-5
05 None
Factory Default: None
AFN ►
E
rase trips
06 --- No ---
Factory Default: No
AFN ► Dwell freq
08 5.00 Hz
Factory Default: 5.00 Hz
AFN ► Dwell time
07 0.0 sec
Factory Default: 0.0 sec
AFN-07
AFN-08
Time
RUN
Output freq.
