BENSHAW RSi SG Series User Manual

4-1
Chapter4. Operation
4.1 KeypadProgramming
4.1.1 LCDKeypad

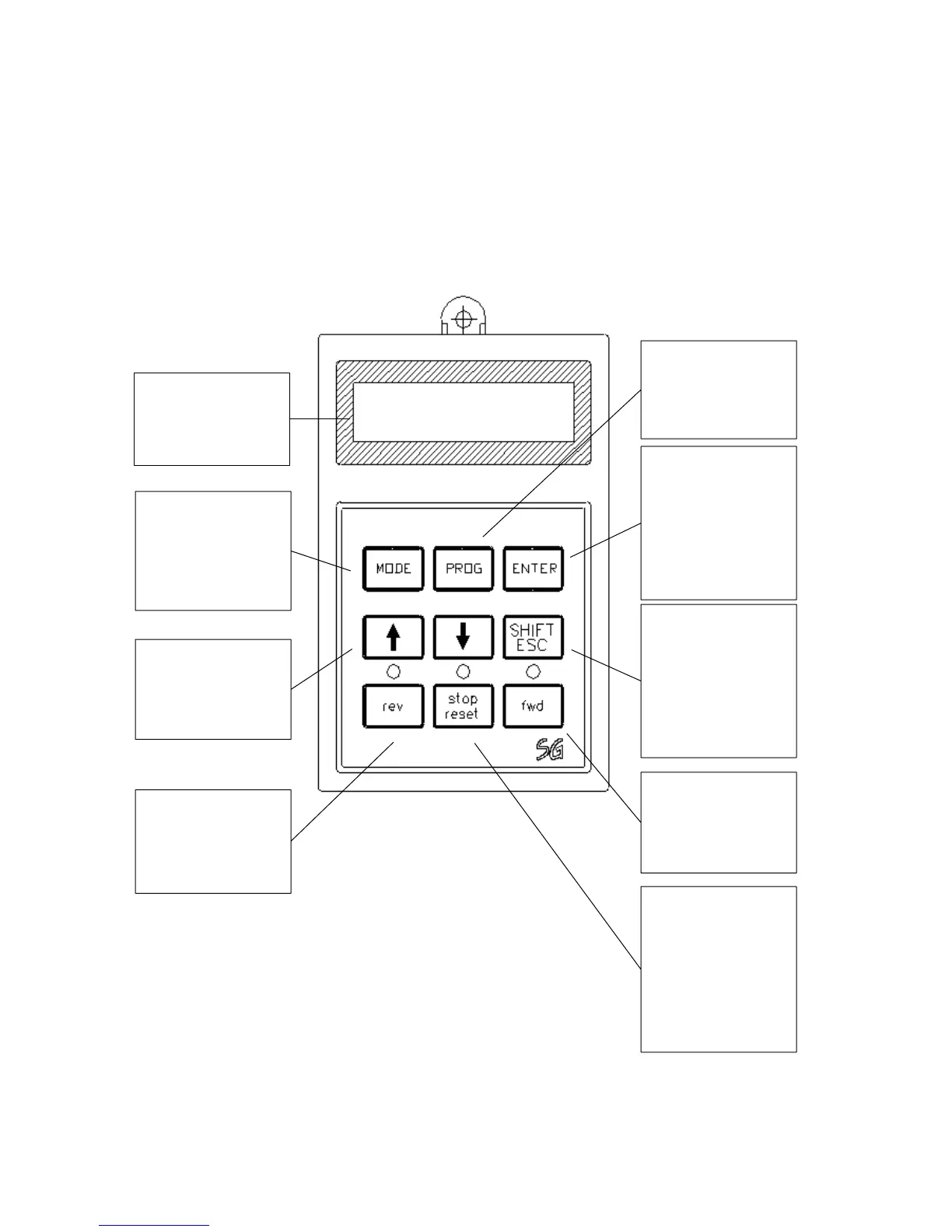

The RSi SG drive LCD keypad can display up to 32 alphanumeric characters. Drive status can be checked directly
from the display and parameter values can be adjusted. The following is an illustration of the keypad.
32 character, background
light, LCD display. The
background tone is
adjustable.
The Mode Button moves
you forward through the
seven parameter groups:
DRV [Mode] 
FUN [ENT]DRV
The Up and Down
Arrows are used to move
through and change data.
Reverse Run Button
The Reverse Run LED
blinks when the drive
Accels or Decels.
The Program Button is
used to go into
programming mode to
change data.
The Enter Button is used
to enter changed data
within a parameter.
The Enter Button also
moves you reverse
through the groups:
DRV [ENT] APP
[ENT]  I/O
[SHIFT] This button is
used to move cursor
across display in
programming mode.
[ESC] This button is used
to move the program
code to DRV 00 from any
program code.
Forward Run Button
The Forward Run LED
blinks when the drive
Accels or Decels.
Stop Button is used to
stop the drive from
running and is always
active regardless of
control settings.
Reset Button is used to
reset Faults.
LED blinks when there is
a fault.
