BENSHAW RSi SG Series User Manual

Chapter 2 – Drive Ratings and Specification
2-7

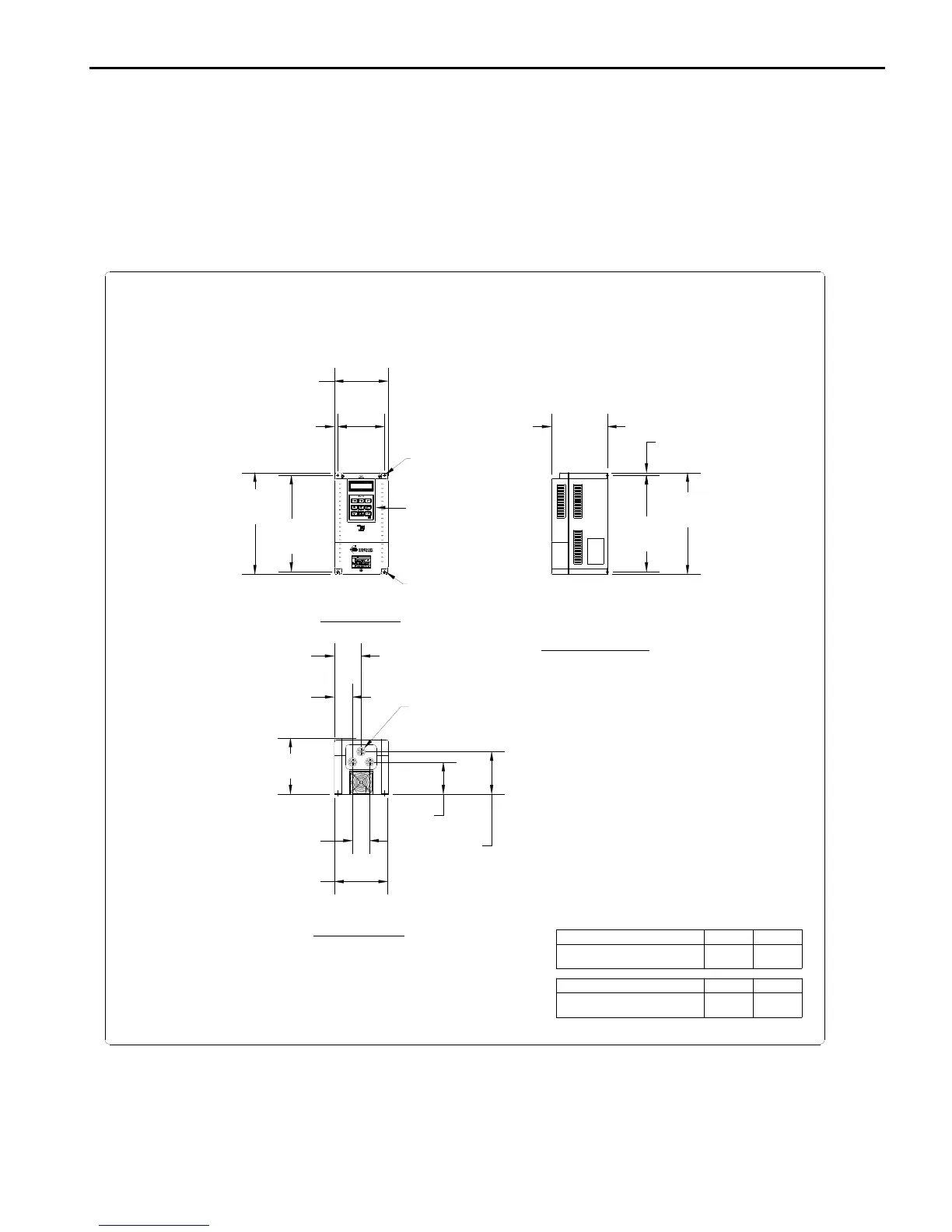

2.9 Dimensions
1) 7.5HP,230V
7.5HP,460V
BOTTOM VIEW
2.95
[75.01]
6.16
[156.49]
RIGHT SIDE VIEW
10.59
[269.01]
6.16
[156.49]
11.18
[284.00]
5.91
[150.01]
FRONT VIEW
10.59
[269.01]
11.18
[284.00]
VFD-RSI-007-SG-2B
VFD-RSI-007-SG-4B
PART NUMBER
PART NUMBER
460
VOLTS HP
7.5
230
VOLTS
HP
7.5
4.67
[118.49]
3.50
[89.00]
2.01
[51.00]
1.89
[48.01]
5.83
[148.01]
0.98 DIA.
KNOCKOUT HOLES
(3 PLACES)
0.71 DIA.
MTG. HOLES
(2 PLACES)
0.24 DIA.
MTG. HOLES
(2 PLACES)
REMOVABLE SG
LCD KEYPAD
Risk of Electric Shock
VARIABLE FREQUENCY DRIVE
WARNING
Risk of Electric Shock
Risk of Injury or Electric Shock
5.12
[130.00]
0.39
[10.01]
0.30
[7.49]
