BENSHAW RSi SG Series User Manual

Chapter 6 - Parameter Description [FUN]
6-21

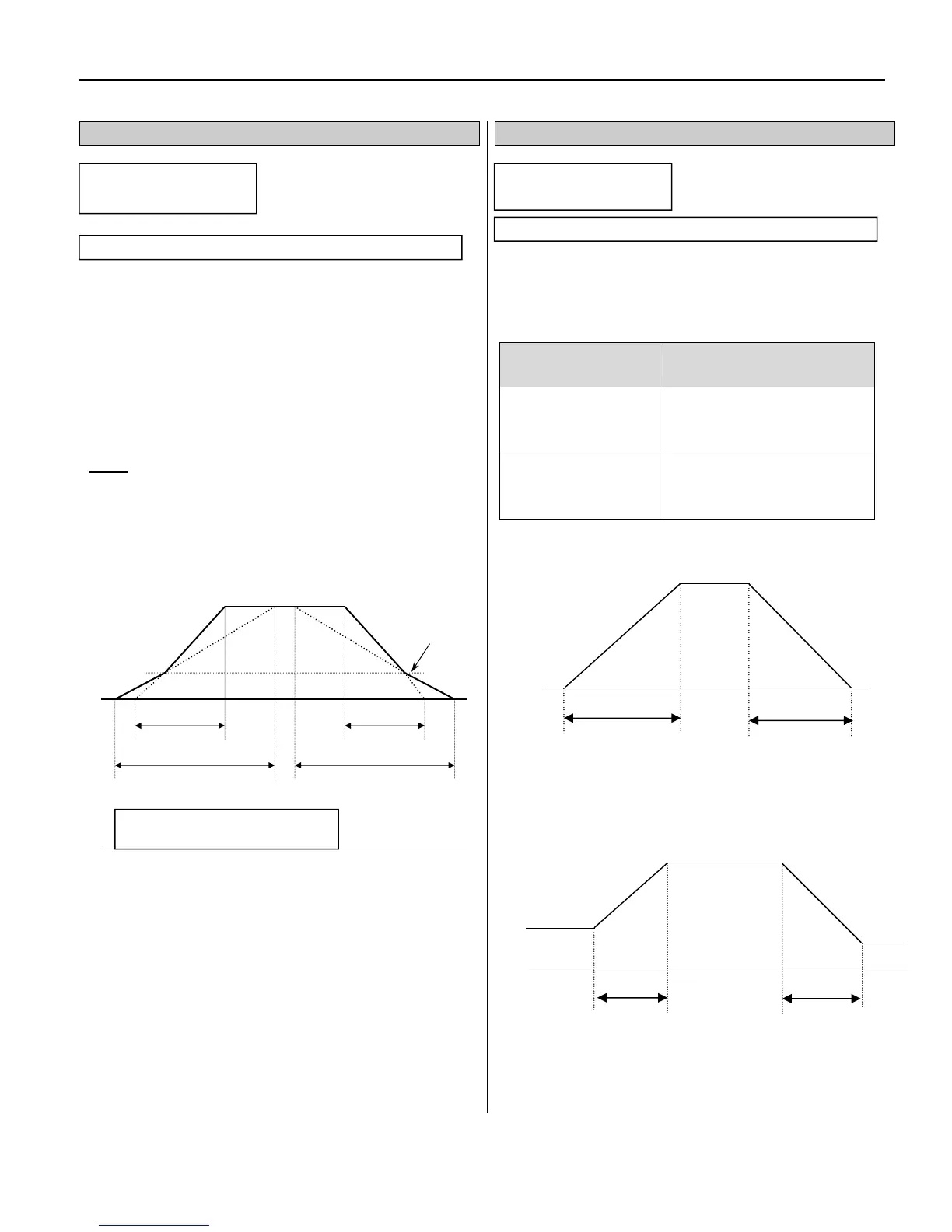

FUN-72: Accel/Decel Change Frequency
This function is used to change Accel/Decel ramps at a
certain frequency. The drive will ramp the speed to
FUN-72 using I/O-50 (Acceleration Time1). At that
point it will switch to DRV-01 (Acceleration Time).
Likewise, upon deceleration, the drive will use DRV-
02 (Deceleration Time) until the drive reaches FUN-72,
where it will switch to I/O-51 (Deceleration Time 1).
Note: If Accel/Decel change frequency is set and
‘XCEL-L’, XCEL-M’, and XCEL-H’ defined in
multi-function terminals are ON, Multi Accel/Decel
operation has the priority.
Accel/Decel Change Operation
FUN-73: Reference Frequency for Accel/Decel
This parameter determines the reference for the Accel /
Decel times. For most applications, the Max freq.
setting is appropriate.
LCD
Setting Range
Description
Max freq
The Accel/Decel time is the time
that takes to reach the maximum
frequency from 0 Hz.
Delta freq
The Accel/Decel time is the time
that takes to reach a target
frequency from any frequency.
FUN-73: Max. Freq
FUN-73: Delta Freq
FUN ► Acc/Dec ch F
72 0.00 Hz
Factory Default: 0.00 Hz
Output Frequency
FX
Max. Frequency
Accel/Decel
Change
Frequency
DRV-01 [AccTime0] DRV-02 [DecTime0]
I/O-50 [Acc Time1] I/O-51 [Dec Time1]
FUN ► Acc/Dec freq
73 Max
Factory Default: Max
Certain freq
Accel time
Decel time
Next target freq
Output freq
Accel time
Decel time
Max freq
