BENSHAW RSi SG Series User Manual

Chapter 6 – Parameter Description [APP]
6-65

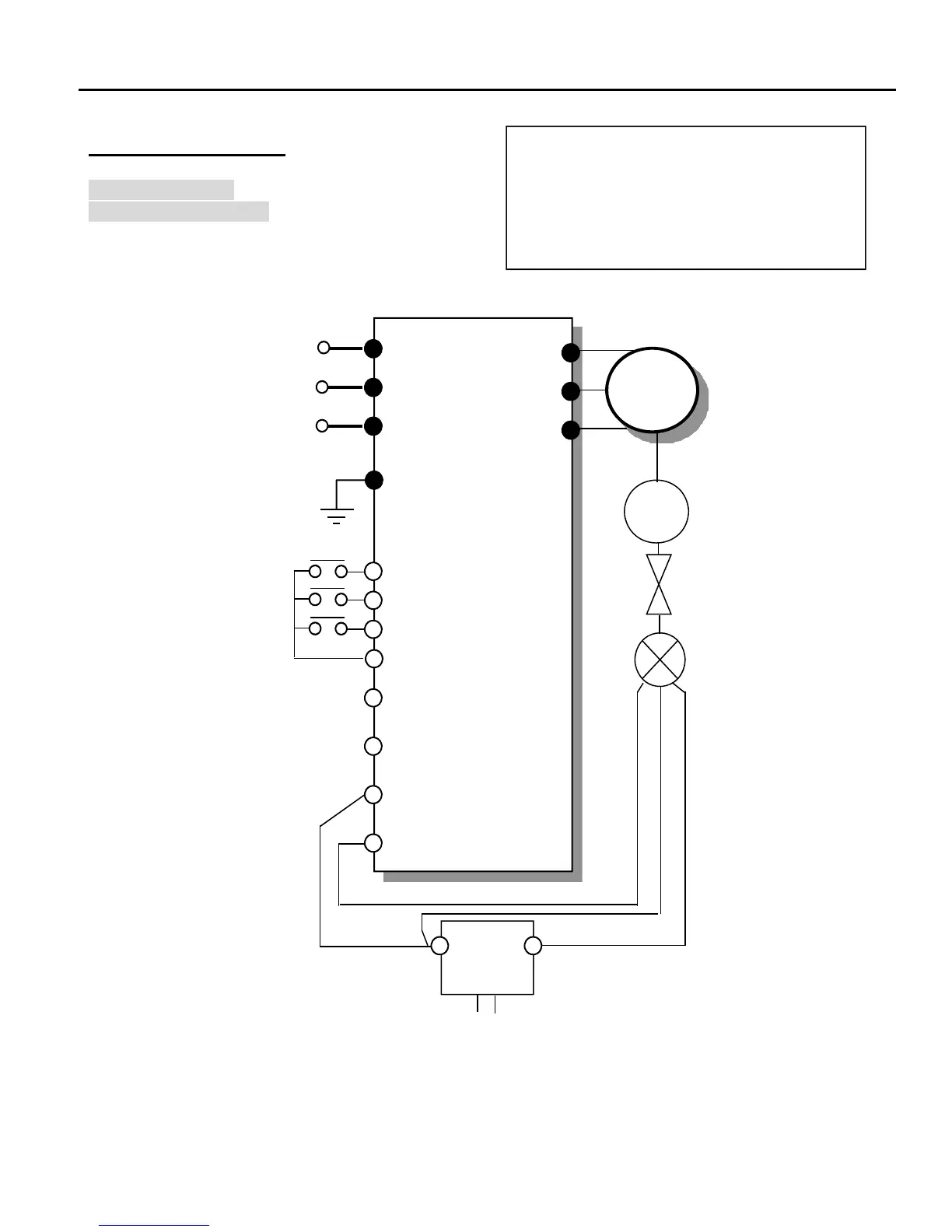

PID Wiring Example
Keypad as Set point
Feed Back as I (4-20mA)
Power
Supply
PUMP
PID Control
Selection
U
V
W
R(L1)
S(L2)
T(L3)
M7 FWD Run/Stop
M8 REV Run/Stop
M1
(
Settin
g
: O
p
en-loo
p)
CM Common Terminal
IM
V+
V1
I
Feed back Reference
5G V+, V1, I Common
24V
Power
Supply
User supplied DC Power
(OUT)
(COM) (24V)
Feedback (4~20mA)
DRV-04 Keypad
DRV-00 Set Point (program)
APP-06 I (4-20mA) Feedback
I/O-26 FX (M7 Fwd Run/Stop)
I/O-27 RX (M8 as Rev Run/Stop)
I/O-20 Open Loop (M1 to disable PI Control)
G
