BENSHAW RSi SG Series User Manual

Chapter 2 – Drive Ratings and Specification
2-16

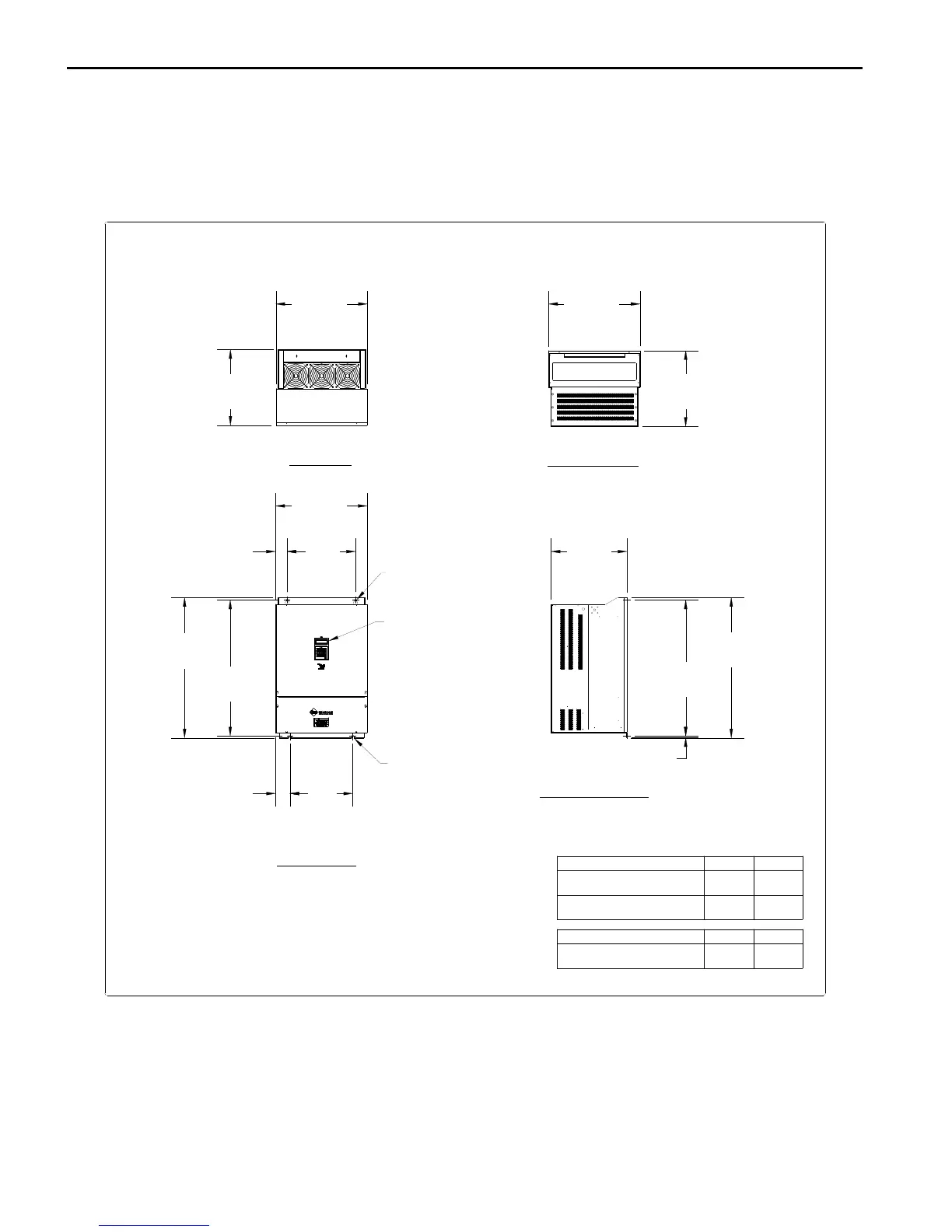

10) 150HP~200HP,460V
150HP,600V
RIGHT SIDE VIEW
FRONT VIEW
BOTTOM VIEW
TOP VIEW
15.00
[381.08]
20.08
[510.03]
30.85
[783.59]
29.88
[759.00]
30.85
[783.59]
16.64
[422.61]
20.08
[510.03]
20.08
[510.03]
29.88
[759.00]
16.64
[422.63]
16.64
[422.61]
13.78
[350.01]
460
460
VOLTS
VOLTS
600
VFD-RSI-150-SG-4
VFD-RSI-200-SG-4
PART NUMBER
VFD-RSI-150-SG-6
PART NUMBER
150
150
HP
200
HP
0.43 DIA.
MTG. HOLES
(2 PLACES)
REMOVABLE SG
LCD KEYPAD
0.43 DIA.
MTG. HOLES
(2 PLACES)
3.13
[79.50]
2.55
[64.77]
0.34
[8.61]
VARIABL E FREQ UENCY DRIVEVARIABL E FREQ UENCY DRIVE
WARNINGWARNING
VARIABL E FREQ UENCY DRIVEVARIABL E FREQ UENCY DRIVE
WARNINGWARNING
