Sewing preparation
21
2020-02 EN 5020077.20A.04

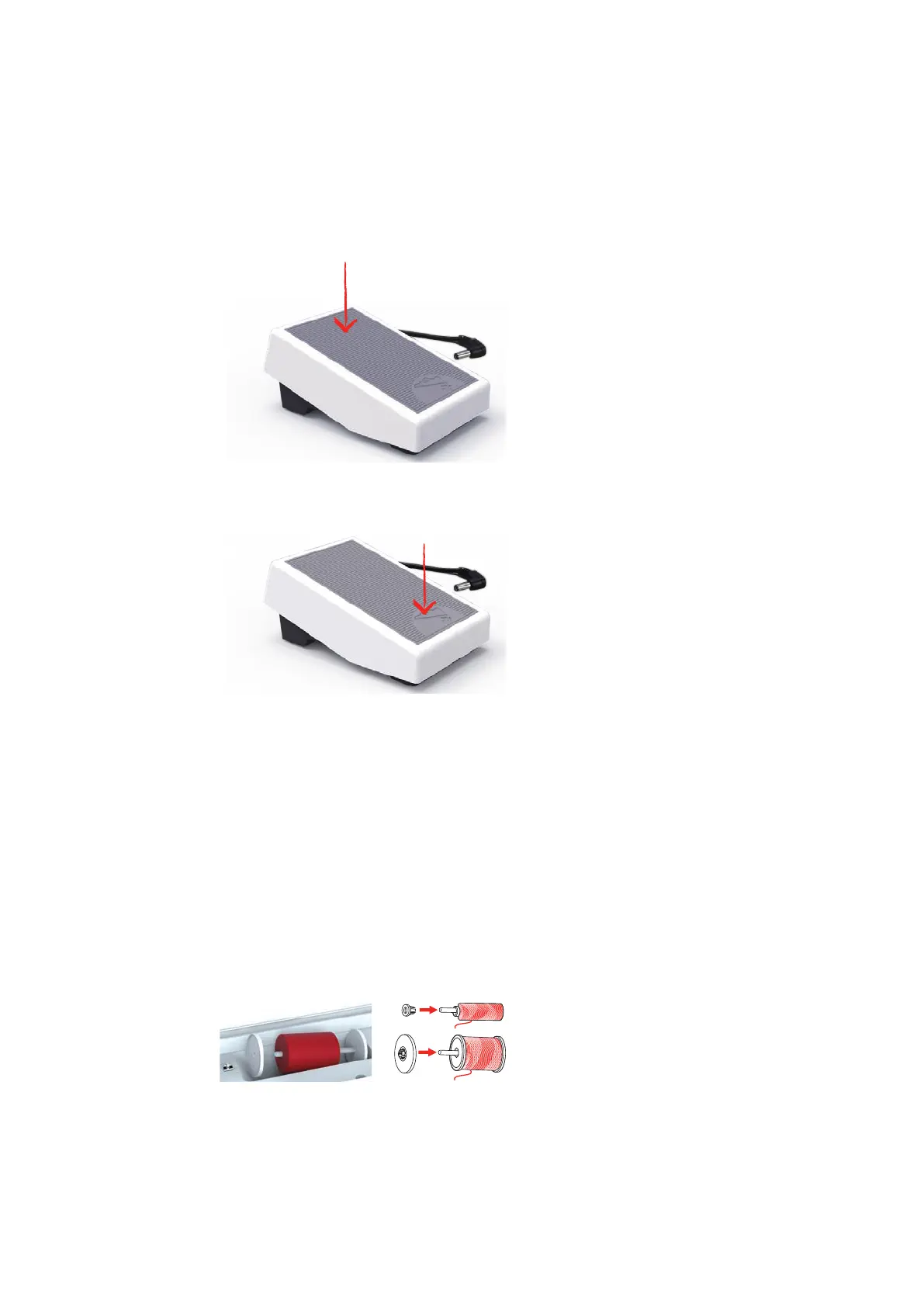

Regulating the speed via the foot control
Via the foot control the speed can be adjusted infinitely variable.
> Press the foot control down carefully to start the machine.
> To sew faster, press the foot control harder.
> Release the foot control to stop the machine.
Raising/Lowering the needle
> Sink the heel back on the foot control to raise/lower the needle.
Programming the foot control individually
The foot control can be programmed individually.
2.2 Spool pin
Horizontal spool pin
Placing the thread spool and the thread disc
Spool discs hold the thread spool in place for proper release of thread from the spool. The thread disc is only
used with the horizontal spool holder.
> Place the thread spool on the spool holder.
> Position the appropriate spool disc on the spool holder so that there is no space between the spool disc
and the thread spool.
