BERTHOLD TECHNOLOGIES LB 444 - Mounting Device 90° for Pipe Diameter 88.9

04/03 347 LB 444
98

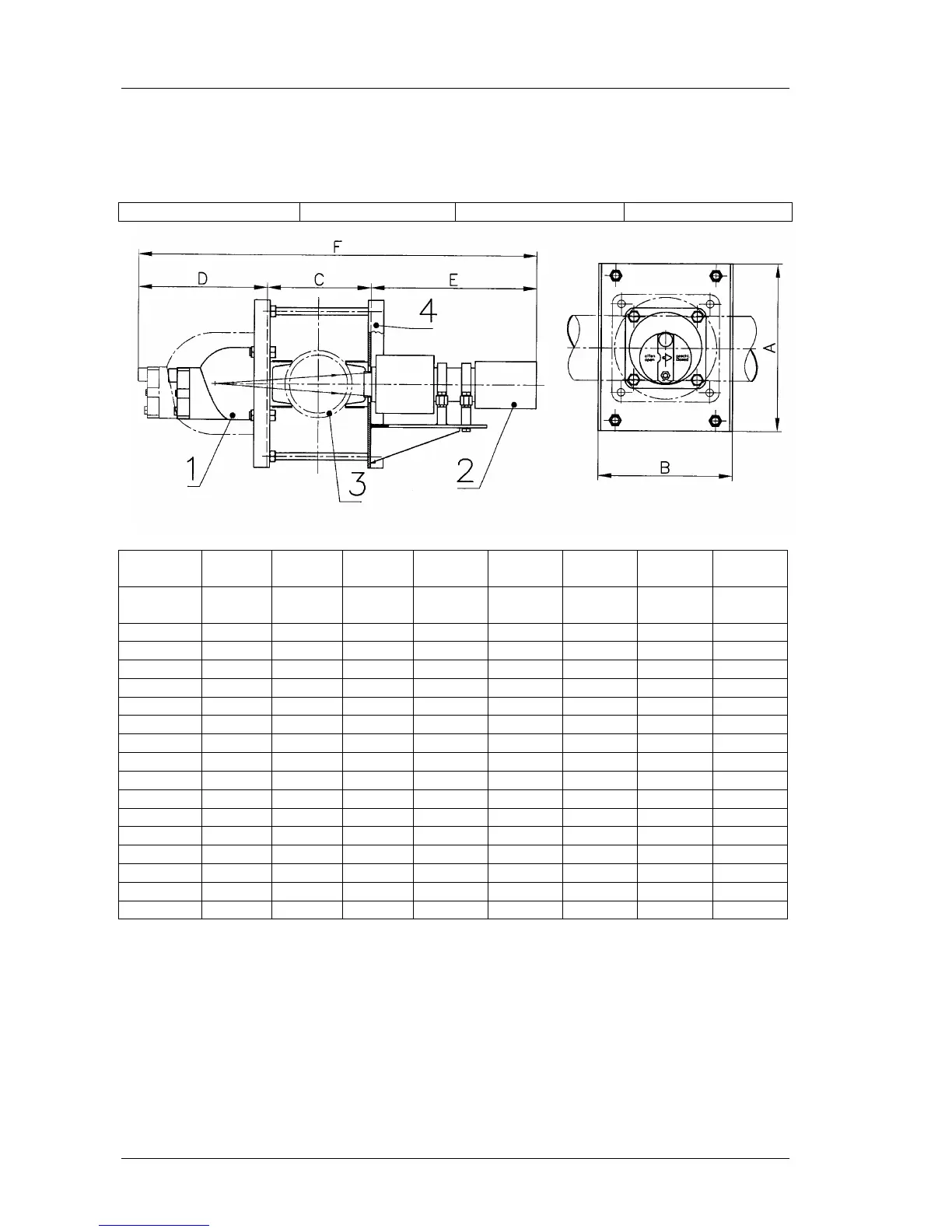

13.3 Mounting Device 90° for Pipe Diameter 88.9...304 mm
1 Shielding LB 744... 2 Detector 3 Pipeline 4 Mounting device
Pipe
diameter
A B C D D E F F
LB 7440 LB 7442 LB 7440 LB 7442
88.9 374 300 120 200 270 362 682 752
101.6 374 300 156 200 270 362 718 788
114.3 374 300 180 200 270 362 742 812
141.3 374 300 218 200 270 362 780 850
168.3 374 300 250 200 270 362 812 882
219.1 374 300 310 200 270 362 872 942
273 374 300 368 200 270 362 930 1000
304 374 320 402 200 270 362 964 1034
305 590 320 400 200 270 362 962 1032
318 590 320 413 200 270 362 975 1045
323.8 590 320 419 200 270 362 981 1051
355.6 590 320 451 200 270 362 1013 1083
406.4 590 320 501 200 270 362 1063 1133
457.2 590 320 552 200 270 362 1114 1184
508 590 320 603 200 270 362 1165 1235
521 590 320 616 200 270 362 1178 1248
