04/03 347 LB 444
31

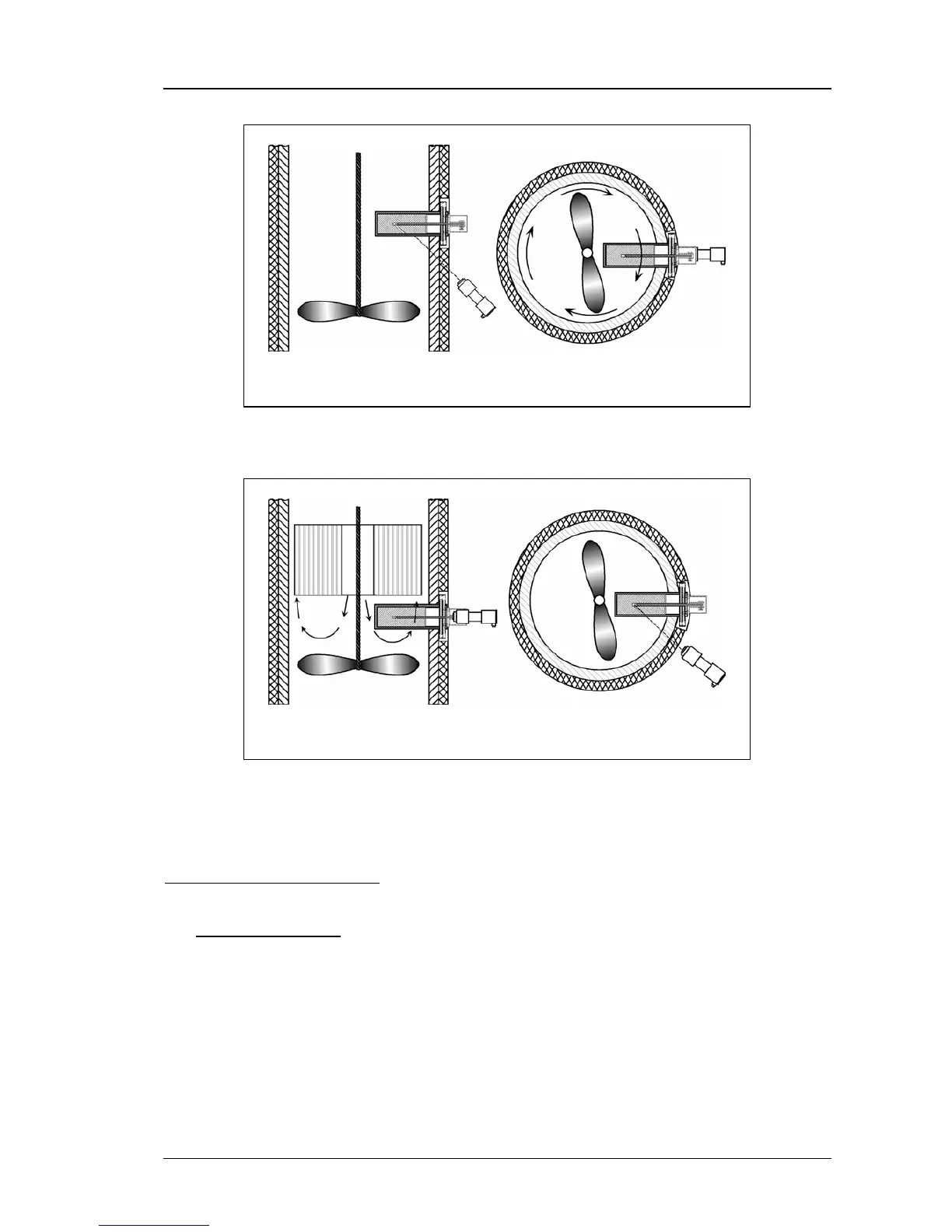

a) Side view b) Top view
Figure 16: Installation in a container with horizontal flow
a) Side view b) Top view
Figure 17: Installation in a container with vertical flow
For installation in a container, keep in mind:
Selection of measuring point
. At the measuring point, the pipeline must always be com-
pletely filled with the product to be measured. If the pipeline is only partially filled, this
may result in incorrect measurements.
For outdoor installation
, the measuring system must be protected from rain and direct
sunshine (e.g. by a thin sheet metal).
Do not expose the cables to temperatures exceeding 70°C.
Protect the detector against temperatures > 50°C by a water cooling jacket.
Cable bushing and cable have to be aligned so that no water can flow along the cable into
the bushing.
The detector installation site must not be subject to heavy vibrations as this could dam-
age the detector.
The product temperature for temperature compensation must be measured directly next
to the density measurement.
