BERTHOLD TECHNOLOGIES LB 444 - Mounting Device 30; 45

04/03 347 LB 444
100

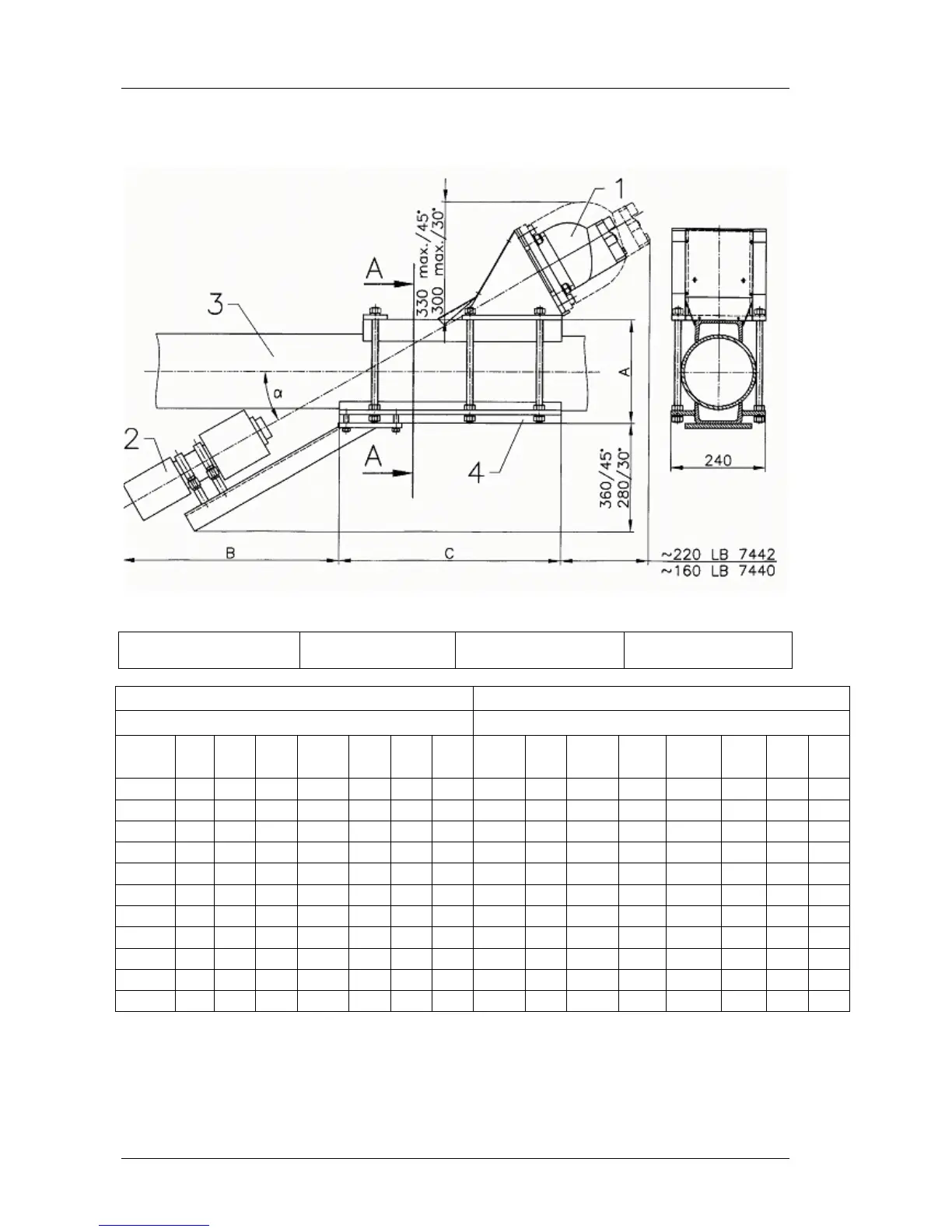

13.5 Mounting Device 30 / 45 °
1 Shielding
LB 744...
2 Detector 3 Pipeline 4 Mounting device
45° Weight approx. 30 kg 45° Weight approx. 30 kg
Dimensions in mm Dimensions in mm
Pipe
dia-
meter
A B C Pipe
dia-
meter
A B C Pipe
dia-
meter
A B C Pipe
dia-
meter
A B C
60.3 132 376 375 127 174 384 375 60.3 132 438 558 127 174 452 558
63.5 135 282 375 133 185 395 375 63.5 135 445 558 133 185 470 558
70 146 390 375 139.7 196 406 375 70 146 460 558 139.7 196 490 558
76.1 152 396 375 146 206 416 375 76.1 152 470 558 146 206 506 558
82.5 160 404 375 152.4 214 424 375 82.5 160 485 558 152.4 214 519 558
88.9 168 412 375 159 224 434 375 88.9 168 500 558 159 224 537 558
95 174 418 375 165.1 232 442 375 95 174 510 558 165.1 232 551 558
101.6 181 424 375 168.3 236 446 375 101.6 181 552 558 168.3 236 558 558
108 188 430 375 171 240 450 375 108 188 534 558 171 240 564 558
114.3 195 438 375 177.8 249 460 375 114.3 195 546 558 177.8 249 580 558
121 202 445 375 191 265 475 375 121 202 558 558 191 265 608 558
