04/03 347 LB 444
8
3.2.3 Shieldings for Installation in a Container with
Manually Operated Lock
The shielding consists of a lead-filled
steel pipe, with a guide tube for the ra-
dioactive source installed in the center.
The radiation exit channel is located in
an angle of 90° or 45° relative to the
longitudinal axis.
After taking off the covering cap which is
secured by a lock you may open the
knurled screw and, using the stay bar,
move the radioactive source forward
(OPEN) or back (CLOSED).
Locking
mechanism
Covering cap
Lead
Source position
CLOSED
Steel pipe
Protection pipe
Source position
OPEN
Radiation exit
channel
45°
90°

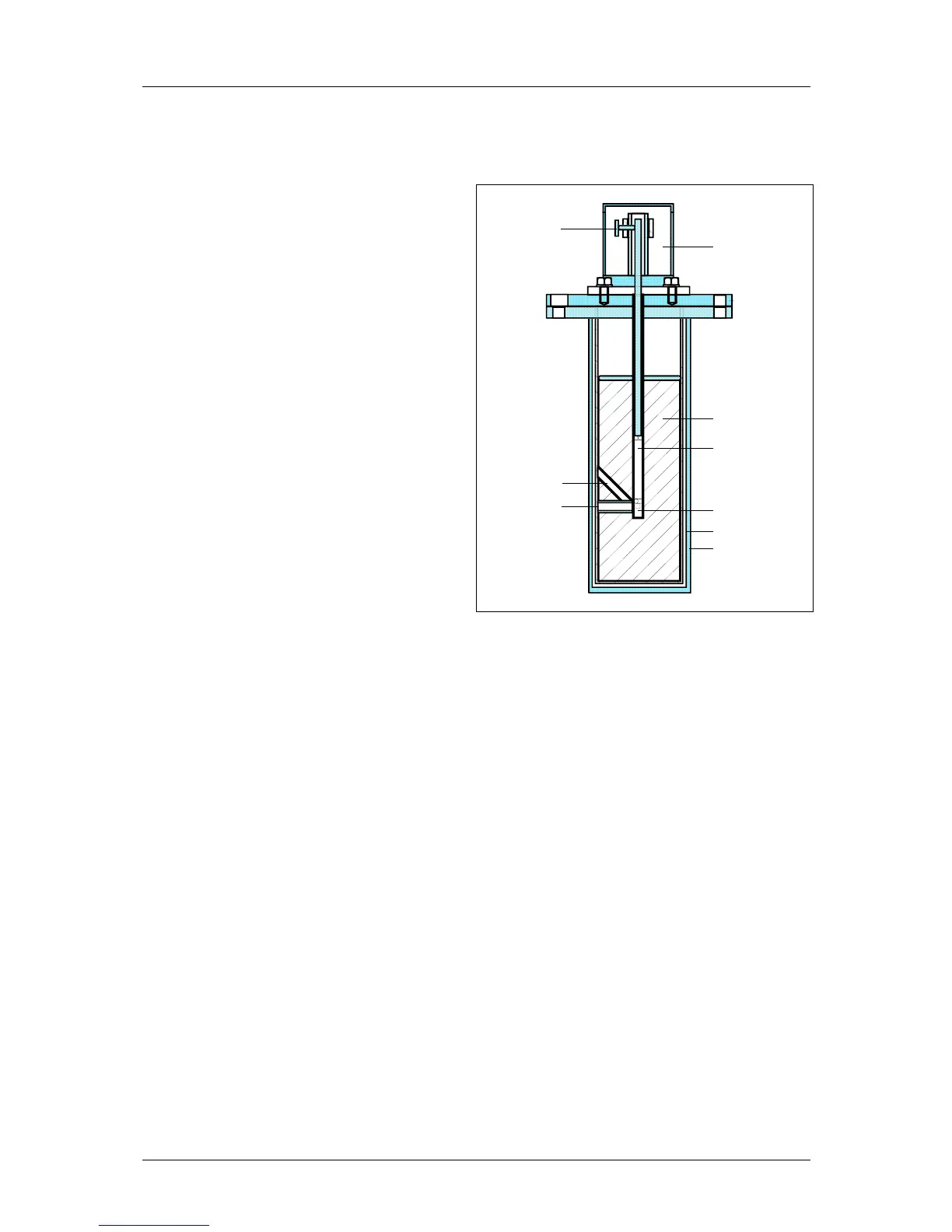

Figure 5:
Shielding for installation in a container
