Beta ALP 4.0 User Manual

3
CHECKS AND MAINTENANCE
118
GB
MOTOR OIL LEVEL CHECK
On this vehicle oil check must be carried out
while the motor is hot, since the oil tank is
positioned higher than the motor (see scheme).

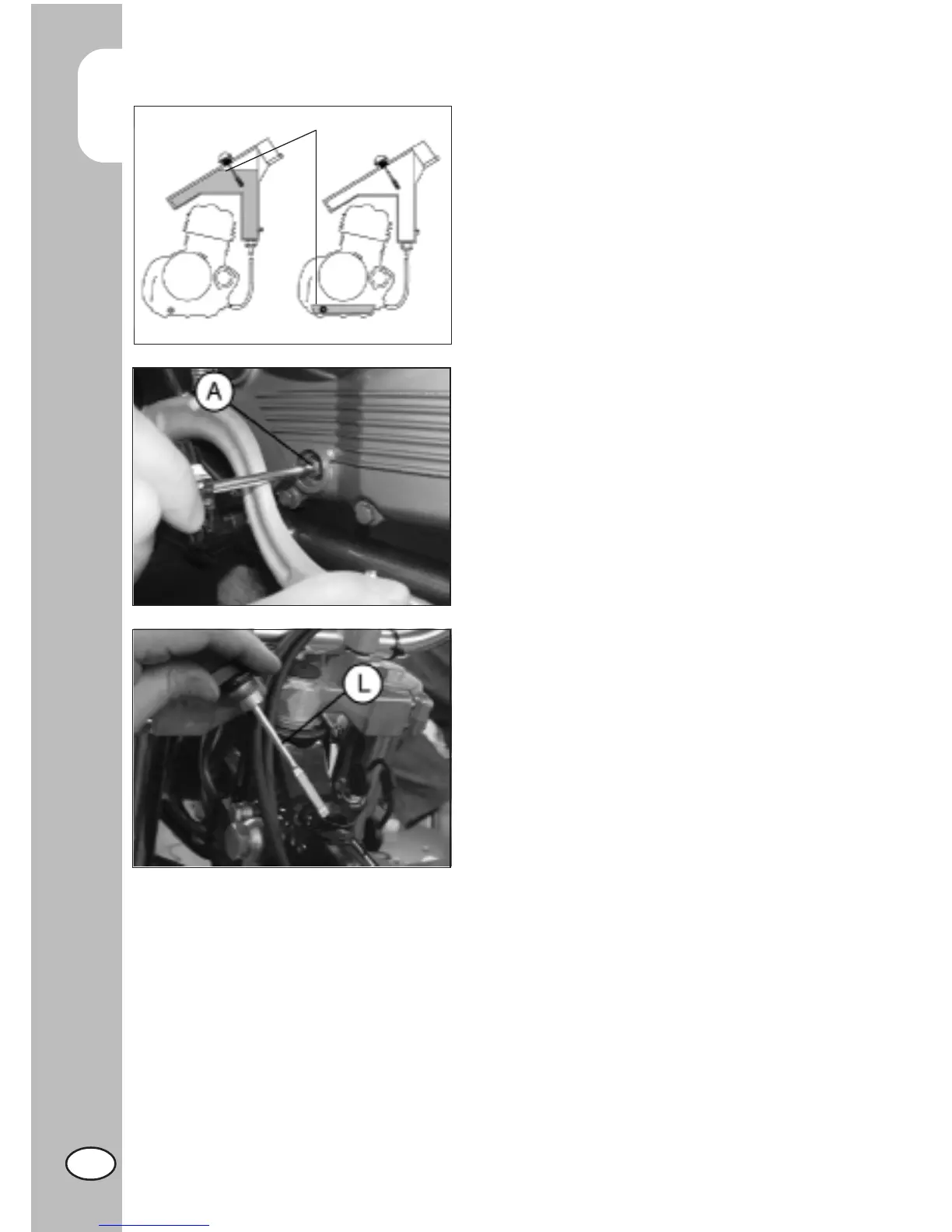

Fig. A
Motor oil level
Fig. B
Procedure for oil level check
• Verify the presence of oil inside the motor
block. In order to do this, loosen the oil
level inspection screw A on the motor
block and verify oil draw. This way, we
can be assured that there is a certain
quantity of motor oil inside the motor
block.
• In case there is a lack of oil drawn, pro-
ceed by topping-up the oil (1.9 lt) through
the L oil filling cap (see figure).

Beta ALP 4.0 Specifications

General

Displacement	349 cc
Final Drive	Chain
Rear Suspension	Monoshock
Front Brake	Single disc, 260 mm
Rear Brake	Single disc, 220 mm
Front Tire	90/90-21
Engine	Single cylinder, 4-stroke
