5
REPLACEMENTS
152
GB
Follow these steps to replace the pads:
• Position the motor-bike on a central stand,
with the rear tire raised above the ground.

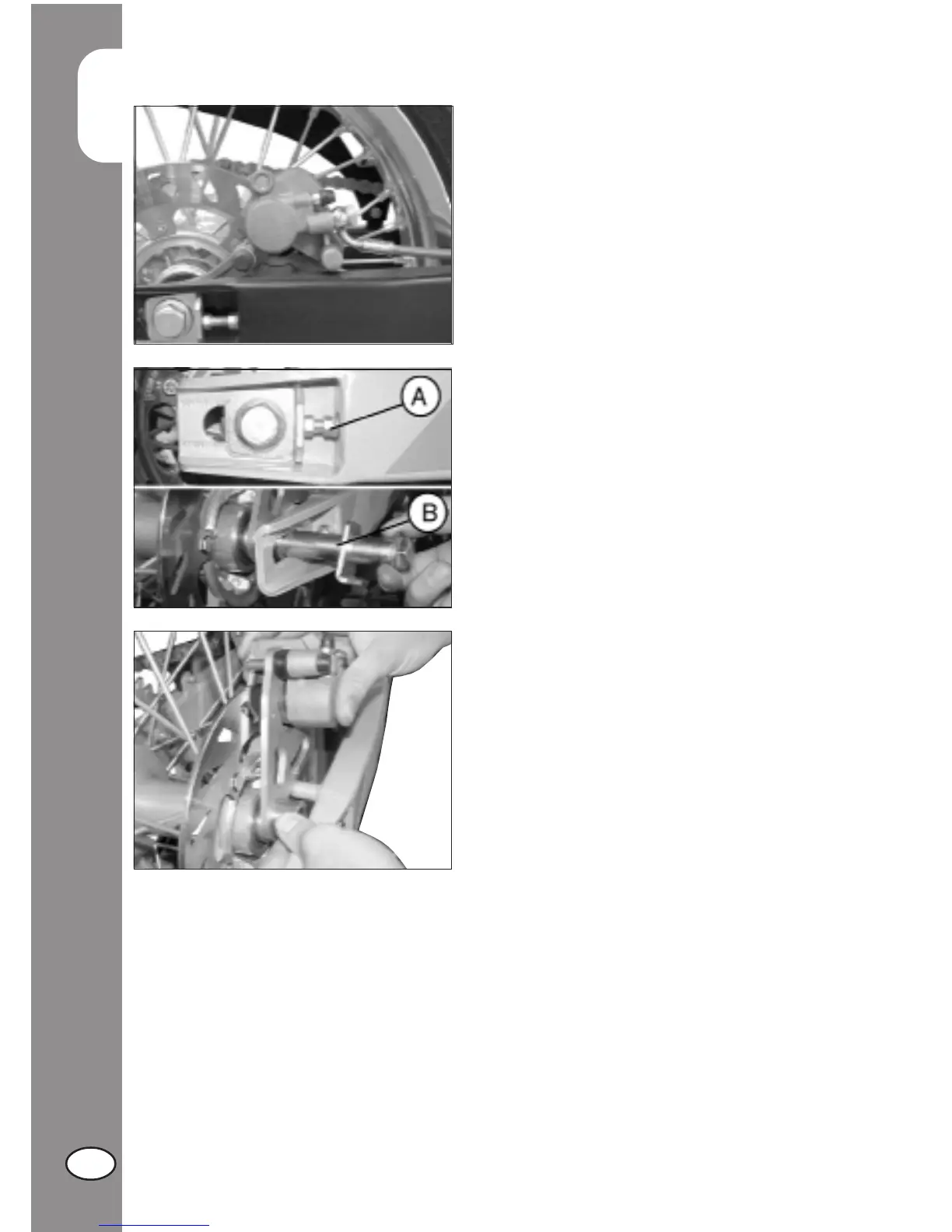

• Loosen the right and left register A and
remove the tire axis B.
REPLACING THE REAR BRAKE PADS
The procedure for replacing the brake pads
is provided only for information. We rec-
ommend having the operation performed
by a BETAMOTOR authorized workshop.
• Take out the brake pincer complete with
plate.
• Take out the worn brake linings and sub-
stitute them with new ones, having the
same typology.
• For reassembling proceed in the inverse
manner previously described.
• It is necessary to be sure that the tablets
have been correctly placed, after having
assembled pincer and tire support, using
the brake lever to close the pincer’s pis-
ton, in order to quickly verify the exact
assembly.
