Beta ALP 4.0 User Manual

3
CHECKS AND MAINTENANCE
137
GB
NOTES FOR CROSS-COUNTRY
In order to use the vehicle cross-country, it
is possible to disassemble those parts which
are bulky: licence-plate carrier, stand, di-
rection indicators and passenger foot-
board.

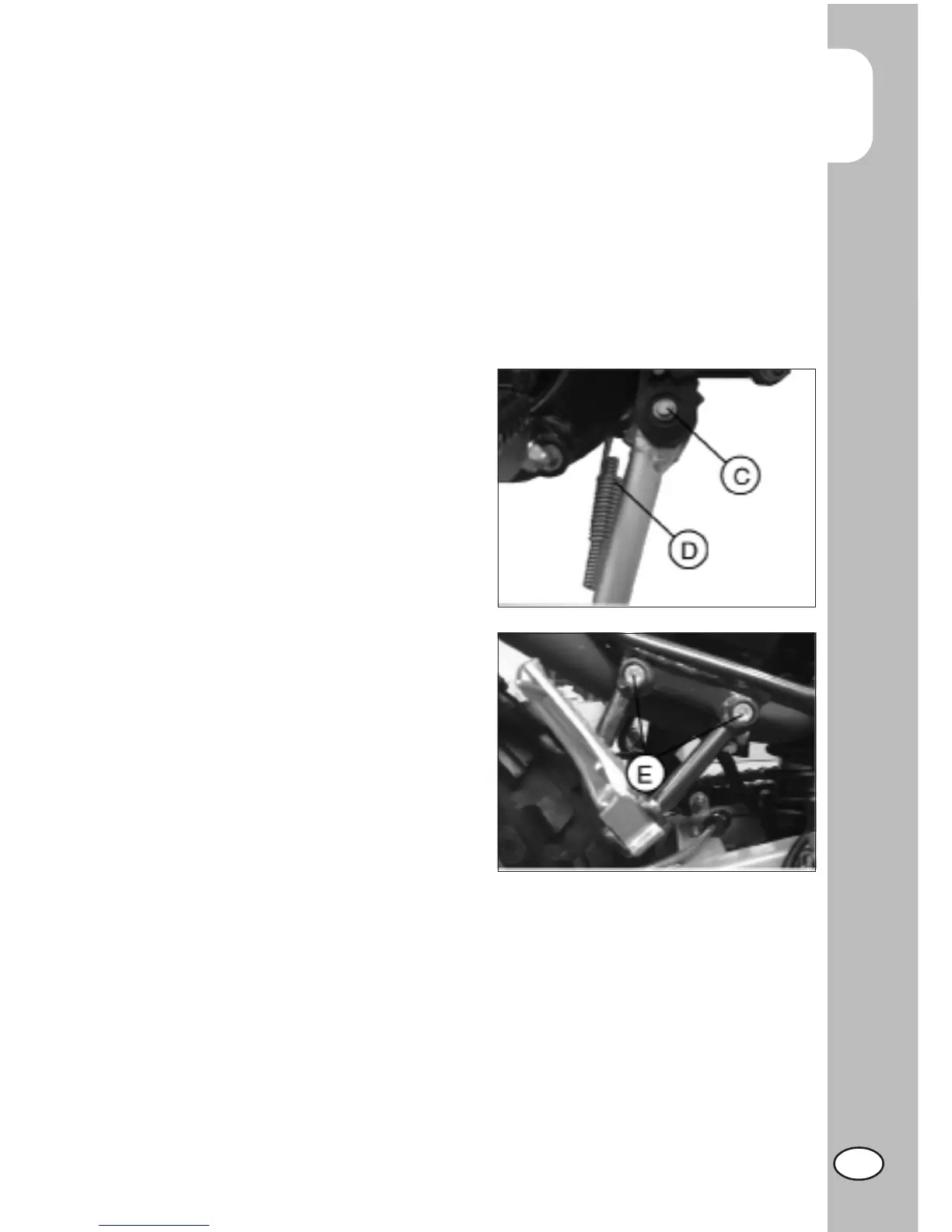

Removing the stand
• Remove the stand switch by unscrewing
the only fixing screw C.
• Carefully remove the return stand spring D
and the stand itself.
• The vehicle is equipped with retrieval switch
on the stand, so it will thus be necessary to
secure the switch’s electrical connections.
Removing the passenger’s footrests
• Loosen the two screws E shown in the
figure and remove the passenger’s foot-
rest complete with the frame fixing sup-
port.

Beta ALP 4.0 Specifications

General

Displacement	349 cc
Final Drive	Chain
Rear Suspension	Monoshock
Front Brake	Single disc, 260 mm
Rear Brake	Single disc, 220 mm
Front Tire	90/90-21
Engine	Single cylinder, 4-stroke
