3
CHECKS AND MAINTENANCE
128
GB
FORK OIL
Right/left-hand rod
The procedure for changing the oil in the
forks is provided only for information. We
recommend having the operation per-
formed by a BETAMOTOR authorized
workshop.

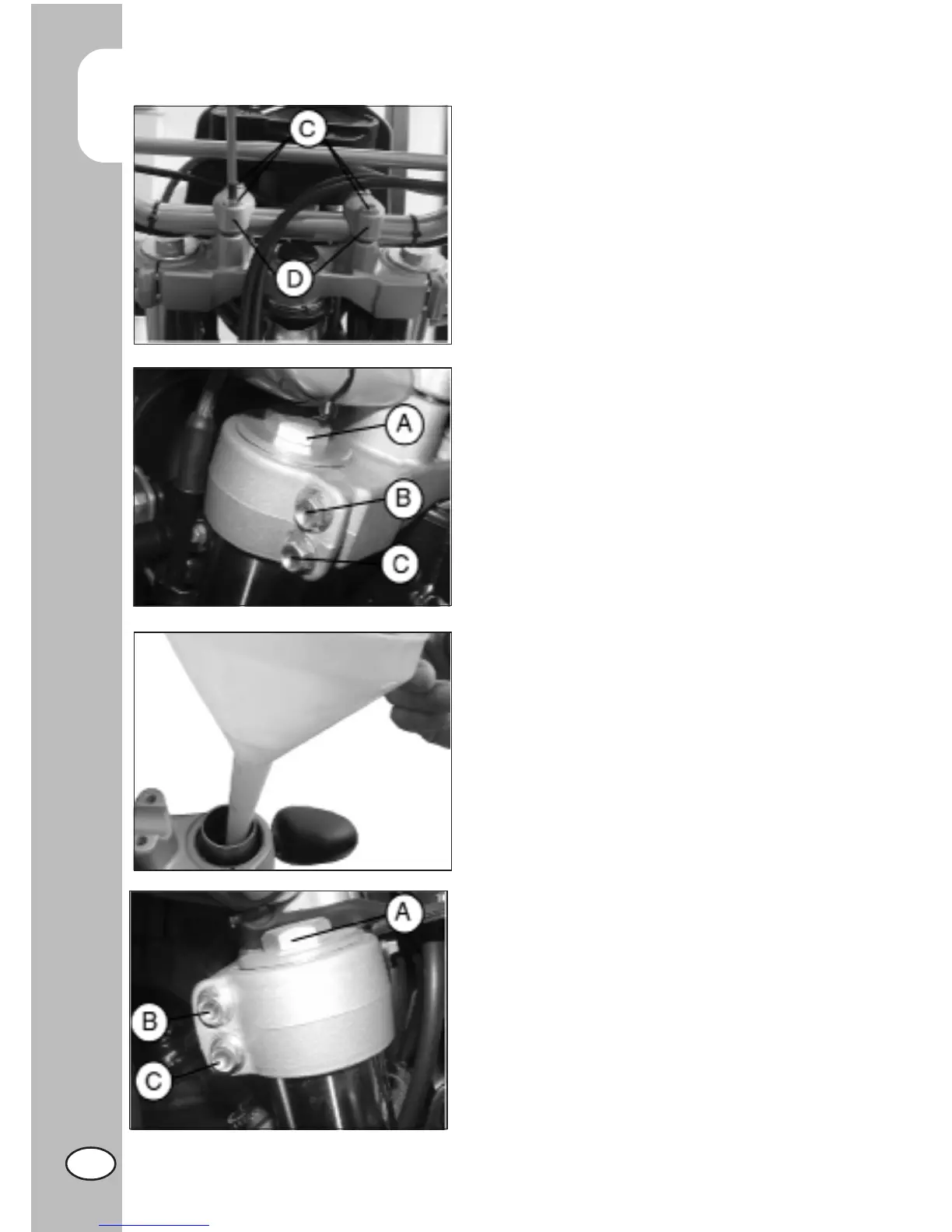

Follow these steps to renew the oil:
1) Remove the handle-bar by unscrewing the
four C clamping screws of the two D
stand screws.
2) Unloosen the stem clamping screws B
and C.
3) Remove the lower plug (hexagonal
screws in the fork sheath) and upper
plug A.
4) Let all the oil drain from the rod.
5) Retighten the inferior cap of the fork
sheath.
6) Pour in fresh oil of the type shown in
the table on page 112.
7) Fit and tighten upper plug A.
8) Tighten in sequence, first the B screw,
then the C screw and aging the B
screw.
