ADJUSTING THE BRAKES
Front brake
The front brake is a hydraulically operated
disc brake, and therefore requires no ad-
justment.
Rear brake
The rear brake is a hydraulically operated
disc brake.

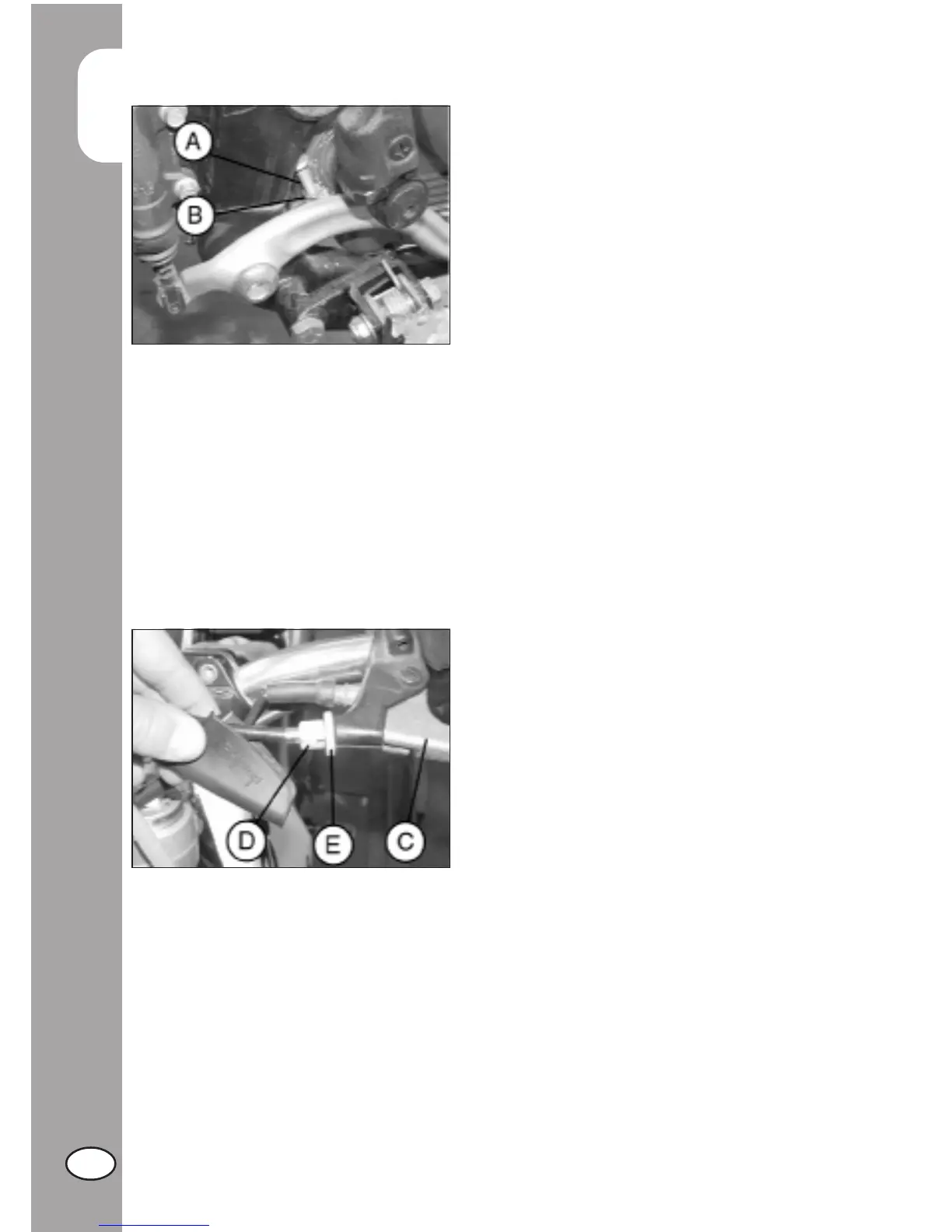

The brake pedal can be adjusted for height
by means of adjusters A and B.
The brake lever play should never be less
than 5 mm.
ADJUSTING THE CLUTCH
The only operation that may be required is
the adjustment of the position of clutch le-
ver C.
The adjustment is obtained by means of
adjuster D.
After adjusting the lever with the adjusting
screw, be sure to tighten stop E so as to
lock the screw in the desired position.
Note:
The play of the clutch should range from 1
to 2 mm.

Beta ALP 4.0 Specifications

General

Displacement	349 cc
Final Drive	Chain
Rear Suspension	Monoshock
Front Brake	Single disc, 260 mm
Rear Brake	Single disc, 220 mm
Front Tire	90/90-21
Engine	Single cylinder, 4-stroke
