CHECKS AND MAINTENANCE
133
GB
REMOVING THE PLASTICS FOR ALP
To facilitate checks and operations in cer-
tain areas of the vehicle, it is essential to
remove the bodywork sections as de-
scribed below.

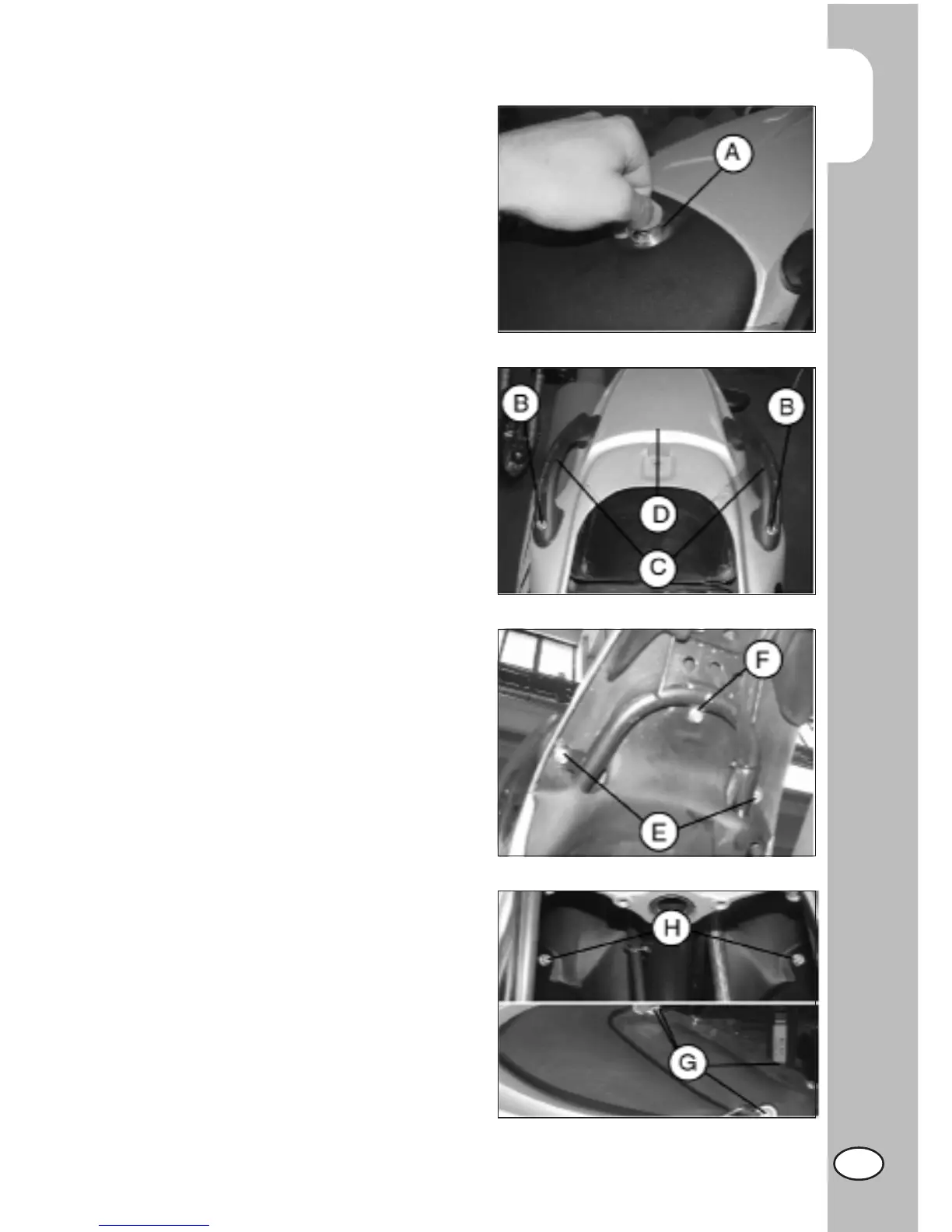

Removing the saddle
• Unloosen the clamping screw A and then
remove the saddle by pushing it towards
the rear of the vehicle so as to disengage
it from the hook on the fuel tank.
Disassembling rear handles
• Unscrew the two clamping screws B then
remove the other clamping screw E, po-
sitioned under the rear mudguard and thus
remove the handles C, taking care not to
mislay the rubber shims.
Disassembling rear tail
• Remove the clamping screw F and re-
move the tail D.
Disassembling front sides
• Unscrew the four clamping screws G
(two on each side) and remove the two
screws H.
• Remove the front sides, being careful to
remove the left side first and then the right
side.
