Beta RR 125 LC User Manual

SHIFT SHAFT
EAS25420
CHECKING THE SHIFT SHAFT
1. Check:
• Shift shaft
Bends/damage/wear → Replace.
• Shift shaft spring
Damage/wear → Replace.
EAS25430
CHECKING THE STOPPER LEVER
1. Check:
• Stopper lever
Bends/damage → Replace.
Roller turns roughly → Replace the stopper
lever.
• Stopper lever spring
Damage/wear → Replace.
EAS25450

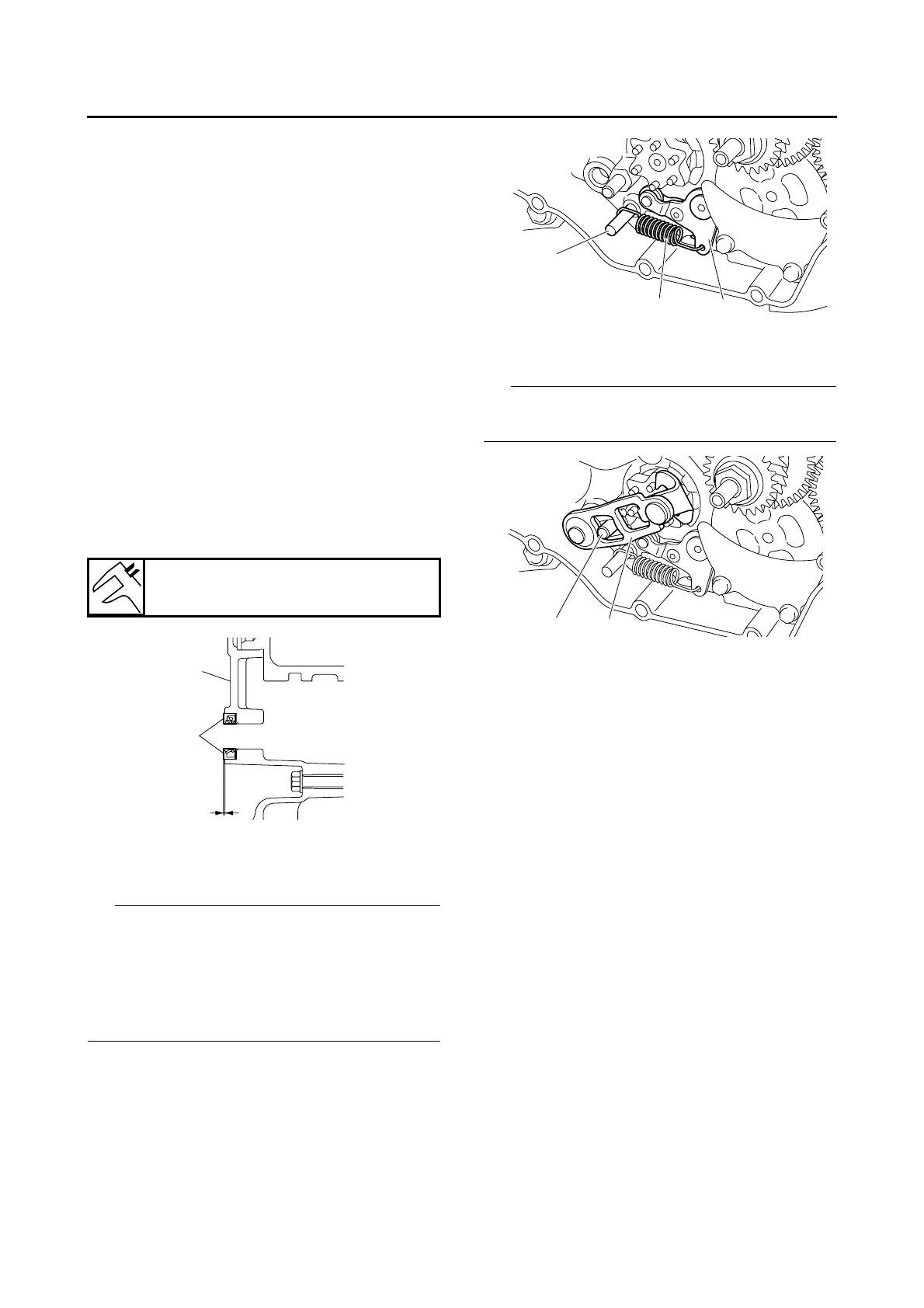

INSTALLING THE SHIFT SHAFT
1. Install:
• Oil seal “1”
(to the left crankcase “2”)
2. Install:
• Stopper lever “1”
• Stopper lever spring “2”
T
IP
• Install the stopper lever spring as shown in the
illustration.
• Hook the ends of the stopper lever spring onto
the stopper lever and the crankcase boss “3”.
• Mesh the stopper lever with the shift drum seg-
ment assembly.
3. Install:
• Shift shaft “1”
T
IP
Hook the end of the shift shaft spring onto the
shift shaft spring stopper “2”.
Installed depth “a”
0–0.5 mm (0–0.02 in)
2
1
a
12
3
1
2
