ELECTRIC STARTING SYSTEM
EAS27180
STARTING CIRCUIT CUT-OFF SYSTEM OPERATION
If the engine stop switch is set to “” and the main switch is set to “ON” (both switch circuits are closed),
the starter motor can only operate if at least one of the following conditions is met:
• The transmission is in neutral (the neutral switch circuit is closed).
• The clutch lever is pulled to the handlebar (the clutch switch circuit is closed) and the sidestand is up
(the sidestand switch circuit is closed).
The starting circuit cut-off relay prevents the starter motor from operating when neither of these condi-
tions has been met. In this instance, the starting circuit cut-off relay is open so current cannot reach the
starter motor. When at least one of the above conditions has been met, the starting circuit cut-off relay
is closed and the engine can be started by pressing the start switch “”.

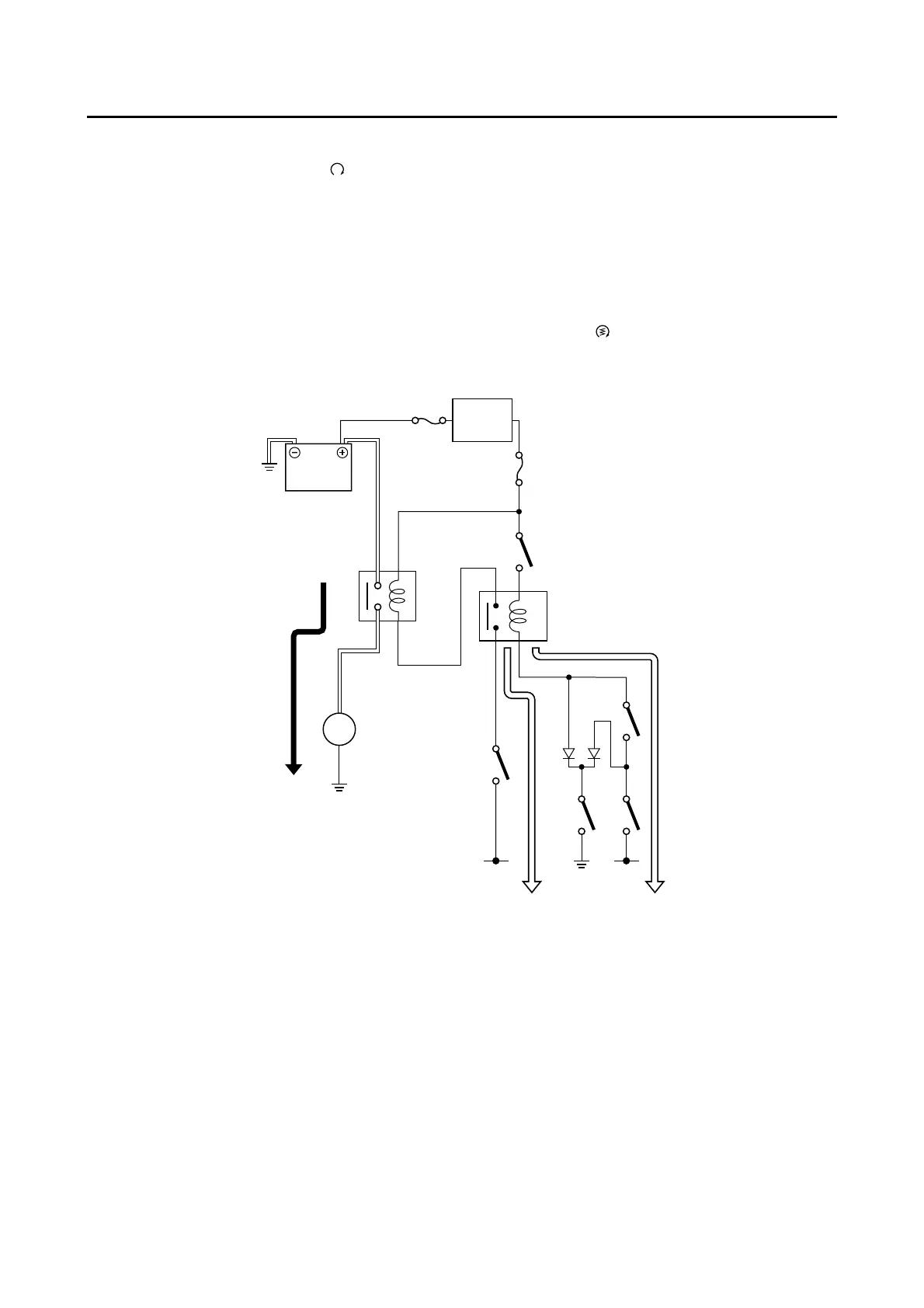

1
2
3
12
6
5
4
13
a
b
7
8
10
11
9
a. WHEN THE TRANSMISSION IS IN
NEUTRAL
b. WHEN THE CLUTCH LEVER IS PULLED TO
THE HANDLEBAR AND THE SIDESTAND IS
UP
1. Battery
2. Main fuse
3. Main switch
4. Ignition fuse
5. Engine stop switch
6. Starting circuit cut-off relay
7. Clutch switch
8. Sidestand switch
9. Diode
10.Neutral switch
11.Start switch
12.Starter relay
13.Starter motor
