Beta RR 125 LC User Manual

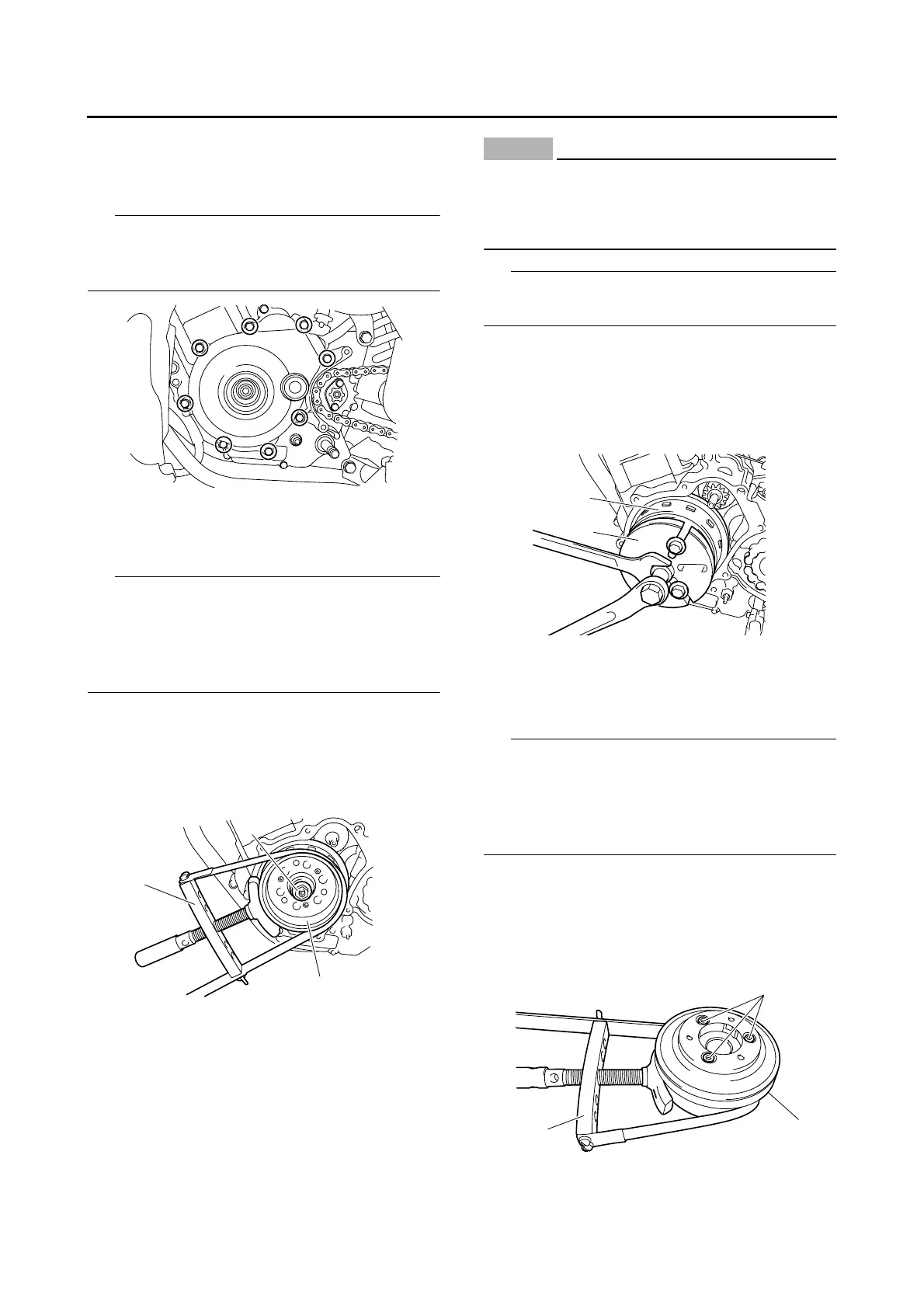

GENERATOR AND STARTER CLUTCH
EAS24490
REMOVING THE GENERATOR
1. Remove:
• Generator cover
T
IP
Loosen each bolt 1/4 of a turn at a time, in stag-
es and in a crisscross pattern. After all of the
bolts are fully loosened, remove them.
2. Remove:
• Generator rotor nut “1”
• Washer
T
IP
• While holding the generator rotor “2” with the
sheave holder “3”, loosen the generator rotor
nut.
• Do not allow the sheave holder to touch the
projections on the generator rotor.
3. Remove:
• Generator rotor “1”
(with the flywheel puller “2”)
• Woodruff key
NOTICE
ECA13880
To protect the end of the crankshaft, place an
appropriate sized socket between the fly-
wheel puller set center bolt and the crank-
shaft.
T
IP
Make sure the flywheel puller is centered over
the generator rotor.
EAS24560
REMOVING THE STARTER CLUTCH
1. Remove:
• Starter clutch bolts “1”
T
IP
• While holding the generator rotor “2” with the
sheave holder “3”, remove the starter clutch
bolts.
• Do not allow the sheave holder to touch the
projections on the generator rotor.
1
3
2
1
2
2
1
3

Beta RR 125 LC Specifications

General

Displacement	124.8 cc
Fuel System	Electronic Fuel Injection
Ignition	Electronic
Lubrication	Wet sump
Clutch	Wet multi-disc
Transmission	6-speed
Final Drive	Chain
Seat Height	920 mm
Fuel Tank Capacity	7.5 liters
Starting System	Electric
Front Suspension	Hydraulic fork with ø41 mm shaft
Front Brake	260 mm disc
Rear Brake	Single disc, 220 mm
Engine Type	Liquid-cooled, 4-stroke, single cylinder
