ELECTRIC STARTER
7. Check:
• Gear teeth
Damage/wear → Replace the starter motor.
8. Check:
• Bearing
• Oil seal
Damage/wear → Replace the starter motor
front cover/brush holder set.
EAS24800
ASSEMBLING THE STARTER MOTOR
1. Install:
• Starter motor front cover/brush holder set “1”
• Starter motor yoke “2”
T
IP

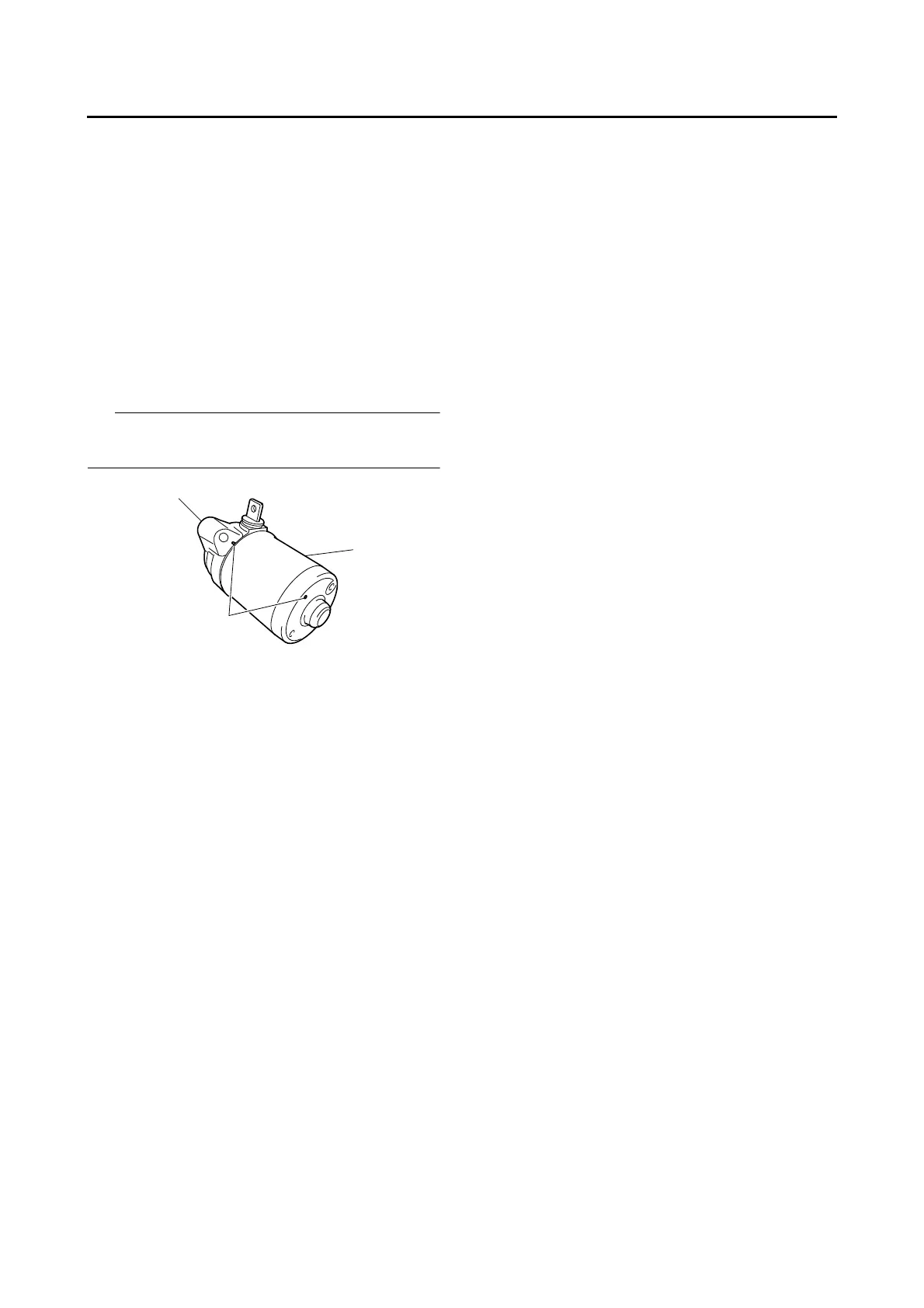

Align the marks “a” on the starter motor yoke and
starter motor front cover/brush holder set.
2
a
1
