Beta RR 125 LC - Generator and Starter Clutch Service

GENERATOR AND STARTER CLUTCH
EAS22B1006
GENERATOR AND STARTER CLUTCH

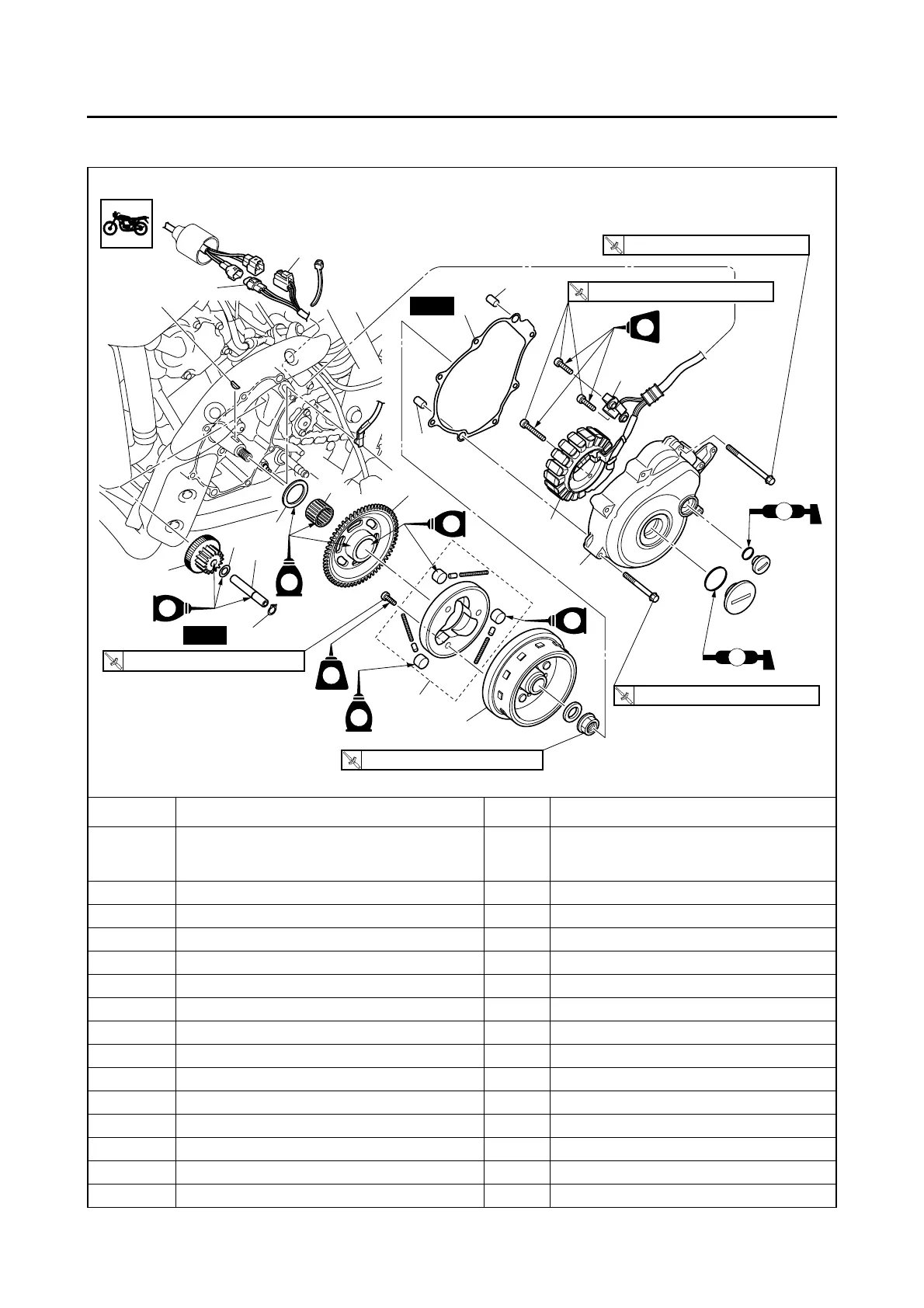

Removing the generator and starter clutch
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drive sprocket cover
Shift pedal
1 Stator coil coupler 1
2 Crankshaft position sensor coupler 1
3 Neutral switch lead connector 1
4 Generator cover 1
5 Generator cover gasket 1
6 Dowel pin 2
7 Crankshaft position sensor 1
8 Stator coil 1
9 Generator rotor 1
10 Woodruff key 1
11 Starter clutch gear 1
12 Bearing 1
(3)
E
LS
LS
E
LT
LT
E
E
E
18
9
12
13
(3)
New
New
15
11
17
16
14
10
3
7
8
5
6
6
4
(7)
2
1
LT
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
14 Nm (1.4 m
•
kgf, 10 ft
•
Ibf)
T
.R.
70 Nm (7.0 m
•
kgf, 50 ft
•
Ibf)
T
.R.
