9. Examples
When there are more than 30 microphone units we recommend using a redundant cabling, e.g. with CA 4213/14 T or X adapters, for a
trouble-free operation of the MCS-D 200 conference system.

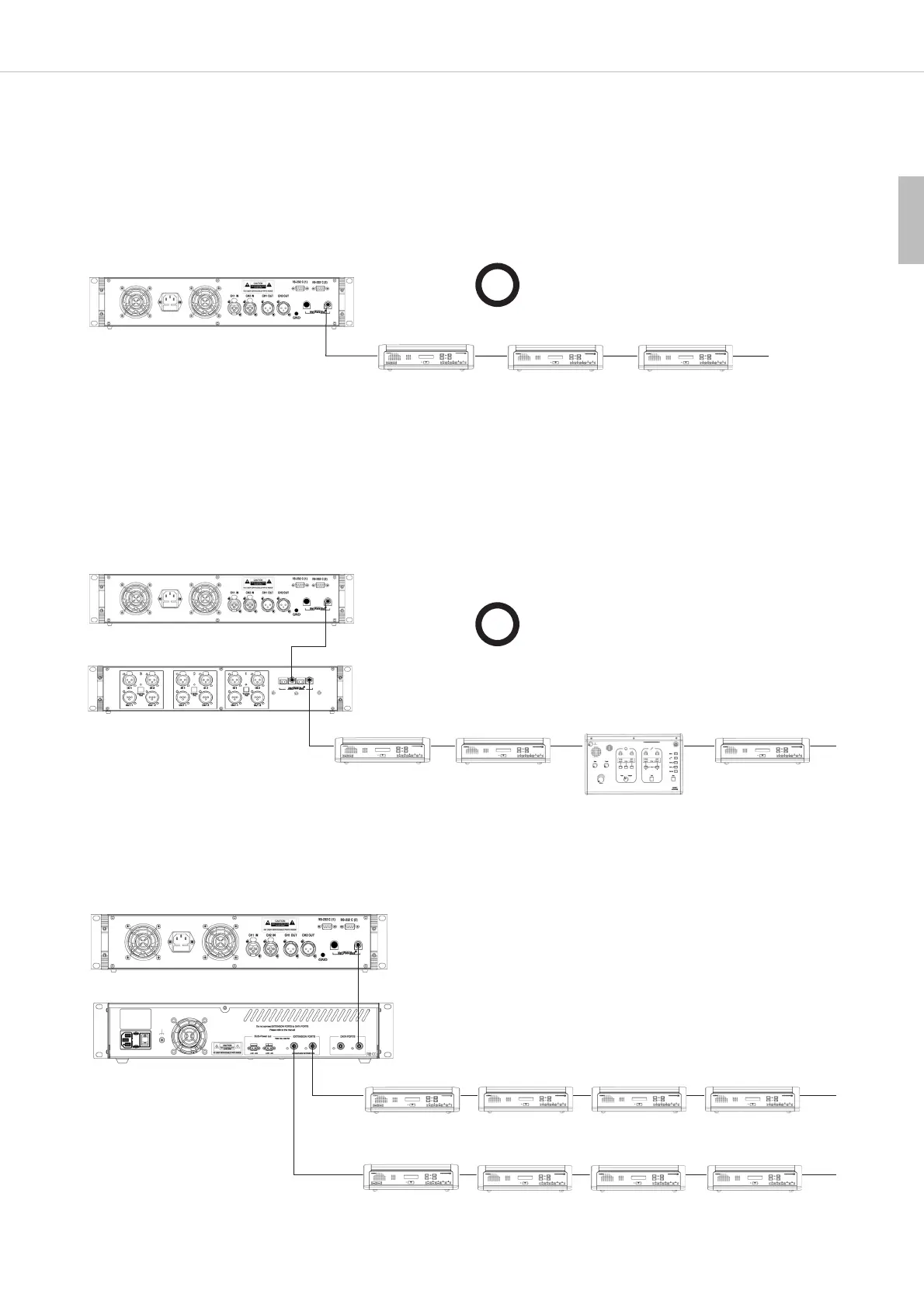

Single-sided powering of the microphone stations which are set up as a branch
Please calculate the maximum cable length. We recommend using our standard cables.
Inserting devices at any location
Devices such as microphone stations, interpreter stations and digital / analogue interfaces are inserted at any location of the system.
OK
MCS-D 200 control unit
MCS-D 31xx MCS-D 31xx MCS-D 31xx
MCS-D 200 control unit
MCS-D 200 control unit
CA 4566 DAI
OK
CA 4146 power supply unit
MCS-D 31xx
MCS-D 31xx
MCS-D 31xx
MCS-D 31xx MCS-D 31xx MCS-D 31xx
MCS-D 31xx MCS-D 31xx MCS-D 31xx MCS-D 31xx
MCS-D 202
MCS-D 31xx
