MCS-D 200 – Examples
66
Additional power supply units for branches
MCS-D 200 control unit (1 integrated power supply = 2 A) . . . . . . . . . . . . . . . . . for approx. 15 devices
MCS-D 200 control unit option A (2 intergrated power supplies = 4 A) . . . . . . . . . for approx. 30 devices
To expand the system:
CA 4146 power supply unit (6 A). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . for approx. 45 devices

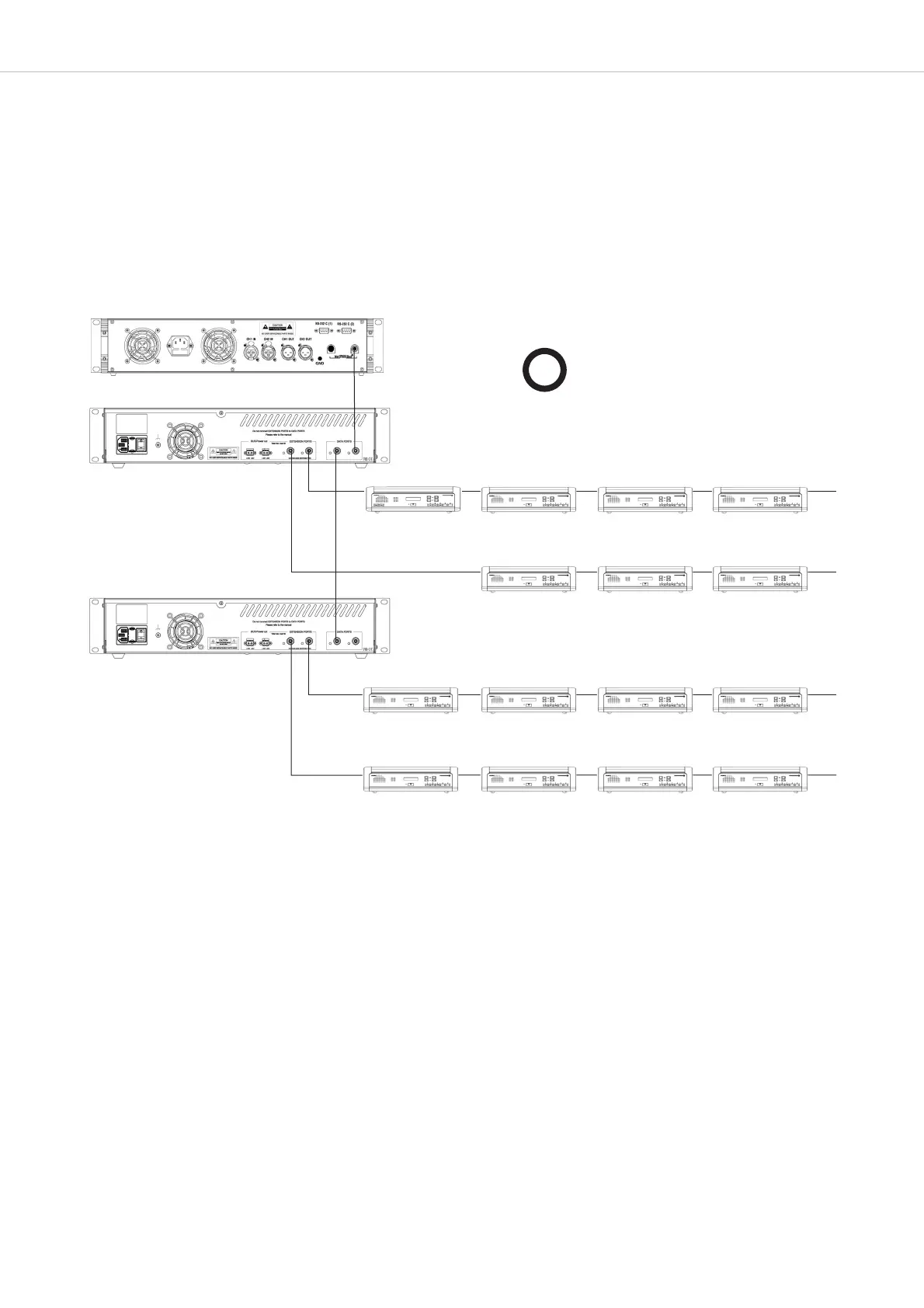

Connect the control unit and the power supply unit with each other via the NetRateBus sockets.
Connect all devices consuming power microphone stations, interpreter stations, digital / analogue interfaces and adapters) to the
EXTENSION PORTS.
OK
MCS-D 200 control unit
CA 4146 power supply unit
CA 4146 power supply unit
MCS-D 31xx MCS-D 31xx MCS-D 31xx MCS-D 31xx
MCS-D 31xx MCS-D 31xx MCS-D 31xx
MCS-D 31xxMCS-D 31xx MCS-D 31xx MCS-D 31xx
MCS-D 31xxMCS-D 31xx MCS-D 31xx MCS-D 31xx
