11
IRIS
Fig. 3.8
Fig. 3.7
Fig. 3.6
Fig. 3.5
INSTANT VERSION
SPOON DISPENSER
This process is activated only in the versions where the spoon
dispenser is foreseen; In these versions it is possible to select
the spoon in the selections without sugar and/ or in the instant
selections .

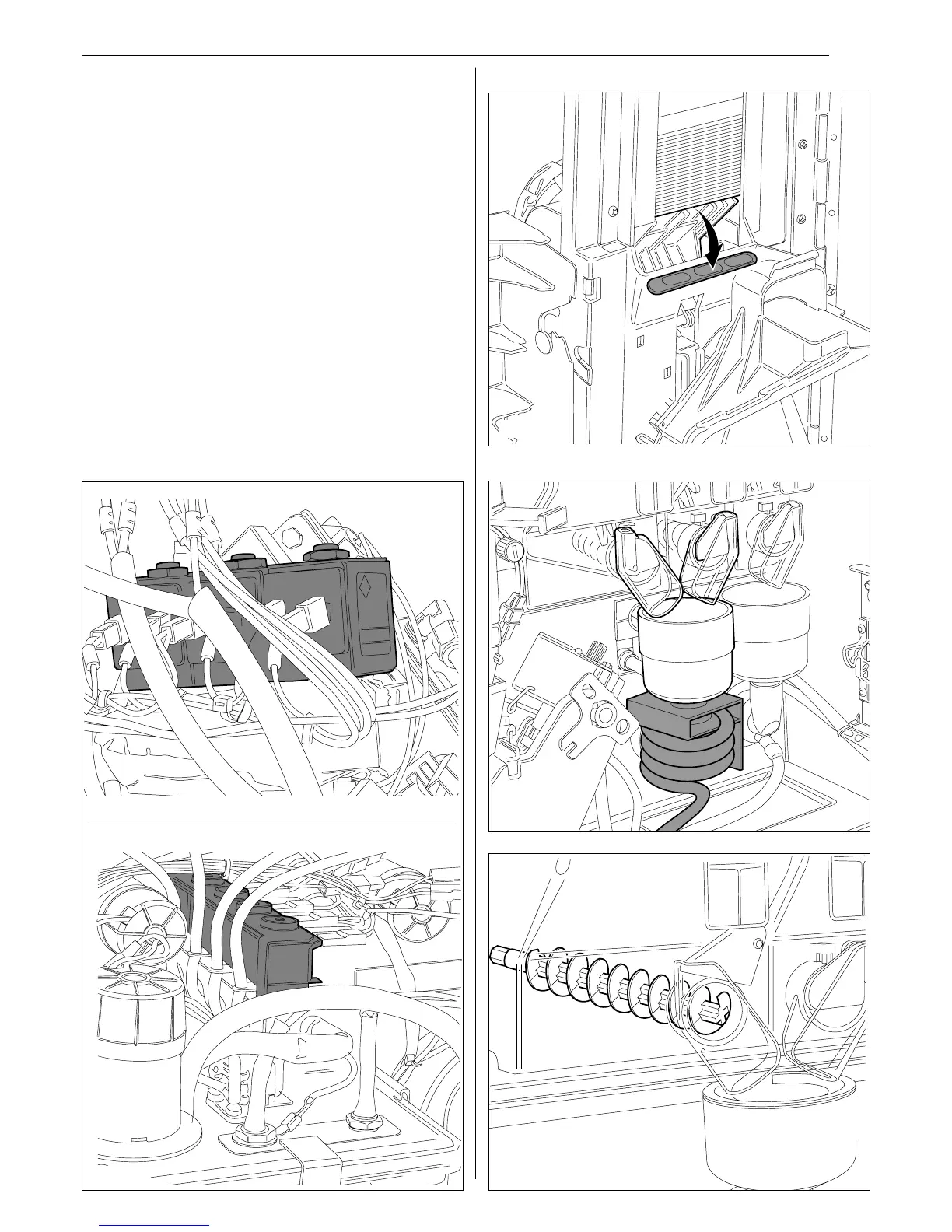

- the geared motor that operates the spoon release device is
activated making the spoon fall into the cup (Fig.3.5).
INSTANT DRINKS
This process is activated when the cup and spoon dispensing
processes (when requested) have been completed.
According to the type drink requested and to the distributor model,
several of the various processes described here below can be activated.
If present, the whipper motor is activated (Fig.3.6).
The solenoid valve fixed to the coffee boiler is engaged in order
to deliver the required quantity of water into the mixer (fig.3.7);
In the IRIS I model, the activated solenoid valve is placed on
the tank (Fig.3.7).
The pump that delivers the required amount of water is activated;
and controlled by a special electronic device (volumetric counter),
which withdraws from the coffee boiler (Fig. 3.11).
The instant product geared motor activates the helicoidal screw
conveyor so as to dispense the quantity of product programmed
into the mixer (in some versions more than one product can
be conveyed into the same mixer) (Fig.3.8).
Once the preset quantity of water and powder is dispensed,
the whipper motor is switched off.
