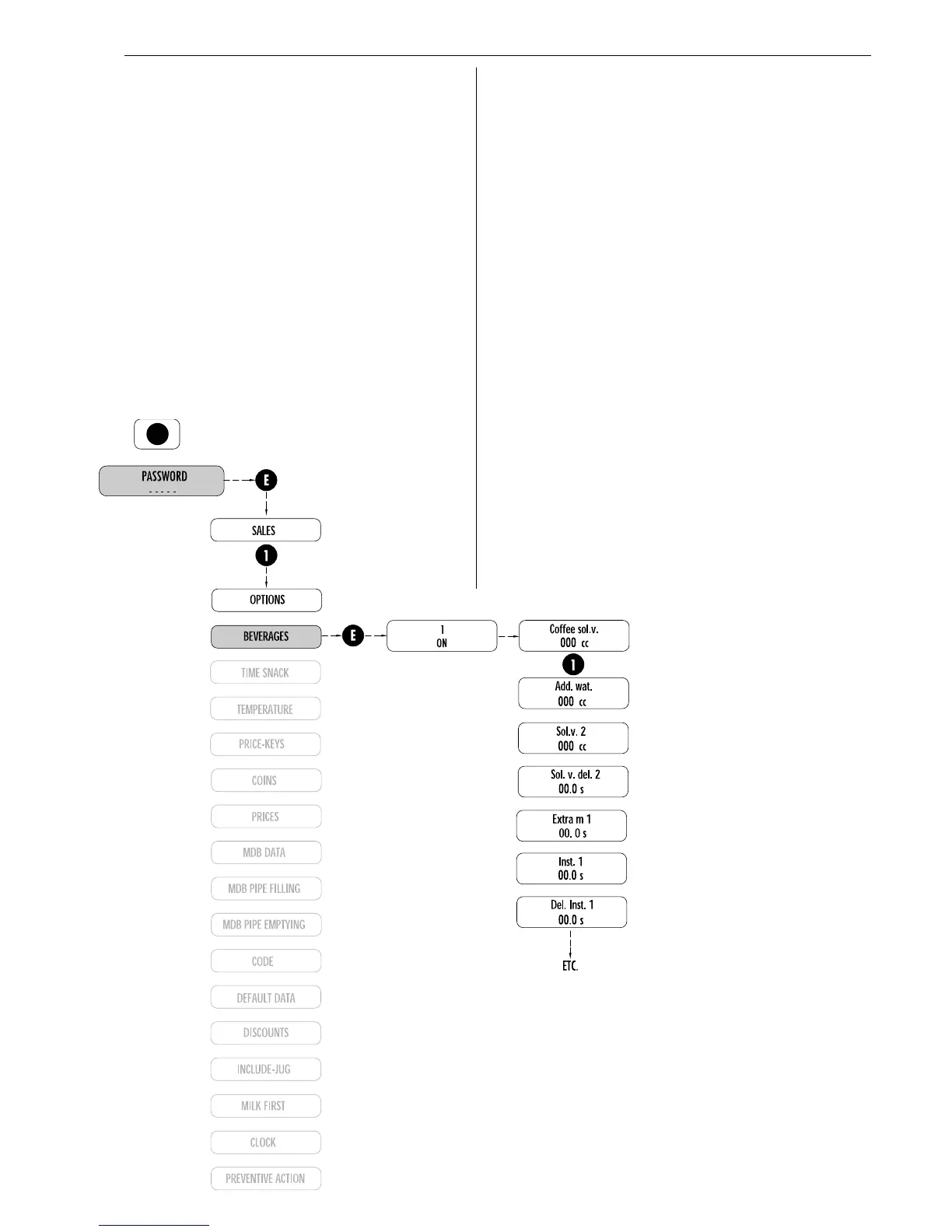

Fig. 7.5
7.2.3 BEVERAGES
Espresso version (Fig. 7.5)
The beverage menu structure is repeated according to the number
of drinks, so that the same structure will be repeated for a single
drink indicating an x instead of the number of drinks, so that it is
sufficient to replace x with the corresponding drink number.
The following combinations have been made for the soluble drinks:
1 = milk
2 = chocolate
3 = tea or decaffeinated
For keys 1-13 line 1 shows the keys referred to for enabling, the
doses and times shown on line 2, listed below:
On enables drink
Coffee sol.v. 000 cc quantity of water for coffee,
[000 cc  999 cc]
Add.wat. 000 cc additional quantity of water for coffee,
[000 cc  999 cc]
Sol.v.2 000 cc quantity of water for instant drinks 1 and 2,
[000 cc  999 cc]
The Ton indicates the amount of time
for which the gear motor remains on,
while the toff indicates the amount
of time which it remains off. The time
sequence is Ton-Toff-Ton-Toff etc for
the entire duration of the relative
soluble product.
NOTE: If decaffeinated option is NO,
keys 9-13 are not displayed.
Sol.v.del.2 00.0 s water dose delay for instant drinks 1 and 2,
[00.0 s  25.5 s]
Extra m 1 00.0 s mixer extra time 1, [00.0 s  25.5 s]
Inst.1 00.0 s dose for instant drink 1, [00.0 s  25.5 s]
Del.Inst.1 00.0 s dose delay for instant drink 1,
[00.0 s  25.5 s]
Ton inst.1 00.0 s time on reduction gear for instant drink 1,
[00.0 s  25.0 s]
Toff inst.1 00.0 s time off- reduction gear for instant drink 1,
[00.0 s  25.0 s]
Inst.2 00.0 s dose for instant drink 2, [00.0 s  25.5 s]
Del.Inst.2 00.0 s dose delay for instant drink 2,
[00.0 s  25.5 s]
Ton Inst.2 00.0 s time on reduction gear for instant drink 2
[00.0 s  25.0 s]
Toff Inst.2 00.0 s time off- reduction gear for instant drink 2,
[00.0 s  25.0 s]
Sol.V..3 000 cc quantity of water for instant drink 3,
[000 cc  999 cc]
Del.Sol.v.3 00.0 s water dose delay for instant drink 3,
[00.0 s  25.5 s]
Extra m 2 00.0 s mixer extra time 2, [00.0 s  25.5 s]
Inst.3 00.0 s dose for instant drink 3, [00.0 s  25.5 s]
Del.Inst.3 00.0 s dose delay for instant drink 3,
[00.0 s  25.5 s]
Ton Inst.3 00.0 s time on reduction gear for instant drink 3,
[00.0 s  25.0 s]
Toff Inst.3 00.0 s time off- reduction gear for instant drink 3,
[00.0 s  25.0 s]
Sol.v.4 000 cc quantity of water relevant to solenoid valve 4,
[000 cc  999 cc]
Del.Sol.v.4 00.0 s water dose delay relevant to solenoid valve 4,
[00.0 s  25.5 s]
Sugar 00.0 s sugar dose, [00.0 s  25.5 s]
