60
IRIS

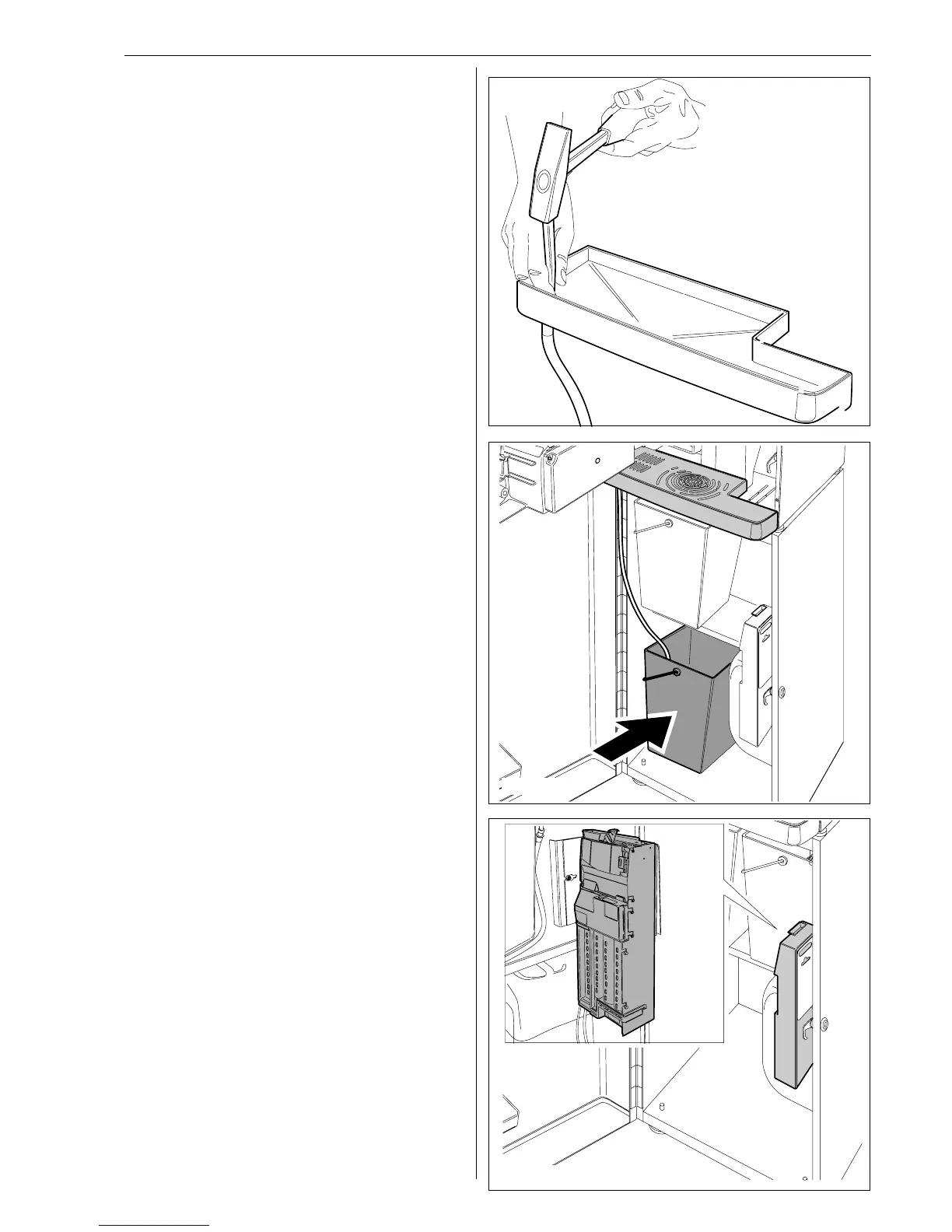

Fig.10.8
Fig. 10.9
Fig. 10.10
10.1.2 Liquid ground collection
- Remove the tank and pierce the discharge point as shown in
figure 10.8.
- Insert the silicone tube in the relevant seat in the tank
- Now re-insert the liquid ground collecting tank and check for
the presence of the bucket in the lower seat (Fig.10.9).
10.1.3 Installation of chutes and coin/token box
- Assemble the coin box on the bottom part of the cabinet by
fixing it with the suitable square.(Fig.10.10).
