53
IRIS

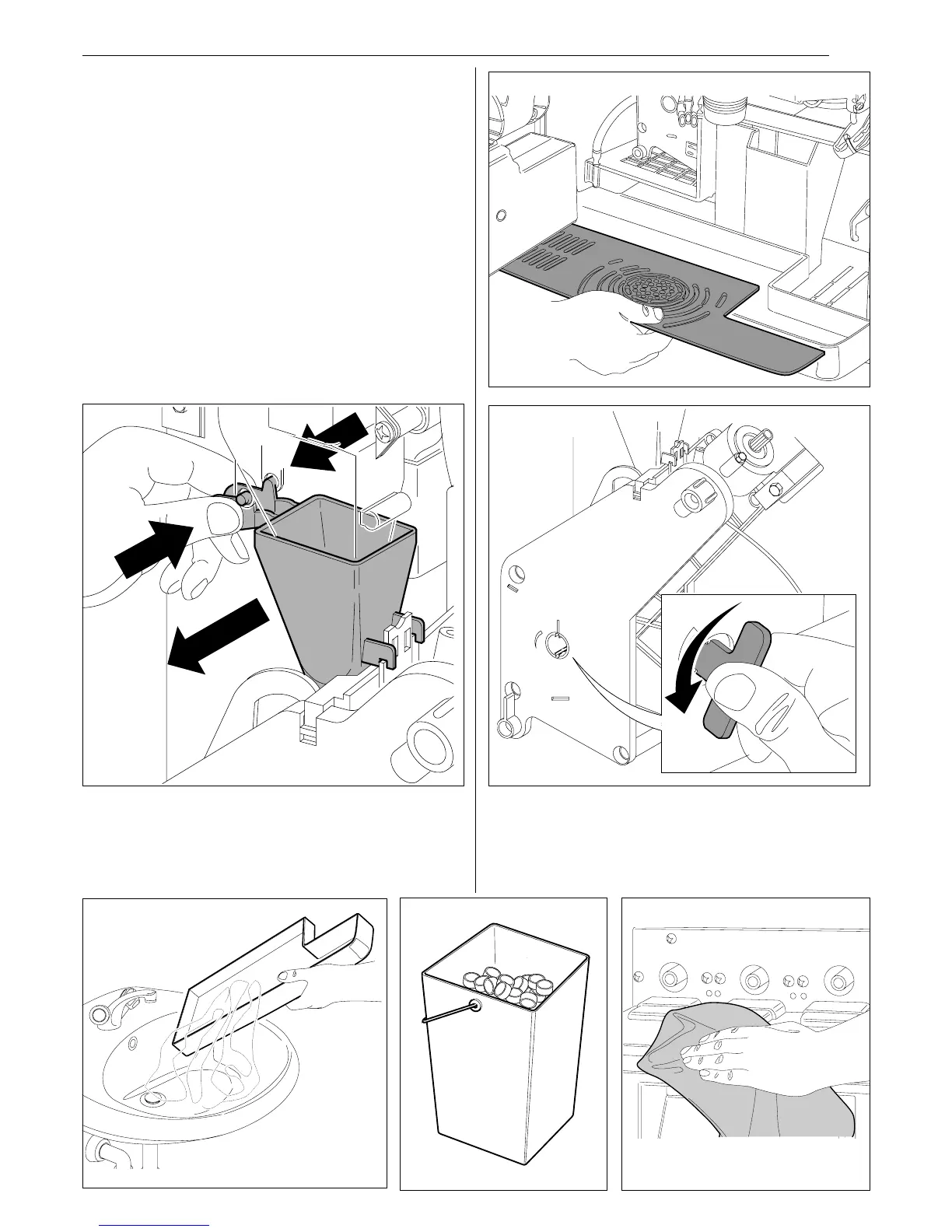

Fig.9.5
Fig. 9.8
Fig. 9.9Fig.9.7
Fig.9.6
Fig.9.4
silicone water dispensing tubes.
dispensing chamber (Fig. 9.4)
coffee funnel and chute (Fig. 9.5)
Before effecting the re-assembly operations clean all the elements
carefully.
remove all coffee powder residue; the unit can be removed
from its housing to make the task easier (Fig. 9.6)
empty the waste liquids bin clean it and/or substitute it (Fig.
9.7).
empty the coffee ground collecting tank (coffee in beans
versions) (Fig. 9.8)
Last step: coin collection.
9.1.4 Weekly cleaning
Remove all the containers and clean with a wet cloth all the
container support parts, as well as the bottom of the distributor
and the outside of the distributor, in particular the dispensing
area. (Fig. 9.9).
