Bianchi IRIS - Installation of Coffee Ground Discharge Chute

59
IRIS
Fig.10.3
Fig.10.5
Fig.10.4

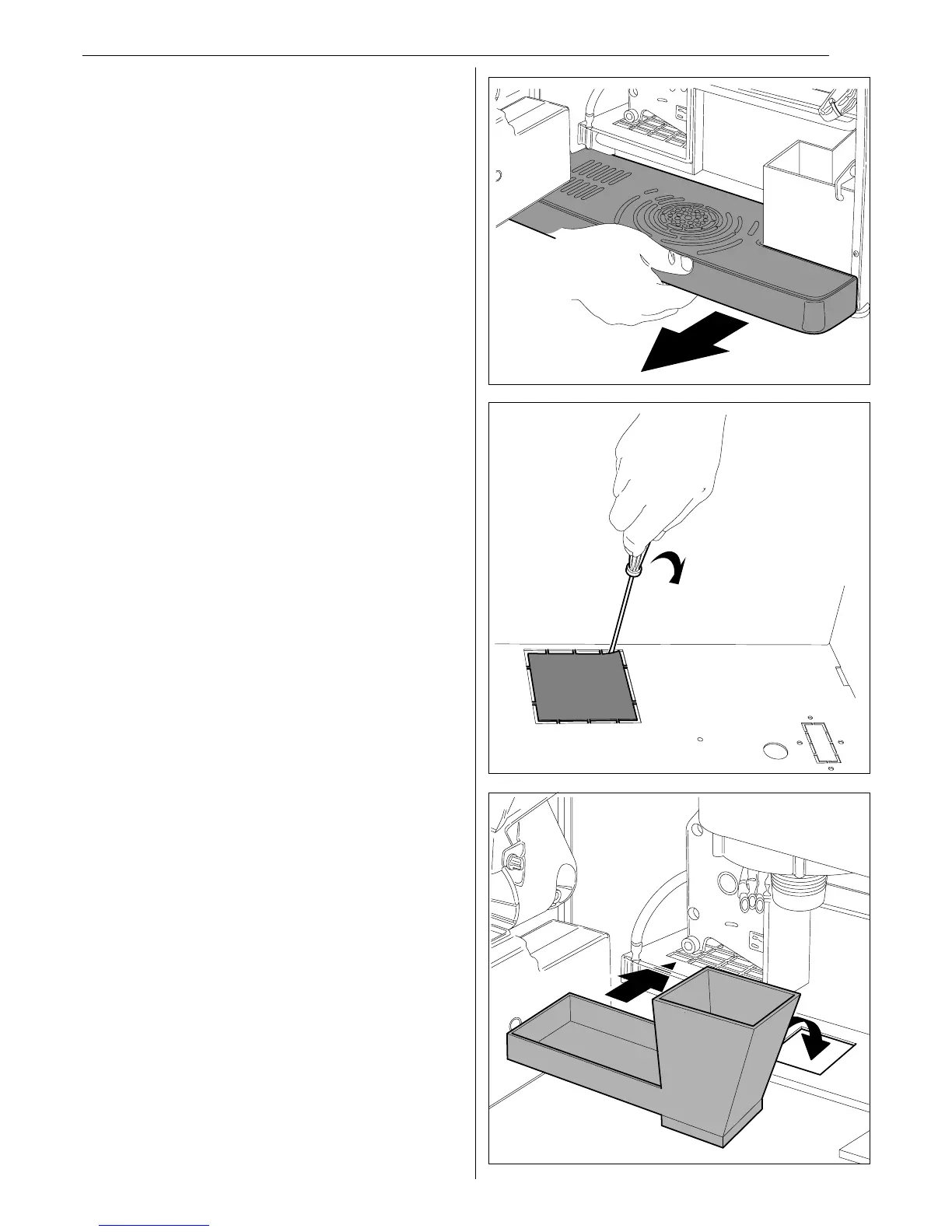

10.1.1 Installation of coffee ground discharge chute
Remove the liquid ground collecting tank (Fig.10.3) and the coffee
ground collecting tank.
Remember to:
- Remove the disk on the bottom of the distributor by breaking
the connecting flaps (Fig.10.4).
- Re-insert the liquid ground collecting tank
- Re-insert the coffee ground collecting tank (Fig.10.5).
