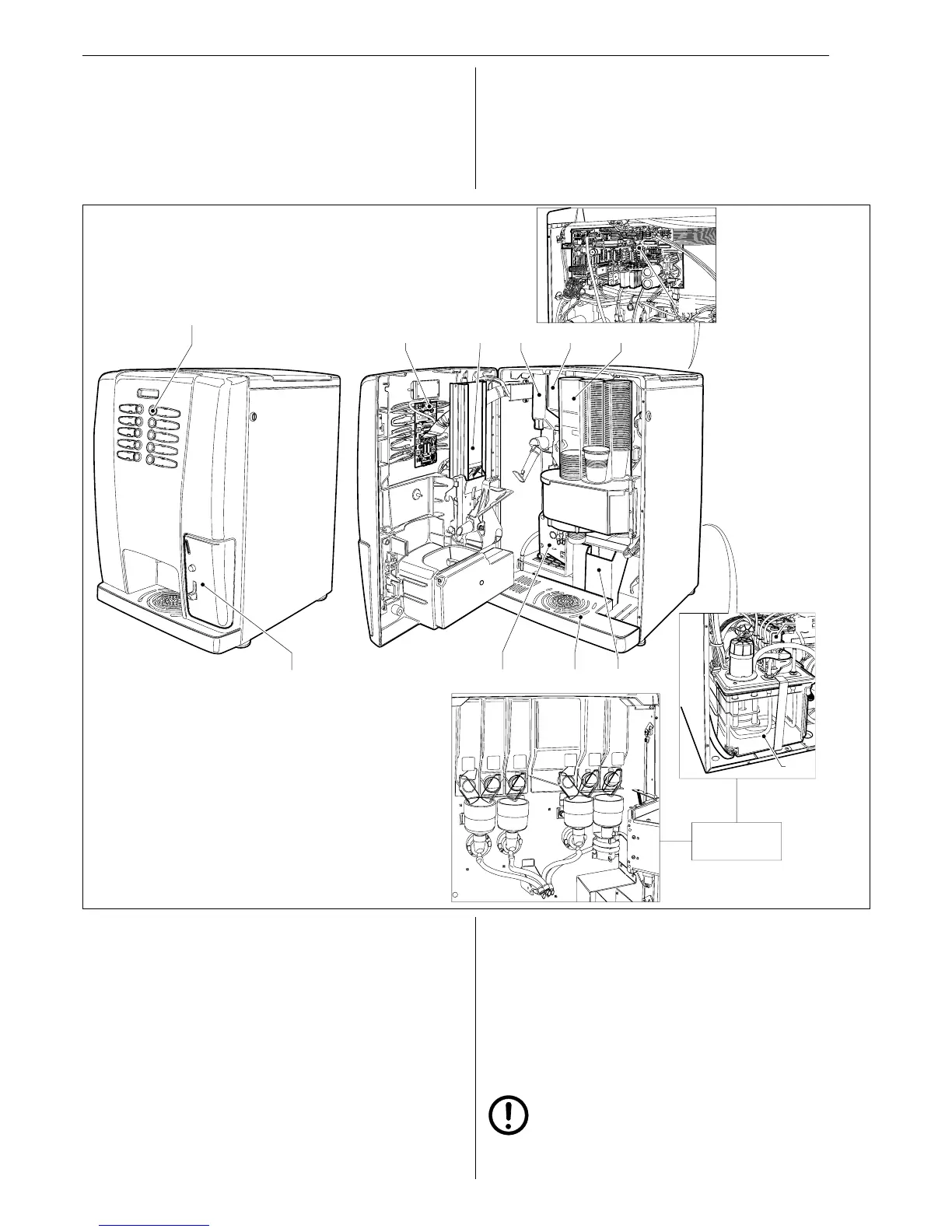

Fig. 3.1
3.0 GENERAL TECHNICAL DESCRIPTIONS
3.1 Machine description (Fig.3.1)
1 Push button panel group
2 Push button panel board
3 Blade distributor group
4 Sugar dispenser group
5 Coffee grinder group
6 Cup dispenser
7 Coin-acceptor group
8 Coffee group
9 Liquid ground collecting tank
10 Coffee ground collecting tank
11 Electronics board (Master)
12 Solenoid valve group
13 Instant product boiler group
3.3 Models
The following terminology is used so as to distinguish the various
models of automatic distributors:
IRIS E (version with espresso coffee and instant beverages)
IRIS I (version with instant beverages)
The manual is compiled for the most complete model:
it is therefore possible, to find descriptions or explanations
not related to your machine.
3.2 Foreseen use
The distributor is exclusively for the dispensing of drinks, prepared
mixing food substances with water (by infusion as far as concerns
coffee).
For this purpose use products declared as suitable by the
manufacturer for automatic distribution in open containers.
The drinks are made in specific plastic cups automatically dispensed
by the machine.
Where foreseen, also the spoon for mixing the sugar is dispensed.
The drinks must be consumed immediately and in no case are to
be kept for subsequent consumption.
