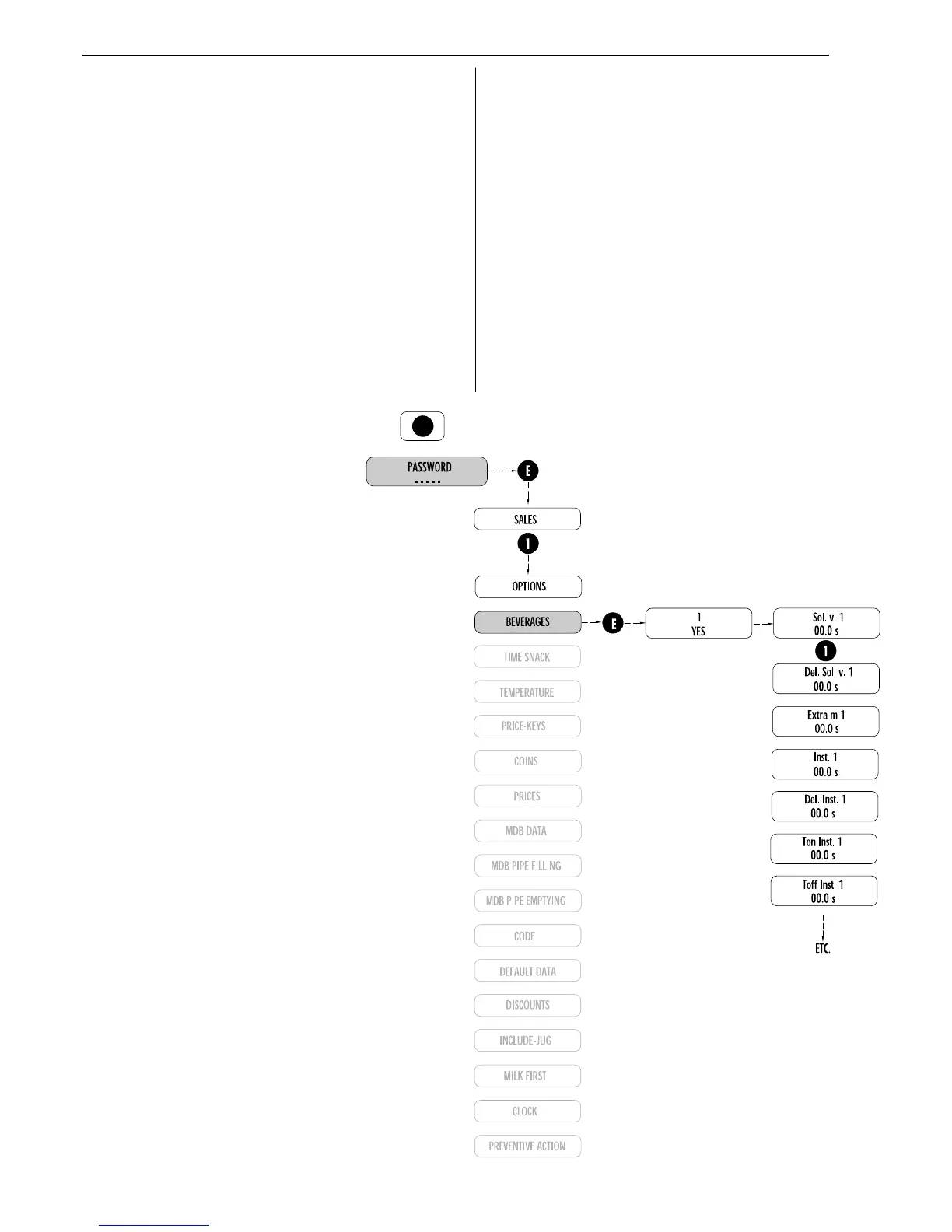

Fig. 7.6
7.2.3 BEVERAGES
Instant version (Fig. 7.6)
The beverage menu structure is repeated according to the number
of drinks, so that the same structure will be repeated for a single
drink indicating an x instead of the number of drinks, so that it is
sufficient to replace x with the corresponding drink number.
Yes/No enables drink
Yes/No enables spoon (only with conveyor option YES)
Sol.v.1 00.0 s quantity of water for instant drink 1,
[00.0 s  25.5 s]
Del.Sol.v.1 00.0 s water dose delay for instant drink 1,
[00.0 s  25.5 s]
Extra m 1 00.0 s mixer extra time 1, [00.0 s  25.5 s] (only
with conveyor option NO)
Inst.1 00.0 s dose for instant drink 1, [00.0 s  25.5 s]
(only with conveyor option NO)
Del.Inst.1 00.0 s dose delay for instant drink 1,
[00.0 s  25.5 s]
(only with conveyor option NO)
The Ton indicates the amount of time for which the gear motor
remains on, while the toff indicates the amount of time which it
remains off. The time sequence is Ton-Toff-Ton-Toff etc for the
entire duration of the relative soluble product.
NOTE: If decaffeinated option is NO, keys 9-13 are not displayed.
Ton Inst.1 00.0 s time on reduction gear
for instant drink 1,[00.0 s  25.0 s]
(only with conveyor option NO)
Toff Inst.1 00.0 s time off- reduction gear
for instant drink 1, [00.0 s  25.0 s]
(only with conveyor option NO)
Sol.v.2 00.0 s quantity of water for instant drinks 2 and 3,
[00.0 s  25.5 s]
Del.sol.v.2 00.0 s water dose delay for instant drinks 2 and 3,
[00.0 s  25.5 s]
Extra m 2 00.0 s mixer extra time 2, [00.0 s  25.5 s]
Inst.2 00.0 s dose for instant drink 2, [00.0 s  25.5 s]
(only with conveyor option NO)
Del.Inst.2 00.0 s dose delay for instant drink 2,
[00.0 s  25.5 s]
(only with conveyor option NO)
Ton Inst.2 00.0 s time on reduction gear for instant drink 2,
[00.0 s  25.0 s]
(only with conveyor option NO)
Toff Inst.2 00.0 s time off- reduction gear for instant drink 2,
[00.0 s  25.0 s]
(only with conveyor option NO)
Inst.3 00.0 s dose for instant drink 3, [00.0 s  25.5 s]
Del.Inst.3 00.0 s dose delay for instant drink 3,
[00.0 s  25.5 s]
Ton Inst.3 00.0 s time on reduction gear for instant drink 3,
[00.0 s  25.0 s]
Toff Inst.3 00.0 s time off- reduction gear for instant drink 3,
[00.0 s  25.0 s]
Sol.v.3 00.0 s quantity of water for instant drinks 4 and 5,
[00.0 s  25.5 s]
Del.Inst.3 00.0 s water dose delay for instant drinks 4 and 5,
[00.0 s  25.5 s]
Extra m 3 00.0 s mixer extra time 3, [00.0 s  25.5 s]
Inst.4 00.0 s dose for instant drink 4, [00.0 s  25.5 s]
Del.Inst.4 00.0 s dose delay for instant drink 4,
[00.0 s  25.5 s]
Ton Inst.4 00.0 s time on reduction gear for instant drink 4,
[00.0 s  25.0 s]
Toff Inst.4 00.0 s time off- reduction gear for instant drink 4,
[00.0 s  25.0 s]
Inst.5 00.0 s dose for instant drink 5, [00.0 s  25.5 s]
Del.Inst.5 00.0 s dose delay for instant drink 5,
[00.0 s  25.5 s]
Ton Inst.5 00.0 s time on reduction gear for instant drink 5,
[00.0 s  25.0 s]
Toff Inst.5 00.0 s time off- reduction gear for instant drink 5,
[00.0 s  25.0 s]
Sol.v.4 00.0 s water dose for instant drink 6, [00.0 s  25.5 s]
Del.Sol.V.4 00.0 s water dose delay for instant drink 6,
[00.0 s  25.5 s]
Extra m 4 00.0 s mixer extra time 4, [00.0 s  25.5 s]
(only with conveyor option YES)
Inst.6 00.0 s dose for instant drink 6, [00.0 s  25.5 s]
Del.Inst.6 00.0 s dose delay for instant drink 6, [00.0 s  25.5 s]
Ton Inst.6 00.0 s time on reduction gear for instant drink 6,
[00.0 s  25.0 s]
Toff Inst.6 00.0 s time off- reduction gear for instant drink 6,
[00.0 s  25.0 s]
Sugar 00.0 s sugar time, [00.0 s  25.5 s]
(only with conveyor option Yes)
