Instant version:
● Key 1 : Mixer 1 washing. On pressing this key the solenoid
valve 1 is operated and the pump and after 1" the mixer 1 with
the equivalent of 100 cc of water, after which there is a 6" wait
period. During which time the washing message is displayed
and on line 2 the wording Message wait. At the end, exit from
the washing condition and return to the maintenance or alarm
scrolling (if any) status.
● Key 2 : Mixer 3 washing. On pressing this key the solenoid
valve 3 is operated and the pump and after 1" the mixer 3 with
the equivalent of 100 cc of water, after which there is a 6" wait
period. During which time the washing message is displayed
and on line 2 the wording Message wait. At the end of which
we escape from the washing condition and return to
maintenance state.
l Key 3 : Cup release
● Key 4: The total number of non-cancellable entries are
displayed for a period of 2 seconds after which we return to
maintenance state.
● Key 5 : Mixer 2 washing. On pressing this key the solenoid
valve 2 is operated and the pump and after 1" the mixer 2 with
the equivalent of 100 cc of water, after which there is a 6" wait
period. During which time the washing message is displayed
and on line 2 the wording Message wait. At the end of which
we escape from the washing condition and return to
maintenance state.
● Key 6 : Washing. On pressing this key the solenoid valve
4 is operated and the pump and after 1" the mixer 4 with the
equivalent of 100 cc of water, after which there is a 6" wait
period. During which time the washing message is displayed
and on line 2 the wording Message wait. At the end of which
we escape from the washing condition and return to
maintenance state.
● Key 7 : Translator movement, at every key pressing, the
translator is activated and moves one position forward (pos.1→
pos.2→ pos.1) with conveyor option NO, (pos. 1→ pos.2→
pos.3→ pos.1) with conveyor option YES.
● Key 8: Testing of the water of a selection. On line 2
the wording Water test appears and the machine awaits
selection. Selection will be made by placing all the solubles at
zero, and at the end of the delivery operation the machine
escapes from its testing state and return to its maintenance
state. To return to maintenance state without making any
selection, simply press key P9.
● Key 9: Complete testing of a selection. After pressing
this key on line 2 the word TEST appears and the machine
awaits a selection, at the end of the delivery function the
machine escapes from its testing condition and returns to a
maintenance condition. To return to the maintenance state,
without any selection, simply press key P9.
● Key 10 Alarm reset. All alarms are set to zero and the
diagnosis of the group and translator is carried out. Line 2
shows the Reset message for 2 seconds.
● Push button 11: not used.
● Push button 12: Return to normal status or exit from test or
water test.
● Push button 13: Translator movement only with conveyor
option YES
Washing
Key 13 installed on the component side of the keyboard card
(Fig.8.1) carries out the consecutive washing of the coffee group
(group rotation), of the milk/chocolate solenoid valve and relevant
blender, and of the tea solenoid valve and relevant blender.
This key is active only when the machine is in normal status and
not during maintenance or programming.

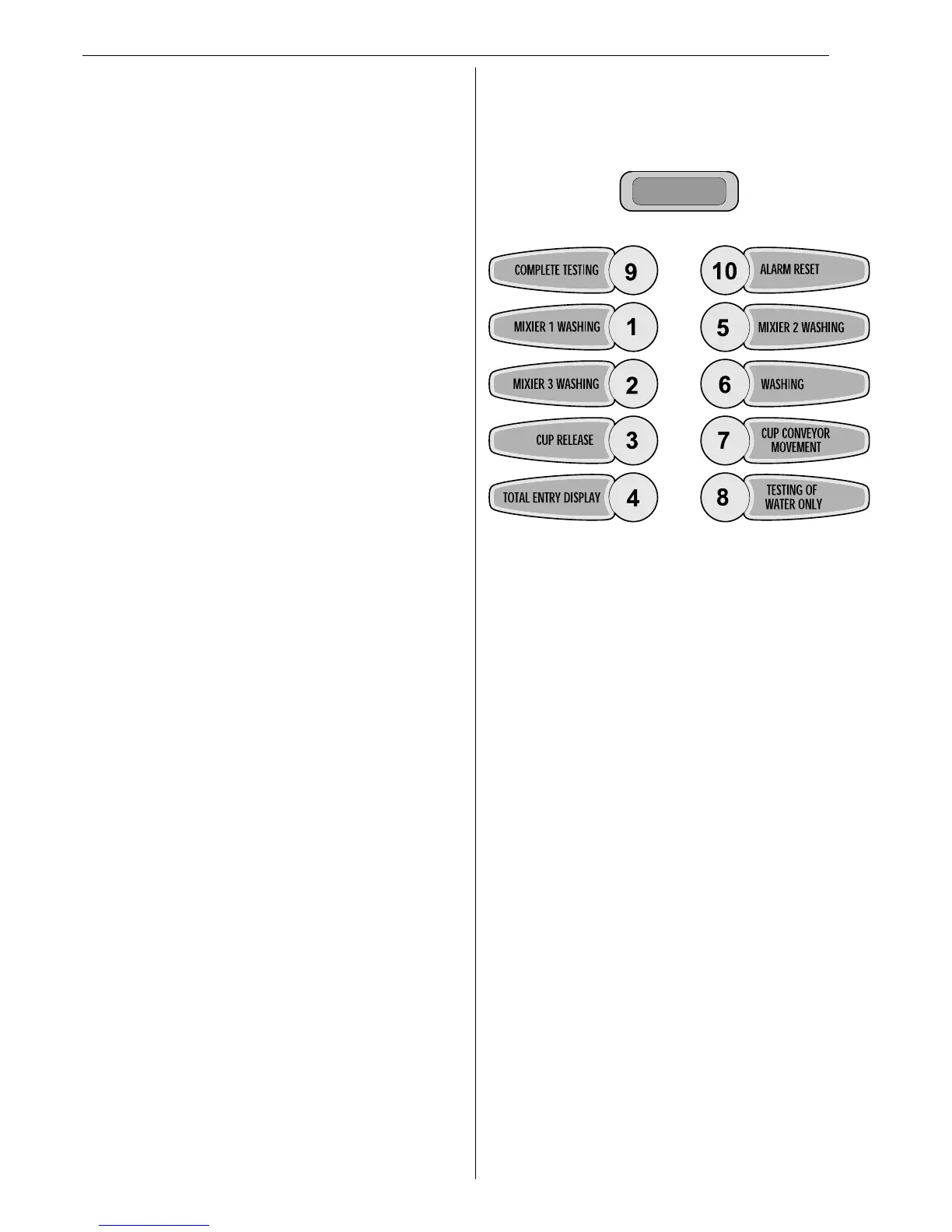

Maintenance panel (instant version)
