BIFFI F01-2000 ELECTRIC ACTUATOR
INSTRUCTION AND OPERATING MANUAL
The amount of data to be viewed is large and
the local display can only visualize one datum
at a time. To use this function we suggest to
utilize the features available with PDA’s and
PC through Bluetooth™ wireless connection.

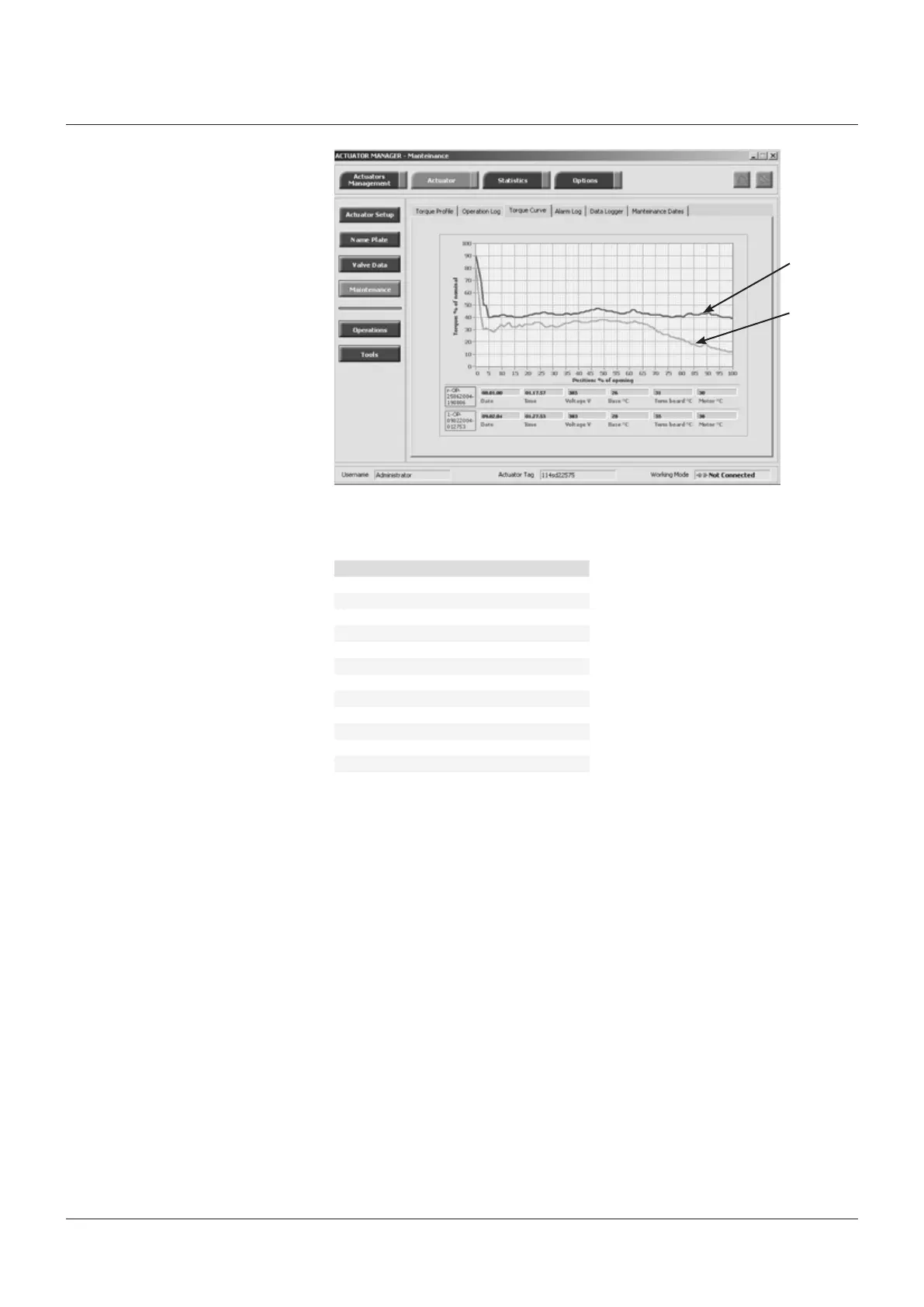

The figure below shows an example of graph
available on PDA or PC screen, showing the
reference opening torque curve and the latest
opening torque curve.
Reference
torque curve
Latest torque
curve
View procedure
• Move the local selector to OFF and then
simultaneously press OPEN and STOP. Select
the language according to the instructions
(see “Entering the view mode”). When the
message displayed is “VIEW MODE OK?”
press YES. Press NO to scroll the list of
available menus and press YES to select the
Maintenance menu.
• Press NO to scroll the list of routines and
press YES to select torque curve.
• Press NO to scroll the list of available curves
(from 1 to 5 and reference). The curve 1 is the
latest and the curve 5 is the oldest. Press YES
to select.
• Press YES to select the opening or closing
curve. Press NO to exit.
• Press YES to scroll the list of values. Press
NO to exit.
10�4�4 Operation log
The operation log consists of different counters
and routines that provide information to assist
in the maintenance program. The data are
grouped into 2 families: general and recent
data. The general data log collects data from
“test date” to “present date”. The test date is
set in house, can be viewed in the “nameplate”
menu but cannot be changed. The recent data
log collects data from the last “clear recent
data log” date to “present date”.
Command “clear recent data log” is available
in the SET-UP MENU, Maintenance, chapter 7.
This command clears the content of the recent
data log and resets the counters to 0. The old
data are lost.
The main differences between “general” and
“recent” data log are the following:
- The general data log gives information
relevant to the full life of the actuator, starting
from the manufacturing date.
- In the recent data log the same data
are collected starting from a date set by
the user. The date may be viewed in the
MAINTENANCE DATE paragraph.
View procedure
• Move the local selector to OFF and then
simultaneously press OPEN and STOP. Select
the language according to the instructions
(see “Entering the view mode”). When the
message displayed is “VIEW MODE OK?”
press YES. Press NO to scroll the list of
available menus and press YES to select the
Maintenance menu.
• Press NO to scroll the list of available
routines and press YES to select operation
log.
• Press YES to select general data or press NO
to skip to recent data.
• Press YES to scroll the list of values.
• Press YES to view the recent data log or press
NO to exit.
• Press YES to scroll the list of values.
General data Recent data log
Opening time
Closing time
Contactor cycles Contactor cycles
Motor run time Motor run time
No power time No power time
Utilisation rate Utilisation rate
Temperature min Temperature min
Temperature max Temperature max
Term temp min Term temp min
Term temp max Term temp max
Motor temp max Motor temp max
Thermostat alarms Thermostat alarms
Torque alarms Torque alarms
Below is the list of data collected by the general
and recent data log.
