F02 Quarter-turn Electric Actuators
instruction and operating manual

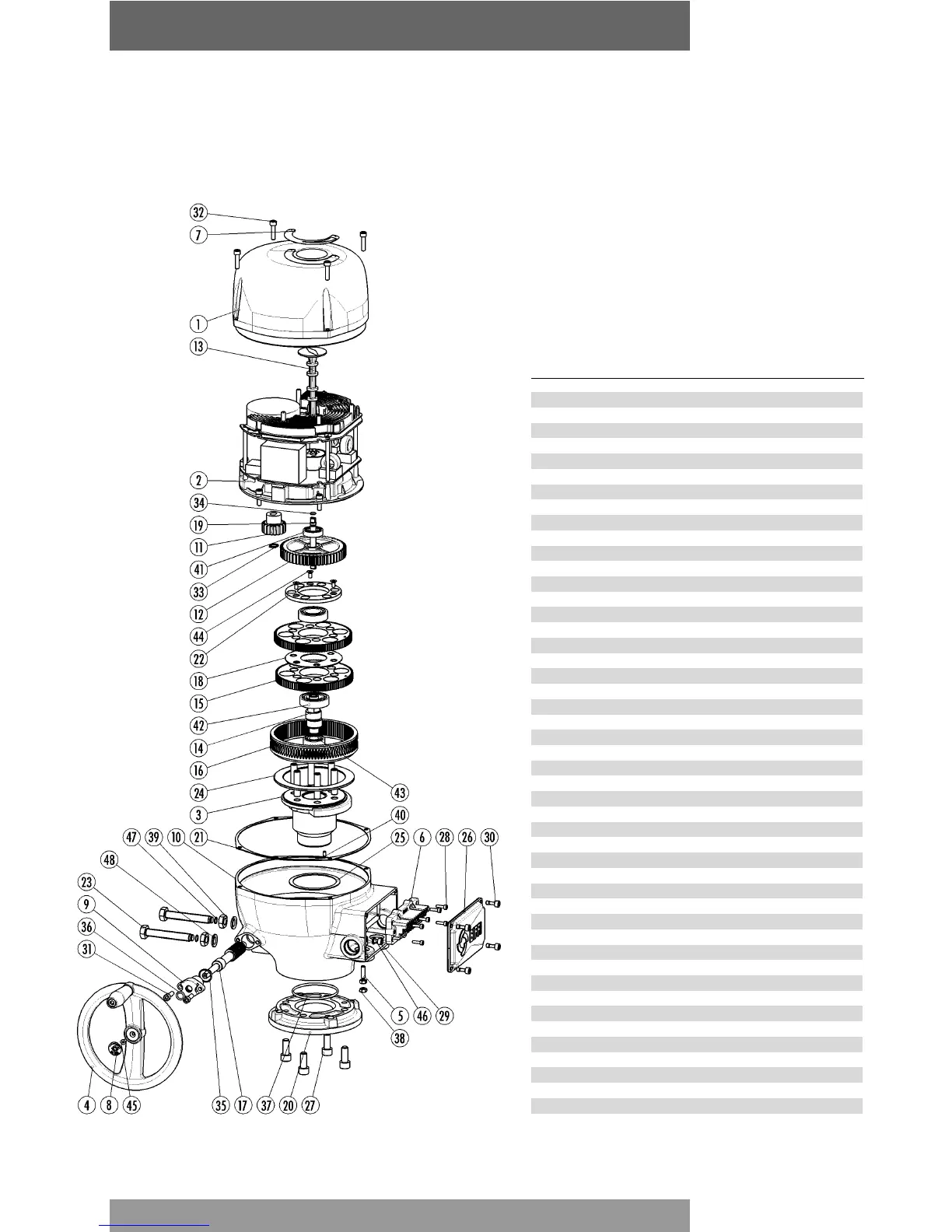

F02 MODEL 250
GENERAL ASSEMBLY
Pos. Description Q.ty
1 Cover assembly 1
2 Drive and control assembly 1
3 Output drive assembly 1
4 Handwheel 1
5 Earth stud 1
6 Erminal block 1
7 Position label 1
8 Plug 1
9 Worm shaft flange 1
10 Housing 1
11 Motor pinion 1
12 Wheel 1
13 Indicator 1
14 Eccentric 1
15 Planocentric gear 2
16 Fixed annulus 1
17 Manual worm shaft 1
18 Spacer 1
19 Indicator shaft 1
20 Base plate ISO 5211 F07-F10-F12 1
21 Cover gasket 1 •
22 Ring for pins allignement 1
23 Stopper 2
24 Ring 1
25 Sliding ring 1
26 Terminal block cover 1
27 HSHC screw UNI5931- M10x25 4
28 HSHC screw UNI5931- M4x14 7
29 ESH screw UNI5931 - M6x8 1
30 Anti loosening screw M6x16 4
31 HSHC screw UNI5931- M6x20 2
32 HSHC screw UNI5931- M6x25 4
33 Snap ring for shaft d.12 1
34 O-ring DI=6.07/w=1.78 1 •
35 O-ring DI=18.77/w=1.78 1 •
36 O-ring DI=10.77/W=2.62 1 •
37 O-ring DI=69.52/W=2.62 1 •
38 Nut UNI5588-M6 2
39 Nut UNI5589-M12 2
40 Dowel pin UNI-En 22338 M4x8 type B 1
41 Ball bearing type 16002 1
42 Ball bearing type 6005-LT 2
43 Ball bearing type 6202 1
44 HSSC screw UNI5933 M5x10 3
45 HSSC screw UNI5933 M4x10 1
46 Anti-loosening washer UNI 8842-J6 1
47 Ring RW 10 UNI7433 2
48 Seal washer 12.3 2
• Recommended
