F02 Quarter-turn Electric Actuators
instruction and operating manual
F02 MODEL 1000

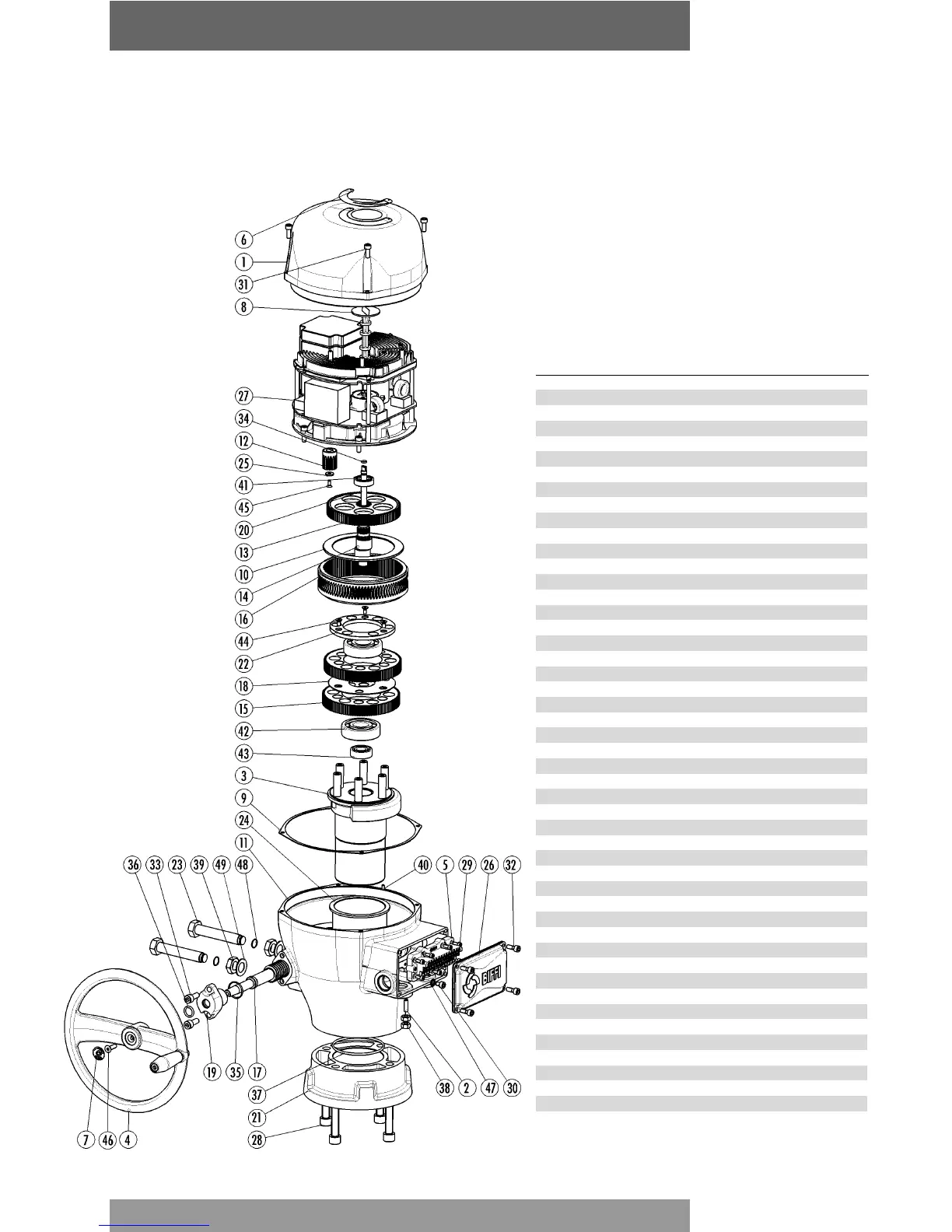

GENERAL ASSEMBLY
Pos. Description Q.ty
1 Cover assembly 1
2 Earth stud 1
3 Output drive assembly 1
4 Handwheel assebly 1
5 Terminal block 1
6 Position label 1
7 Plug 1
8 Indicator 1
9 Cover gasket 1 •
10 Ring 1
11 Housing 1
12 Motor pinion 1
13 Wheel 1
14 Eccentric 1
15 Planocentric gear 2
16 Fixed annulus 1
17 Manual worm shaft 1
18 Spacer 1
19 Worm shaft flange 1
20 Indicator shaft 1
21 Base plate F10-F14 EN ISO 5211 1
22 Ring for pins allignement 1
23 Stopper 2
24 Bushing 1
25 Washer 1
26 Terminal block cover 1
27 Drive and control assembly 1
28 HSHC screw UNI5931- M12x65 4
29 HSHC screw UNI5931- M4x10 7
30 ESH screw UNI5931 - M6x8 1
31 HSHC screw UNI5931- M6x16 4
32 HSHC screw UNI5931- M6x16 4
33 HSHC screw UNI5931- M8x20 2
34 O-ring DI=6.07/W=1.78 1 •
35 O-ring DI=25.12/W=1.78 1 •
36 O-ring DI=13.94/W=2.62 1 •
37 O-ring DI=82.22/W=2.62 1 •
38 Nut UNI 5588-M8 2
39 Nut UNI5589-M16 2
40 Dowel pin UNI-EN 22338 M4x8 type B 1
41 Ball bearing type 16002 1
42 Ball bearing type 6305 2
44 HSSC screw UNI5933 M5x10 3
45 HSSC screw UNI5933 M4x10 1
46 HSSC screw UNI5933 M6x20 1
47 Anti-loosening washer UNI 8842-J6 1
48 Ring RW 14 UNI7433 2
49 Seal washer 16.3 2
• Recommended
