F02 Quarter-turn Electric Actuators
instruction and operating manual

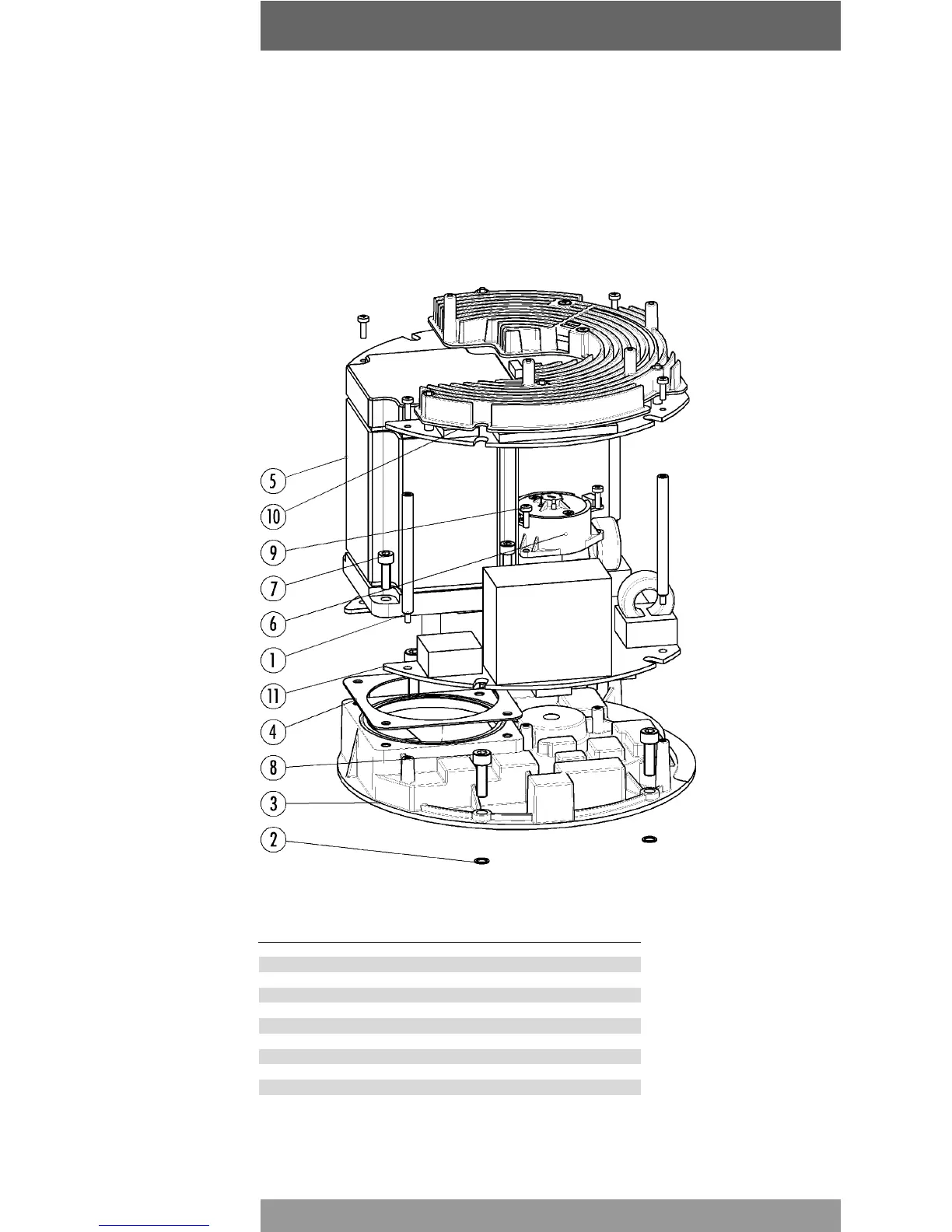

DRIVE AND CONTROL UNIT
Pos. Description Q.ty
1 Spacer 4
2 Washer 4
3 Motor support plate 1
4 Motor gasket 1
5 Motor type SK3909 HS200 3448 0550 AX04 1
6 Sensor assembly 1
7 HSHC screw UNI5931- M5x18 4
8 HSHC screw UNI5931- M6x20 4
9 Screw pz type M3x10 UNI 7687 7
10 Control/drive card assembly 1
11 Power supply card 500W max 1
• Recommended
