Section 6: Conguration Parameters
Conguration Parameters
6.2 “Act.Mode”and “SOVs Qty”

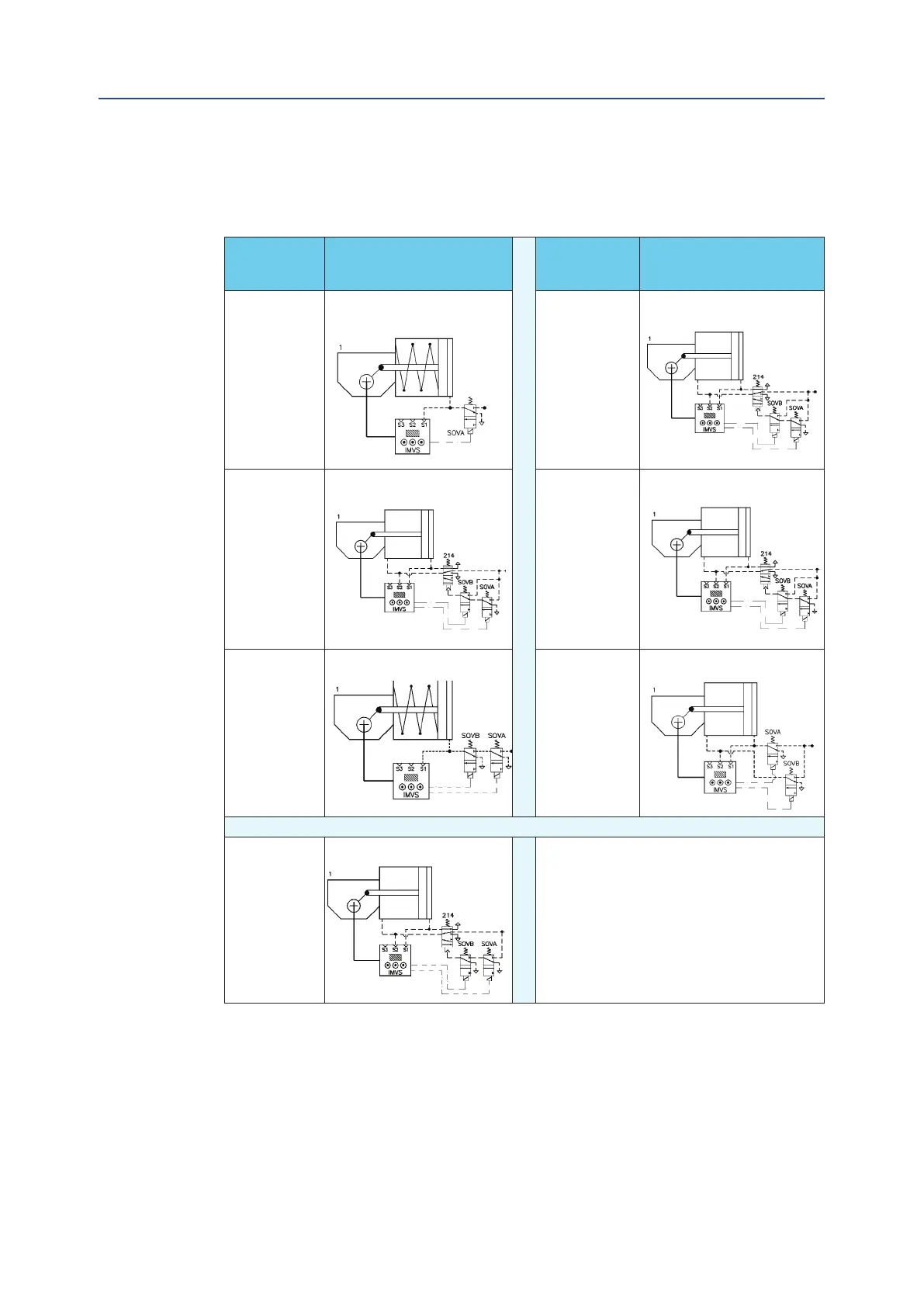

Table 7.
“Act. Mode”
“SOVs Qty”
“PST Ser. SOVs”
Actuator Type
“Act. Mode”
“SOVs Qty”
“PST Ser. SOVs”
Actuator Type
“Single”
“Simplex”
“One”
Single Acting with one SOV.
“Double-S”
“Simplex”
“One”
Double Acting with one SOV.
“Single”
“Series”
“One” or Both”
Or
“Single”
“Simplex”
“Both”
Single Acting with two SOVs in series.
“Double-S”
“Series”
“One” or Both”
Or
“Double-S”
“Simplex”
“Both”
Double Acting with two SOVs in series.
“Single”
“Parallel”
NA
Single Acting with two SOVs in parallel.
“Double-S”
“Parallel”
NA
Double Acting with two SOVs in parallel.
“Double”
Do not care
NA
Double Acting with dual SOVs.
59
