Section 10: Installation – Start-Up
Installation – Start-Up

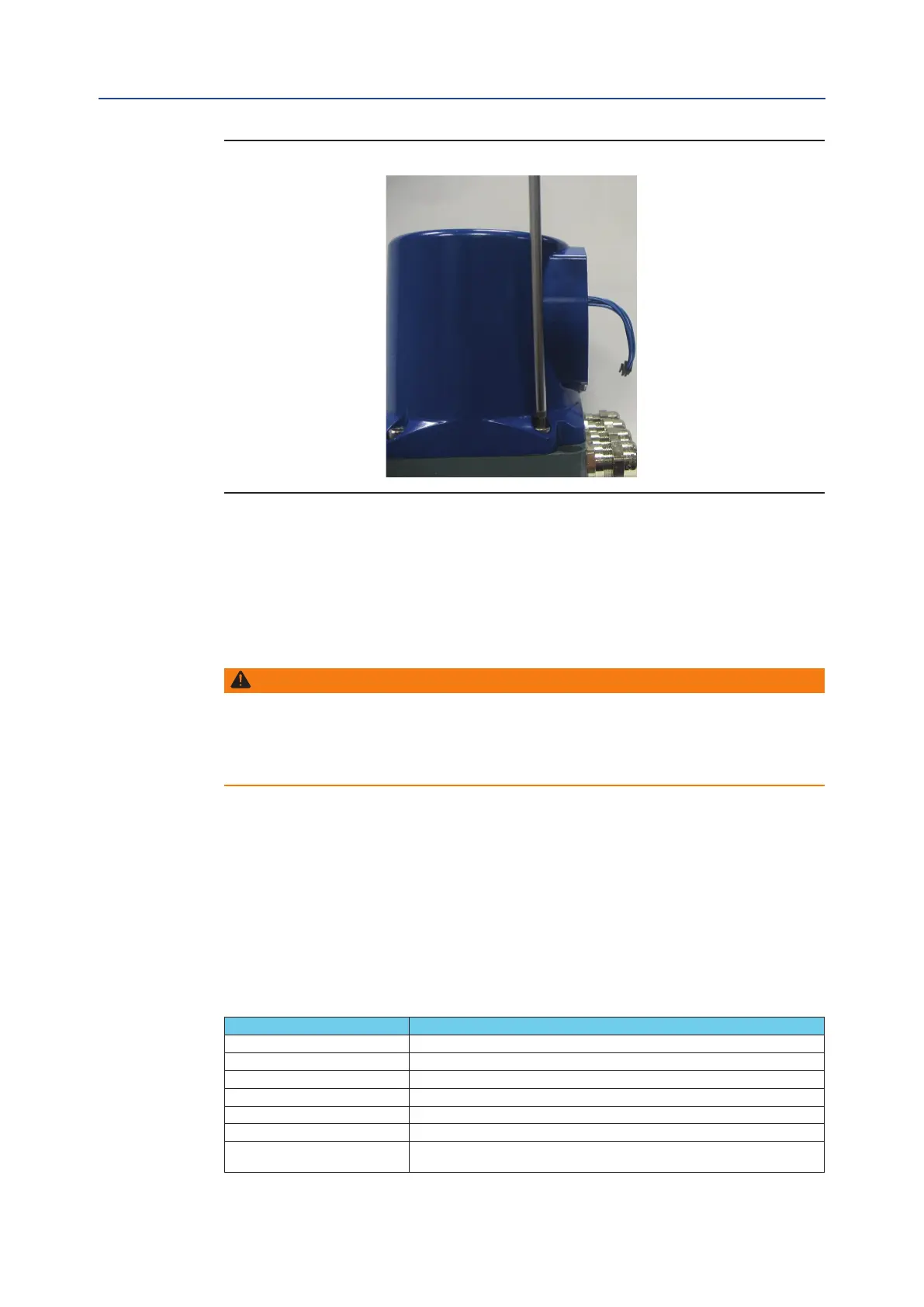

Figure 39
4. Using a 6 mm Allen key, loosen the four screws fixing the cover and remove it. At the end of
wiring connections replace the cover and fix the 4 screws with a tightening torque from 15 to 20 Nm.
10.6.3 Unused entries
WARNING
Replace the plastic plugs, install present at the unused entries certified explosion-proof
plugs and block with a thread sealant to guarantee the tightening. Not performing the
above recommendation will invalidate the safety protection in case of presence of
hazardous atmospheres.
10.6.4 Cables requirements – EMC protection
The table below summarizes the specifications of the cables, for connecting with the IMVS2000v2.
Particularly, it indicates if a cable needs to be armoured or shielded.
“Shielded” must be considered as a stricter condition than “Armoured."
”It is possible to use a shielded cable instead of a required armoured cable, but it is not possible to use
an armoured cable instead of a required shielded cable.
Table 13.
CONNECTION TYPE CABLES REQUIREMENT (Armoured or Shielded)
Main Supply None
SISA – SISB Max Length 3 mt.
SOV A – SOV B None
Digital Input None
Digital Output None
MODBUS Shielded (see [3] for details).
HART – 4-20mA Analogue Output
Shielded. Maximum Load (cable + termination resistance) = 300 ohm.
See [2] for details
