Installation, Operation and Maintenance Manual
September 2019
MAN720_IMVS2000v2_IOM Rev. 6
Section 10: Installation – Start-Up
Installation – Start-Up
10.3 Preliminary operations
1. Setting the actuator position
- in case of single acting actuator (spring return), set the actuator at the end of the stroke
(closed or open position) by removing the supply pressure;
- in case of double acting actuator, set the actuator at the end of the stroke
(closed or open position).
2. Move the IMVS2000v2 device to the actuator’s corresponding position, set in step 1), by
rotating the position shaft (please refer to the picture below).

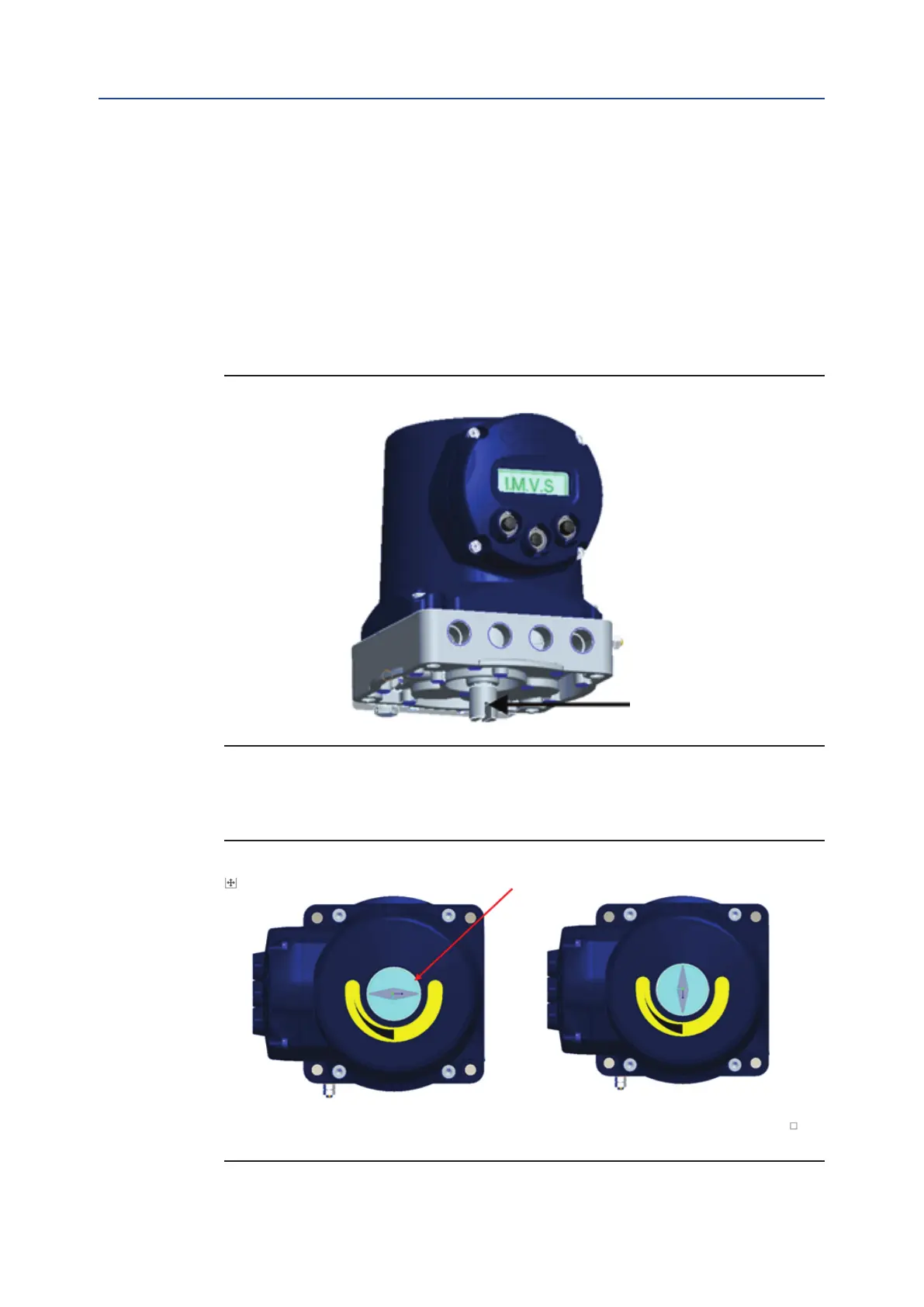

Figure 28
The IMVS2000v2 position is shown by the orientation of the indicator arrow in the upper window
(in the pictures below are shown the CLOSED and OPEN position).
Figure 29
STANDARD INDICATOR
IMVS2000v2 in OPEN POSITIONIMVS2000v2 in CLOSED POSITION
89
