BIFFI IMVS2000v2 - Mounting Imvs2000 V2 Onto ALGA;ALGAS Type Actuators

Installation, Operation and Maintenance Manual
September 2019
MAN720_IMVS2000v2_IOM Rev. 6
Section 10: Installation – Start-Up
Installation – Start-Up
10.4.2 Mounting IMVS2000v2 onto ALGA/ALGAS
type actuators

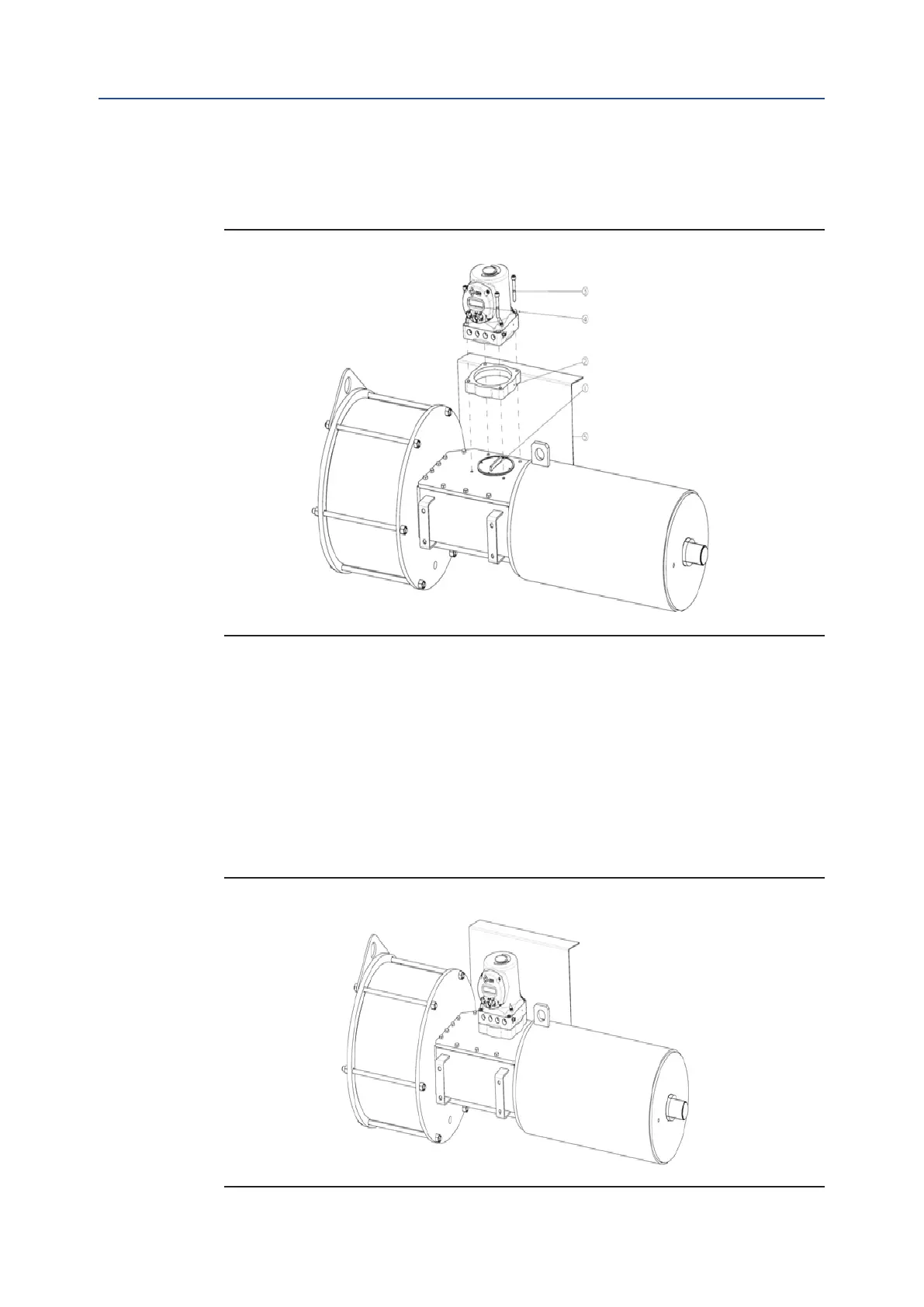

Figure 32
Referring to the picture above, perform the following steps:
• Put the spacer (2) onto the actuator carter;
• Assemble the IMVS2000v2 device onto the spacer, checking carefully that the female part
of the IMVS2000v2 position shaft is mounted correctly onto the male part of actuator joint
(1). The IMVS2000v2 device must be oriented as shown in the picture: the IMVS2000v2
display (4) is opposite to the actuator control panel (5); and
• Tighten the 4 screws (3) in order to fix the IMVS IMVS2000v2 device and the spacer on to
the actuator.
The picture below shows the IMVS2000v2 device assembled onto the actuator.
Figure 33
